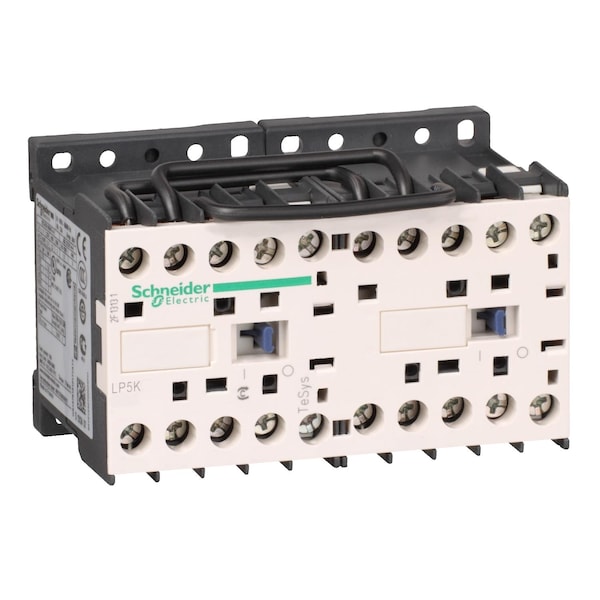

Contactor magnético IEC, 3 polos, 24 V CD, 12 A.
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 12 A |
| Action | Reversing |
| Full Load Amps-Resistive | 20 A |
| Coil Volts | 24 V DC |
| Number of Poles | 3 |
| Height | 58 mm |
| Width | 90 mm |
| Depth | 57 mm |
| Aux. Contact Configuration | 1NO |
| Standards | EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1 |
| Series | LP5K |
| Application | Motor Control, Resistive Load |
| Features | Built-In Bi-Directional Peak Limiting Diode Suppressor; Preassembled with Reversing Power Busbar |
| Mechanical Robustness | shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27, shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27, vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6, vibrations contactor opened2 Gn, 5...300 Hz IEC 60068-2-6, shocks contactor opened, on X axis10 Gn for 11 ms IEC 60068-2-27, shocks contactor opened, on Y axis6 Gn for 11 ms IEC 60068-2-27, shocks contactor closed, on X axis15 Gn for 11 ms IEC 60068-2-27, shocks contactor closed, on Y axis10 Gn for 11 ms IEC 60068-2-27 |
| [Ui] Rated Insulation Voltage | power circuit 600 V UL 508, power circuit 690 V IEC 60947-4-1, signalling circuit 690 V IEC 60947-4-1, signalling circuit 690 V IEC 60947-5-1, signalling circuit 600 V UL 508, power circuit 600 V CSA C22.2 No 14, signalling circuit 600 V CSA C22.2 No 14 |
| Minimum Switching Current | 5 mA (for signalling circuit) |
| Coil Technology | Built-in bidirectional peak limiting diode suppressor |
| [Ie] Rated Operational Current | 20 A (at <50°C) at <= 440 V AC AC-1 for power circuit, 16 A (at <70°C) at 690 V AC AC-1 for power circuit, 12 A at <= 440 V AC AC-3 for power circuit, 12 A at <= 440 V AC AC-3e for power circuit |
| Motor Power Kw | 4 kW 480 V AC 50/60 Hz, 4 kW 500...600 V AC 50/60 Hz, 4 kW 660...690 V AC 50/60 Hz, 3 kW 220...230 V AC 50/60 Hz, 5.5 kW 380...415 V AC 50/60 Hz, 5.5 kW 440 V AC 50/60 Hz |
| Operating Time | 10...20 ms coil de-energisation and NO opening, 30...40 ms coil energisation and NO closing |
| Ambient Air Temperature For Storage | -50-80°C |
| Contactor Application | Motor control Resistive load |
| Pole Contact Composition | 3 NO |
| Ip Degree of Protection | IP20 VDE 0106 |
| Mechanical Durability | 5 Mcycles |
| Utilisation Category | AC-4, AC-1, AC-3, AC-3e |
| Flame Retardance | V1 conforming to UL 94, requirement 2 conforming to NF F 16-101, requirement 2 conforming to NF F 16-102 |
| Electrical Durability | 1.3 Mcycles 12 A AC-3 <= 440 V, 1.3 Mcycles 12 A AC-3e <= 440 V, 0.3 Mcycles 20 A AC-1 <= 690 V, 0.02 Mcycles 72 A AC-4 <= 440 V |
| Maximum Operating Rate | 3600 cyc/h |
| Hold-In Power Consumption In W | 1.8-1.8 W 20°C |
| Operating Altitude | 6561.68 ft (2000 m) without derating |
| Product or Component Type | reversing contactor |
| Mounting Support | Rail, Plate |
| Associated Fuse Rating | 25 A gG at <= 440 V for power circuit, 25 A aM for power circuit, 10 A gG for signalling circuit conforming to IEC 60947, 10 A gG for signalling circuit conforming to VDE 0660 |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV |
| Ambient Air Temperature For Operation | -25-50°C |
| Device Short Name | LP5K |
| Connections - Terminals | screw clamp terminals 1 1.5-4 mm²solid, screw clamp terminals 1 0.75-4 mm²flexible without cable end, screw clamp terminals 1 0.34-2.5 mm²flexible with cable end, screw clamp terminals 2 1.5-4 mm²solid, screw clamp terminals 2 0.75-4 mm²flexible without cable end, screw clamp terminals 2 0.34-1.5 mm²flexible with cable end |
| Tightening Torque | 0.8-1.3 N.m screw clamp terminals Philips No 2, 0.8-1.3 N.m screw clamp terminals flat Ø 6 mm, 0.8-1.3 N.m screw clamp terminals pozidriv No 2 |
| [Icw] Rated Short-Time Withstand Current | 115 A 50°C - 1 s for power circuit, 105 A 50°C - 5 s for power circuit, 100 A 50°C - 10 s for power circuit, 75 A 50°C - 30 s for power circuit, 55 A 50°C - 1 min for power circuit, 50 A 50°C - 3 min for power circuit, 80 A - 1 s for signalling circuit, 90 A - 500 ms for signalling circuit, 110 A - 100 ms for signalling circuit, 25 A 50°C - >= 15 min for power circuit |
| [Ue] Rated Operational Voltage | power circuit 690 V AC 50/60 Hz, signalling circuit <= 690 V AC 50/60 Hz |
| Product Name | TeSys K |
| Inrush Power In W | 1.8-1.8 W 20°C |
| Minimum Switching Voltage | 17 V for signalling circuit |
| Non Overlap Distance | 0.5 mm |
| Protective Treatment | TC IEC 60068 TC DIN 50016 |
| Average Impedance | 3 mOhm - Ith 20 A 50 Hz for power circuit |
| Control Circuit Voltage Limits | operational: 0.7...1.30 Uc (at <50°C), drop-out: 0.1...0.7 Uc (at <50°C) |
| Auxiliary Contact Composition | 1 NO |
| Rated Breaking Capacity | 110 A at 440 V conforming to IEC 60947, 80 A at 500 V conforming to IEC 60947, 70 A at 660...690 V conforming to IEC 60947 |
| Insulation Resistance | > 10 MOhm for signalling circuit |
| Device Presentation | Preassembled with reversing power busbar |
| Heat Dissipation | 1.8-1.8 W |
| Device Application | Control |
| Overvoltage Category | III |
| Interlocking Type | Mechanical |
| Range | TeSys |
| Poles Description | 3P |
| Auxiliary Contacts Type | Instantaneous 1 NO |
| [Ith] Conventional Free Air Thermal Current | 20 A (at 50°C) for power circuit, 10 A (at 50°C) for signalling circuit |
| Control Circuit Type | DC low consumption |
| Irms Rated Making Capacity | 110 A AC for signalling circuit conforming to IEC 60947, 144 A AC for power circuit conforming to NF C 63-110, 144 A AC for power circuit conforming to IEC 60947 |
| Watts Loss | 1.8W |
| Thermal Amperage | 20 A (at 50°C Power Circuit), 10 A (at 50°C Signalling Circuit) |
| Rated Voltage | 690V AC |
| Electrical Connection | Screw Clamp Terminals |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Fire Rating | UL 94 V1, NF F 16-101, NF F 16-102 |
| Rated Insulation Volts | 600/690V |
| Max. Operating Watts | 4 kW (at 480V AC 50/60 Hz), 4 kW (at 500 to 600V AC 50/60 Hz), 4 kW (at 660 to 690V AC 50/60 Hz), 3 kW (at 220 to 230V AC 50/60 Hz), 5.5 kW (at 380 to 415VAC 50/60 Hz), 5.5 kW (at 440V AC 50/60 Hz) |
| Environmental Attributes | Mercury Free, Toxic Heavy Metal Free |
| Rated Making Capacity | 110 A (AC Signalling Circuit), 144 A (AC Power Circuit) |
| Impulse Withstand Voltage | 8 kV |
| Operating Speed | 3600 cycles per hr |
| Switching Current | 5 mA (Signalling Circuit) |
| Shock Resistance | 10 G for 11 ms (on Y axis with Contactor Closed), 15 G for 11 ms (on X and Z axis with Contactor Closed), 6 G for 11 ms (on Y axis with Contactor Open), 10 G for 11 ms (on X and Z axis with Contactor Open) |
| Net Weight | 0.49 kg |
| Working Height | 6,561.68 ft |
| Fuse Amps | 25 A (Power Circuit), 10 A (Signalling Circuit) |
| Switching Voltage | 17 V (Signalling Circuit) |
| IP Rating | IP20 |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Rated Short-Time Withstand Current | 115 A (at 50°C for 1 s Power Circuit), 105 A (at 50°C for 5 s Power Circuit), 100 A (at 50°C for 10 s Power Circuit), 75 A (at 50°C for 30 s Power Circuit), 55 A (at 50°C for 1 min Power Circuit), 50 A (at 50°C for 3 min Power Circuit), 80 A (For 1 s Signalling Circuit), 90 A (For 500 ms Signalling Circuit), 110 A (For 100 ms Signalling Circuit), 25 A (at 50°C for 15 min Power Circuit) |
| Impedance | 3 mOhm |
| Mounts On | Plate, Rail |
| Package Quantity | 1 |
