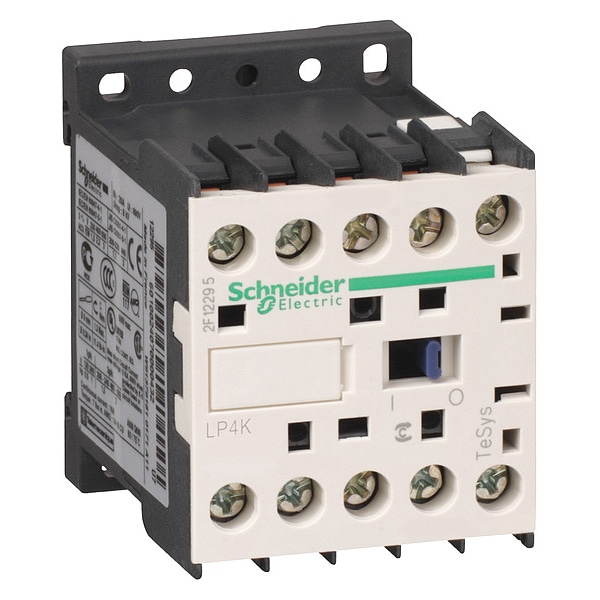

Contactor magnético IEC, 3 polos, 24 V DC, 12 A, Reversión: No.
| Full Load Amps-Inductive | 12 A |
|---|---|
| Item | IEC Magnetic Contactor |
| Full Load Amps-Resistive | 20 A |
| Number of Poles | 3 |
| Coil Volts | 24 V DC |
| Reversing | No |
| Height | 2.28 in |
| Width | 1.77 in |
| Depth | 2.24 in |
| Enclosure NEMA Rating | No Enclosure |
| Aux. Contact Configuration | None |
| Hz | 50/60 |
| Standards | CSA, UKCA, UL Listed |
| Auxiliary Contact Form | 1NC |
| NEMA Size | Not Applicable |
| Frame / Series / Class / Code | TeSys |
| Series | TeSys K |
| Environmental Attributes | Mercury Free, Toxic Heavy Metal Free |
| Mechanical Durability | 30 Mcycles |
| Working Height | 6,561.68 ft |
| Switching Current | 5 mA (Signalling Circuit) |
| Switching Voltage | 17 V (Signalling Circuit) |
| Operating Speed | 3600 cycles per hr |
| Rated Voltage | 690V AC |
| Features | Built-In Bi-Directional Peak Limiting Diode Suppressor |
| Operating Time | 10 to 20 ms (Coil De-Energisation and NO Opening), 30 to 40 ms (Coil Energisation and NO Closing) |
| Rated Making Capacity | 110 A (AC Signalling Circuit), 144 A (AC Power Circuit) |
| Mounts On | Plate, Rail |
| Tightening Torque | 0.8 to 1.3 Nm |
| Net Weight | 0.235 kg |
| Overvoltage Category | CAT III |
| Fuse Amps | 25 A (Power Circuit), 10 A (Signalling Circuit) |
| Impulse Withstand Voltage | 8 kV |
| Thermal Amperage | 20 A (at 50°C Power Circuit), 10 A (at 50°C Signalling Circuit) |
| Impedance | 3 mOhm |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Control Circuit Voltage Limits | Operational: 0.7 to 1.30 Uc (at 50°C), Drop-Out: 0.1 to 0.7 Uc (at 50°C) |
| Application | Motor Control, Resistive Load |
| Rated Breaking Capacity | 110 A @ 440V, 80 A @ 500V, 70 A @ 660 to 690V |
| Rated Insulation Volts | 600/690V |
| Fire Rating | UL 94 V1, NF F 16-101, NF F 16-102 |
| Full Load Current - Inductive | 12 A |
| Mechanical Operating Durability | 30,000,000 |
| Overall Depth | 2.24 in |
| Reversing Capability | Non-Reversing |
| Contactor Style | IEC |
| Number of Auxillary Contacts | 1 |
| Overall Height | 2.28 in |
| Maximum Voltage Rating | 690 V AC |
| NEMA Enclosure Material | Not Applicable |
| Embedded Surge Suppressor | Yes |
| Minimum Operating Temperature | -13 deg F |
| Frequency | 50/60 Hz |
| Terminal Connection Type | Screw Clamp Terminals |
| NEMA Enclosure Rating | No Enclosure |
| Mounting Style | DIN Rail, Plate |
| Coil Voltage | 24V DC |
| Maximum Operating Temperature | 122 deg F |
| Includes Auxiliary Contacts | Yes |
| Number of Normally Open Main Contacts | 3 |
| Full Load Current - Resistive | 20 A |
| Resistance Properties | Insulation Resistant |
| Overall Width | 1.77 in |
| Package Quantity | 1 |
