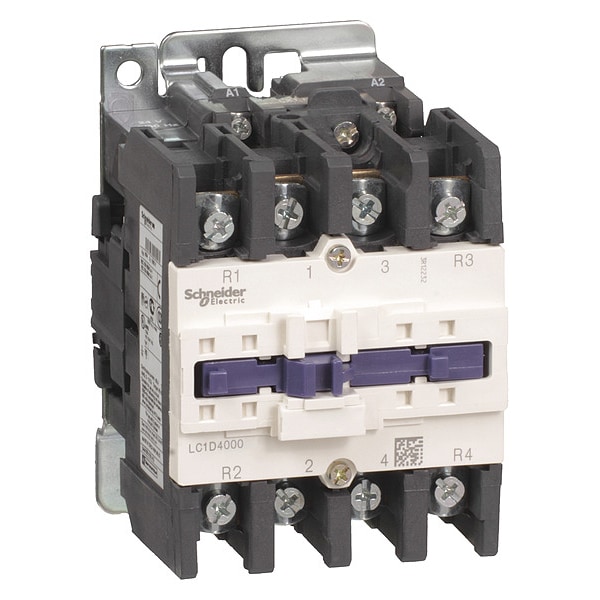

Contacto magnético IEC, 4 polos, 110 V CA, 40 A, Inversión: No.
| Full Load Amps-Inductive | 40 A |
|---|---|
| Item | IEC Magnetic Contactor |
| Full Load Amps-Resistive | 40 A |
| Number of Poles | 4 |
| Coil Volts | 110 V AC |
| Reversing | No |
| Height | 5 in |
| Width | 3.35 in |
| Depth | 4.92 in |
| Enclosure NEMA Rating | No Enclosure |
| Aux. Contact Configuration | 2NO, 2NC |
| Hz | 50/60 |
| Series | TeSys Deca |
| Standards | BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed |
| Frame / Series / Class / Code | TeSys |
| NEMA Size | Not Applicable |
| Inrush VA | 140 VA (at 60 Hz 20°C), 160 VA (at 50 Hz 20°C) |
| Working Height | Up to 9,842.52 ft |
| Mounts On | Plate, Rail |
| Operating Time | 4 to 19 ms (Opening), 12 to 26 ms (Closing) |
| Shock Resistance | 10 G for 11 ms (Contactor Closed), 8 G for 11 ms (Contactor Open) |
| IP Rating | IP20 |
| Rated Breaking Capacity | 800 A @ 440V |
| Rated Short-Time Withstand Current | 320 A (at 40°C for 10 s Power Circuit), 720 A (at 40°C for 1 s Power Circuit), 72 A (at 40°C for 10 min Power Circuit), 165 A (at 40°C for 1 min Power Circuit) |
| Environmental Attributes | Mercury Free, Toxic Heavy Metal Free, Pollution Degree 3 |
| Electrical Connection | Screw Clamp Terminals |
| Tightening Torque | 1.7 Nm (Control Circuit), 5 to 8 Nm (Power Circuit) |
| Application | Resistive Load |
| Mechanical Durability | 6 Mcycles |
| Electrical Durability | 1.4 Mcycles (60 A, AC-1, Less than 440 V) |
| Includes Protective Cover | No |
| Thermal Amperage | 60 A (at 60°C Power Circuit) |
| Fuse Amps | 80 A (Type 1 and 2 Power Circuit) |
| Watts Loss | 4 to 5W |
| Rated Voltage | 690V AC, 300V DC |
| Impedance | 1.5 mOhm |
| Overvoltage Category | CAT III |
| Features | Without Built-In Suppressor Module |
| Rated Making Capacity | 800 A @ 440V (Power Circuit) |
| Rated Insulation Volts | 600/690V |
| Operating Speed | 3600 cycles per hr |
| Fire Rating | UL 94 V1 |
| Max. Temperature | 850°C |
| Net Weight | 1.44 kg |
| Hold VA | 13 VA (at 60 Hz 20°C), 15 VA (at 50 Hz 20°C) |
| Control Circuit Voltage Limits | Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz) |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Impulse Withstand Voltage | 6 kV |
| Mounting Style | DIN Rail, Plate |
| Coil Voltage | 110V AC |
| Resistance Properties | Fire Resistant |
| Maximum Operating Temperature | 140 deg F |
| Embedded Surge Suppressor | No |
| Frequency | 50/60 Hz |
| Contactor Style | IEC |
| Overall Height | 5 in |
| Minimum Operating Temperature | -40 deg F |
| Overall Width | 3.35 in |
| Terminal Connection Type | Screw Clamp Terminals |
| Electrical Operating Durability | 1,400,000 |
| Number of Normally Open Main Contacts | 2 |
| NEMA Enclosure Rating | No Enclosure |
| Full Load Current - Resistive | 40 A |
| Reversing Capability | Non-Reversing |
| Overall Depth | 4.92 in |
| NEMA Enclosure Material | Not Applicable |
| Mechanical Operating Durability | 6,000,000 |
| Maximum Voltage Rating | 690 V AC |
| Full Load Current - Inductive | 40 A |
| Number of Normally Closed Main Contacts | 2 |
| Package Quantity | 1 |
