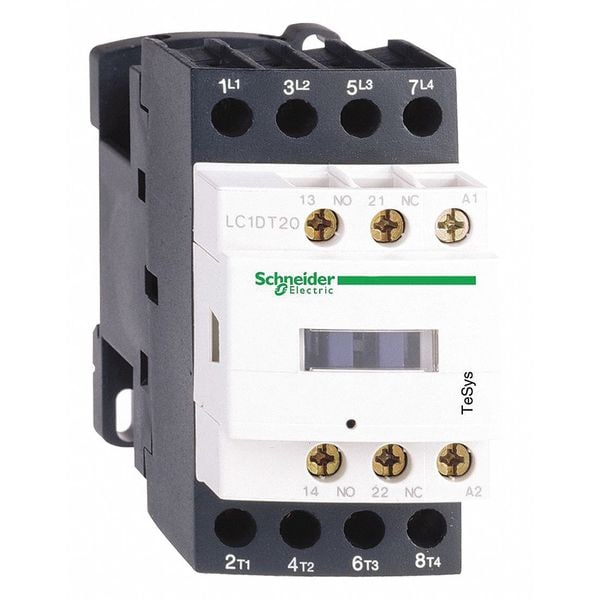

Contacto magnético IEC, 4 polos, 120 V CA, 20 A.
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 20 A |
| Number of Poles | 4 |
| Coil Volts | 120 V AC |
| Height | 85 mm |
| Width | 45 mm |
| Depth | 92 mm |
| Aux. Contact Configuration | 1NO, 1NC |
| Standards | CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, RINA, BV, GL, LROS, DNV, GOST, UL, CSA, CCC, THIEC 60068-2-30 |
| Series | LC1D |
| Overvoltage Category | CAT III |
| Fuse Amps | 10 A (Signalling Circuit), 25 A (Type 1 Power Circuit), 20 A (Type 2 Power Circuit) |
| Control Circuit Voltage Limits | Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz) |
| Features | Without Built-In Suppressor Module |
| Switching Current | 5 mA (Signalling Circuit) |
| Environmental Attributes | Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3 |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 20 A (at 60°C Power Circuit) |
| Watts Loss | 2 to 3W |
| Operating Speed | 3600 cycles per hr |
| Working Height | Up to 9,842.52 ft |
| Mounts On | Plate, Rail |
| Rated Making Capacity | 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 250 A @ 440V (Power Circuit) |
| Mechanical Durability | 15 Mcycles |
| Switching Voltage | 17 V (Signalling Circuit) |
| Impedance | 2.5 mOhm |
| Non-Overlap Time | 1.5 msec |
| Net Weight | 0.365 kg |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Tightening Torque | 1.7 Nm |
| Hold VA | 7.5 VA (at 60 Hz 20°C), 7 VA (at 50 Hz 20°C) |
| Rated Short-Time Withstand Current | 30 A (at 40°C for 10 min Power Circuit), 61 A (at 40°C for 1 min Power Circuit), 105 A (at 40°C for 10 s Power Circuit), 210 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit) |
| Includes Protective Cover | Yes |
| Rated Insulation Volts | 600/690V |
| Rated Voltage | 690V AC, 300V DC |
| IP Rating | IP20 |
| Application | Resistive Load |
| Electrical Connection | Screw Clamp Terminals |
| Rated Breaking Capacity | 250 A @ 440V |
| Max. Temperature | 850°C |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Shock Resistance | 10 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed) |
| Inrush VA | 70 VA |
| Operating Time | 4 to 19 ms (Opening), 12 to 22 ms (Closing) |
| Impulse Withstand Voltage | 6 kV |
| Fire Rating | UL 94 V1 |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Package Quantity | 1 |
