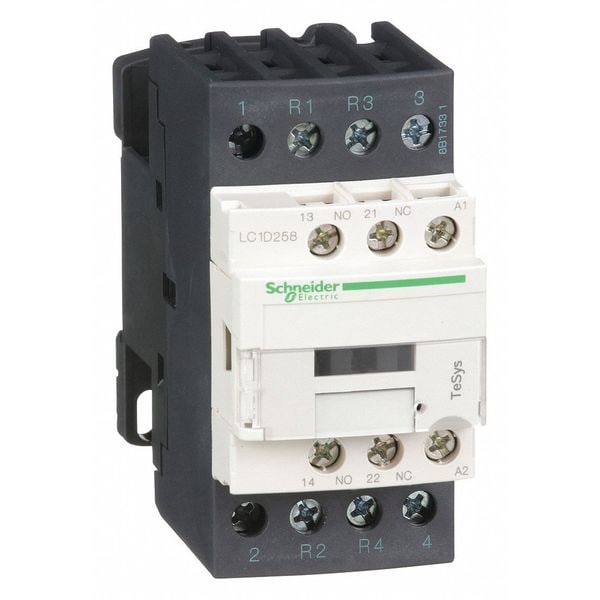

Contacto Magnético IEC, 4 Polos, 120 V CA, 25 A, Reversa: No
| Full Load Amps-Inductive | 25 A |
|---|---|
| Item | IEC Magnetic Contactor |
| Full Load Amps-Resistive | 40 A |
| Number of Poles | 4 |
| Coil Volts | 120 V AC |
| Reversing | No |
| Height | 4.13 in |
| Width | 1.77 in |
| Depth | 3.9 in |
| Enclosure NEMA Rating | No Enclosure |
| Aux. Contact Configuration | 1NO, 1NC |
| Hz | 50/60 |
| NEMA Size | Not Applicable |
| Frame / Series / Class / Code | TeSys |
| Standards | CB, CCC, CSA, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EAC, EN 60947-4-1, EN 60947-5-1, EU-RO-MR by DNV-GL, GB/T 14048.4, IEC 60947-4-1, IEC 60947-5-1, UKCA, UL 60947-5-1, UL Listed, UL 60947-4-1 |
| Series | TeSys Deca |
| Auxiliary Contact Form | 1NO/1NC |
| Electrical Durability | 1.4 Mcycles (40 A, AC-1, Less than 440 V) |
| Fire Rating | UL 94 V1 |
| Rated Insulation Volts | 600/690V |
| Application | Resistive Load |
| Rated Making Capacity | 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 450 A @ 440V (Power Circuit) |
| Tightening Torque | 1.7 Nm (Control Circuit), 1.8 Nm (Power Circuit) |
| Features | Without Built-In Suppressor Module |
| Hold VA | 7.5 VA (at 60 Hz 20°C), 7 VA (at 50 Hz 20°C) |
| Non-Overlap Time | 1.5 msec |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 40 A (at 60°C Power Circuit) |
| IP Rating | IP20 |
| Max. Temperature | 850°C |
| Rated Breaking Capacity | 450 A @ 440V |
| Electrical Connection | Screw Clamp Terminals |
| Rated Short-Time Withstand Current | 240 A (at 40°C for 10 s Power Circuit), 380 A (at 40°C for 1 s Power Circuit), 50 A (at 40°C for 10 min Power Circuit), 120 A (at 40°C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit) |
| Impulse Withstand Voltage | 6 kV |
| Impedance | 2 mOhm |
| Working Height | Up to 9,842.52 ft |
| Switching Current | 5 mA (Signalling Circuit) |
| Rated Voltage | 690V AC |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Operating Speed | 3600 cycles per hr |
| Switching Voltage | 17 V (Signalling Circuit) |
| Shock Resistance | 8 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed) |
| Control Circuit Voltage Limits | Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 60°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz) |
| Fuse Amps | 10 A (Signalling Circuit), 63 A (Type 1 Power Circuit), 40 A (Type 2 Power Circuit) |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Watts Loss | 2 to 3W |
| Environmental Attributes | Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3 |
| Inrush VA | 70 VA |
| Mechanical Durability | 15 Mcycles |
| Overvoltage Category | CAT III |
| Includes Protective Cover | Yes |
| Net Weight | 0.425 kg |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Operating Time | 12 to 22 ms (Closing), 4 to 19 ms (Opening) |
| Mounts On | Plate, Rail |
| Minimum Operating Temperature | -40 deg F |
| Includes Auxiliary Contacts | Yes |
| Full Load Current - Inductive | 25 A |
| Number of Normally Open Main Contacts | 2 |
| Resistance Properties | Fire Resistant, Insulation Resistant |
| Mounting Style | DIN Rail, Plate |
| Reversing Capability | Non-Reversing |
| Terminal Connection Type | Screw Clamp Terminals |
| Contactor Style | IEC |
| Overall Width | 1.77 in |
| NEMA Enclosure Rating | No Enclosure |
| Number of Normally Closed Main Contacts | 2 |
| Electrical Operating Durability | 1,400,000 |
| Overall Height | 4.13 in |
| Frequency | 50/60 Hz |
| Maximum Voltage Rating | 690 V AC |
| Full Load Current - Resistive | 40 A |
| Maximum Operating Temperature | 140 deg F |
| Overall Depth | 3.9 in |
| Embedded Surge Suppressor | No |
| Mechanical Operating Durability | 15,000,000 |
| Coil Voltage | 120V AC |
| NEMA Enclosure Material | Not Applicable |
| Number of Auxillary Contacts | 2 |
| Mounting Support | Rail |
| Heat Dissipation | 2 to 3 W at 50/60 Hz |
| Rated Insulation Voltage | Power circuit 690 V IEC 60947-4-1; Power circuit 600 V CSA; Power circuit 600 V UL; Signalling circuit 690 V IEC 60947-1; Signalling circuit 600 V CSA; Signalling circuit 600 V UL |
| Protective Treatment | THIEC 60068-2-30 |
| Connections - Terminals | Control circuit: screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²) - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 2 0.00 to 0.01 in² (1 to 4 mm²) - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²) - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 2 0.00 to 0.00 in² (1 to 2.5 mm²) - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²) - cable stiffness: solid without cable end; Control circuit: screw clamp terminals 2 0.00 to 0.01 in² (1 to 4 mm²) - cable stiffness: solid without cable end; Power circuit: screw clamp terminals 1 0.00 to 0.02 in² (2.5 to 10 mm²) - cable stiffness: flexible without cable end; Power circuit: screw clamp terminals 2 0.00 to 0.02 in² (2.5 to 10 mm²) - cable stiffness: flexible without cable end; Power circuit: screw clamp terminals 1 0.00 to 0.02 in² (2.5 to 10 mm²) - cable stiffness: flexible with cable end; Power circuit: screw clamp terminals 2 0.00 to 0.02 in² (2.5 to 10 mm²) - cable stiffness: flexible with cable end; Power circuit: screw clamp terminals 1 0.00 to 0.02 in² (2.5 to 16 mm²) - cable stiffness: solid without cable end; Power circuit: screw clamp terminals 2 0.00 to 0.02 in² (2.5 to 16 mm²) - cable stiffness: solid without cable end |
| Insulation Resistance | Greater than 10 MOhm for signalling circuit |
| Minimum Switching Current | 5 mA (for signalling circuit) |
| Contact Compatibility | M6 |
| Climatic Withstand | IACS E10 exposure to damp heat; IEC 60947-1 Annex Q category D exposure to damp heat |
| Poles Description | 4P |
| Associated Fuse Rating | 10 A gG for signalling circuit conforming to IEC 60947-5-1; 63 A gG at Less than or Equal to 690 V coordination type 1 for power circuit; 40 A gG at Less than or Equal to 690 V coordination type 2 for power circuit |
| Operating Altitude | 0 to 9842.52 ft (0 to 3000 m) |
| Control Circuit Type | AC 50/60 Hz |
| Minimum Switching Voltage | 17 V for signalling circuit |
| Pollution Degree | 3 |
| Average Impedance | 2 mOhm - Ith 40 A 50 Hz for power circuit |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Permissible Ambient Air Temperature Around The Device | -40 to 140°F (-40 to 60°C); 140 to 158°F (60 to 70°C) with derating |
| Flame Retardance | V1 conforming to UL 94 |
| Conventional Free Air Thermal Current | 10 A (at 140°F (60°C)) for signalling circuit; 40 A (at 140°F (60°C)) for power circuit |
| Rated Operational Current | 40 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-1 for power circuit |
| Pole Contact Composition | 2 NO + 2 NC |
| Power Dissipation Per Pole | 3.2 W AC-1 |
| Inrush Power in VA | 70 VA 60 Hz cos phi 0.75 (at 68°F (20°C)); 70 VA 50 Hz cos phi 0.75 (at 68°F (20°C)) |
| Hold-In Power Consumption in VA | 7.5 VA 60 Hz cos phi 0.3 (at 68°F (20°C)); 7 VA 50 Hz cos phi 0.3 (at 68°F (20°C)) |
| IP Degree Of Protection | IP20 front face IEC 60529 |
| Rated Short Time Withstand Current | 240 A 104°F (40°C) - 10 s for power circuit; 380 A 104°F (40°C) - 1 s for power circuit; 50 A 104°F (40°C) - 10 min for power circuit; 120 A 104°F (40°C) - 1 min for power circuit; 100 A - 1 s for signalling circuit; 120 A - 500 ms for signalling circuit; 140 A - 100 ms for signalling circuit |
| Auxiliary Contacts Type | Mechanically linked 1 NO + 1 NC IEC 60947-5-1; Mirror contact 1 NC IEC 60947-4-1 |
| IRMS Rated Making Capacity | 140 A AC for signalling circuit conforming to IEC 60947-5-1; 250 A DC for signalling circuit conforming to IEC 60947-5-1; 450 A at 440 V for power circuit conforming to IEC 60947 |
| Compatibility Code | LC1D |
| Product Or Component Type | Contactor |
| Utilisation Category | AC-1; AC-3; AC-3e; AC-4 |
| Rated Operational Voltage | Power circuit Less than or Equal to 690 V AC 25 to 400 Hz |
| Mechanical Robustness | Vibrations contactor open 2 Gn, 5 to 300 Hz); Vibrations contactor closed 4 Gn, 5 to 300 Hz); Shocks contactor closed 15 Gn for 11 ms); Shocks contactor open 8 Gn for 11 ms) |
| Product Certifications | UL; CSA; CCC; EAC; UKCA; CB; EU-RO-MR by DNV-GL |
| Control Circuit Voltage | 120 V AC 50/60 Hz |
| Rated Impulse Withstand Voltage | 6 kV IEC 60947 |
| Maximum Operating Rate | 3600 cyc/h 140°F (60°C) |
| Protective Cover | With |
| Fire Resistance | 1562°F IEC 60695-2-1 |
| Safety Reliability Level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Package Quantity | 1 |
