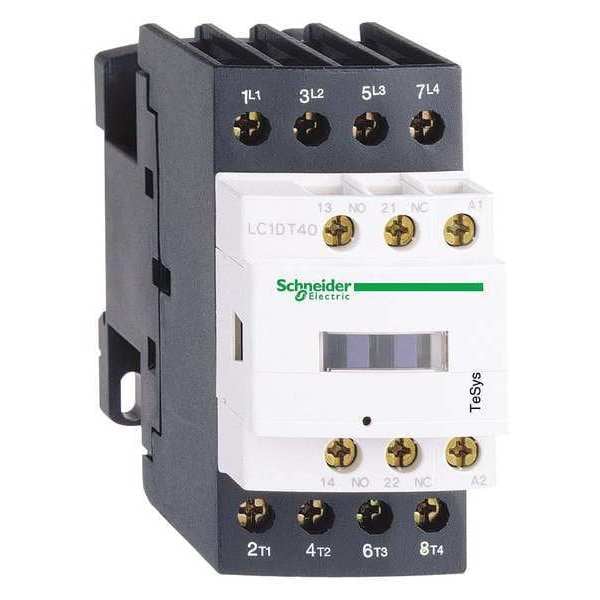

Contacto magnético IEC, 4 polos, 24 V CC, 40 A, Reversión: No
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 40 A |
| Full Load Amps-Resistive | 40 A |
| Number of Poles | 4 |
| Coil Volts | 24 V DC |
| Reversing | No |
| Height | 3.58 in |
| Width | 1.77 in |
| Depth | 4.22 in |
| Enclosure NEMA Rating | No Enclosure |
| Aux. Contact Configuration | 1NO, 1NC |
| Hz | 50/60 |
| Standards | BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed |
| Frame / Series / Class / Code | TeSys |
| NEMA Size | Not Applicable |
| Series | TeSys Deca |
| Auxiliary Contact Form | 1NO/1NC |
| Working Height | Up to 9,842.52 ft |
| Rated Short-Time Withstand Current | 50 A (at 40°C for 10 min Power Circuit), 120 A (at 40°C for 1 min Power Circuit), 240 A (at 40°C for 10 s Power Circuit), 380 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit) |
| Electrical Connection | Screw Clamp Terminals |
| Net Weight | 0.425 kg |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Rated Making Capacity | 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 450 A @ 440V (Power Circuit) |
| Shock Resistance | 8 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed) |
| Impulse Withstand Voltage | 6 kV |
| Impedance | 2 mOhm |
| Features | Built-In Bi-Directional Peak Limiting Diode Suppressor |
| Includes Protective Cover | Yes |
| Operating Speed | 3600 cycles per hr |
| Rated Breaking Capacity | 450 A @ 440V |
| Application | Resistive Load |
| Environmental Attributes | Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3 |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Electrical Durability | 1.4 Mcycles (40 A, AC-1, Less than 440 V) |
| Tightening Torque | 1.7 Nm (Control Circuit), 1.8 Nm (Power Circuit) |
| Rated Voltage | 690V AC, 300V DC |
| Non-Overlap Time | 1.5 msec |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Rated Insulation Volts | 600/690V |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 40 A (at 60°C Power Circuit) |
| Fuse Amps | 10 A (Signalling Circuit), 63 A (Type 1 Power Circuit), 40 A (Type 2 Power Circuit) |
| Overvoltage Category | CAT III |
| Operating Time | 16 to 24 ms (Opening), 53.55 to 72.45 ms (Closing) |
| Mechanical Durability | 30 Mcycles |
| Fire Rating | UL 94 V1 |
| Mounts On | Plate, Rail |
| Control Circuit Voltage Limits | Drop-Out DC: 0.1 to 0.25 Uc (at -40 to 70°C), Operational DC: 0.7 to 1.25 Uc (at -40 to 60°C), 1 to 1.25 Uc (at 60 to 70°C) |
| Switching Current | 5 mA (Signalling Circuit) |
| IP Rating | IP20 |
| Max. Temperature | 850°C |
| Switching Voltage | 17 V (Signalling Circuit) |
| Full Load Current - Resistive | 40 A |
| Frequency | 50/60 Hz |
| Contactor Style | IEC |
| Overall Height | 3.58 in |
| NEMA Enclosure Material | Not Applicable |
| Maximum Voltage Rating | 690 V AC |
| Electrical Operating Durability | 1,400,000 |
| Terminal Connection Type | Screw Clamp Terminals |
| Embedded Surge Suppressor | Yes |
| Includes Auxiliary Contacts | Yes |
| Full Load Current - Inductive | 40 A |
| Overall Width | 1.77 in |
| Overall Depth | 4.21 in |
| Mounting Style | DIN Rail, Plate |
| NEMA Enclosure Rating | No Enclosure |
| Maximum Operating Temperature | 140 deg F |
| Mechanical Operating Durability | 30,000,000 |
| Number of Auxillary Contacts | 2 |
| Resistance Properties | Fire Resistant, Insulation Resistant |
| Reversing Capability | Non-Reversing |
| Coil Voltage | 24V DC |
| Number of Normally Open Main Contacts | 4 |
| Minimum Operating Temperature | -40 deg F |
| Package Quantity | 1 |
