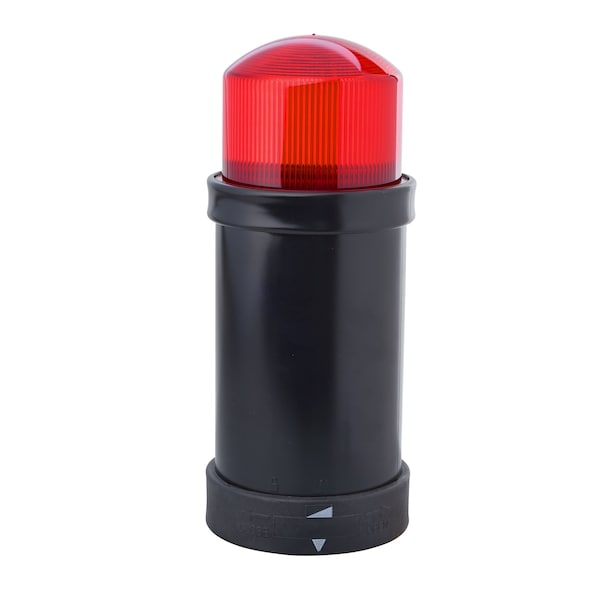

Indicador bancario, Harmony XVB, unidad iluminada, plástico, rojo, 70mm, tubo de descarga de destello integral, 5 joules, 24V CA/CD.
| Item | RED |
|---|---|
| Height | 157 mm |
| Standards | EN/IEC 60947-5-1 |
| Material | polycarbonate |
| Width | 70 mm |
| Product or Component Type | indicator bank |
| [Us] Rated Supply Voltage | 24 V AC/DC |
| Component Name | XVBC |
| Nominal Voltage Limit | 0.85...1.1 Un IEC 60947-5-1 |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV IEC 60947-1 |
| Mounting Diameter | 70 mm |
| Ambient Air Temperature For Storage | -40-70°C |
| Current Consumption | < 350 mA DC, < 550 mA AC |
| Electrical Shock Protection Class | class I on support tube IEC 61140, class II on base unit IEC 61140 |
| Flash Energy | 5 J |
| Bulb Type | flash discharge tube |
| Protective Treatment | TC |
| [Ui] Rated Insulation Voltage | 250 V IEC 60947-1 |
| Ip Degree of Protection | IP65 on fixing base XVBZ0. IEC 60529, IP66 on base unit IEC 60529 |
| Signalling Type | flashing |
| Connections - Terminals | screw clamp terminals, <= 1 x 1.5 mm² with cable end |
| Beacon or Indicator Bank Unit Type | illuminated unit |
| Light Source | integral flash discharge tube, red |
| Range of Product | Harmony XVB Universal |
| Nema Degree of Protection | Type 4X UL indoor) |
| Flashing Frequency | 1-1 Hz |
| Package Quantity | 1 |
