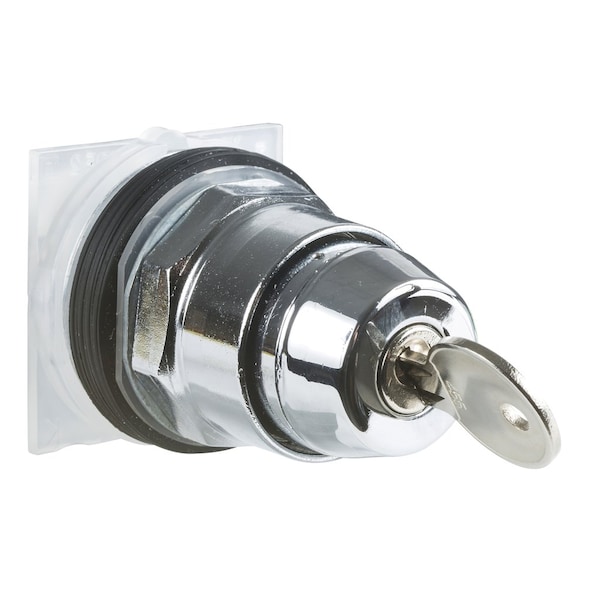

Cabeza de interruptor selector de llave, Harmony 9001K, metal, interruptor de llave, 30mm, llave 455, 2 posiciones, permanece en su lugar.
| Item | Selector switch 0 30 - 2 position - key |
|---|---|
| Size | 30 mm |
| Type of Operator | stay put |
| Bezel Material | metal |
| Key Number | 455 |
| Standards | IEC 60947-1, IEC 60947-5-4, JIS C 4520, UL 508, IEC 60947-5-1, CSA C22.2 No 14, JIS C 852 |
| Mechanical Durability | 500,000 cycle |
| Contacts Type And Composition | without contact block |
| Product or Component Type | head for key selector switch |
| Device Presentation | basic element |
| Protective Treatment | TC |
| Operator Profile | key switch |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Cam Profile | 5 |
| Operator Position Information | 2 positions |
| Ip Degree of Protection | IP66 IEC 60529 |
| Ambient Air Temperature For Storage | -40-70°C |
| Device Short Name | 9001K |
| Vibration Resistance | 7 gn 2-500 Hz)IEC 60068-2-6 |
| Product Compatibility | 9001KA1 side 1 or 2 |
| Mounting Diameter | 30 mm |
| Type of Keylock | key |
| Shape of Signaling Unit Head | octagonal |
| Nema Degree of Protection | NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 |
| Overvoltage Category | class II IEC 61140 |
| Ambient Air Temperature For Operation | -25-70°C |
| Key Withdrawal Position | left, right |
| Range of Product | Harmony 9001K |
| Product Certifications | UL 508 || NEMA |
| Package Quantity | 1 |
