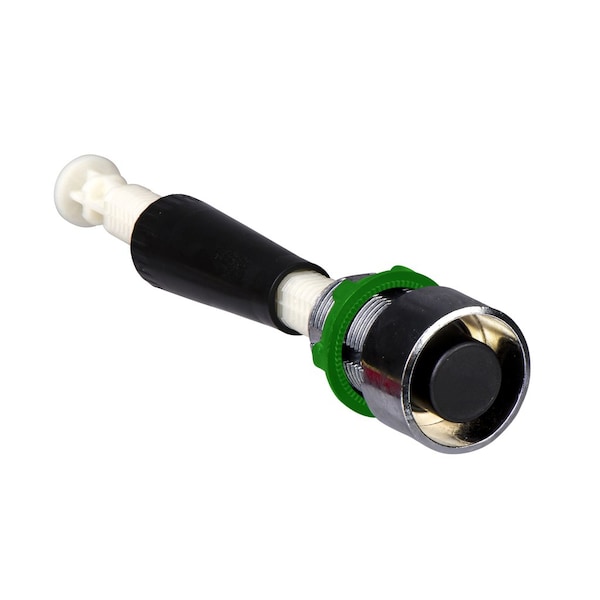

Botón de reinicio manual de sobrecarga, Harmony XB4, metal, empotrable, negro, 22mm, distancia de actuación de 6...16mm, sin marcar.
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item | Push Button |
| Bezel Material | Chrome |
| Standards | Bureau Veritas, CSA C22.2 No.14, DNV, GL, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, LROS, UL 508 |
| Features | Excellent Mechanical Connection with Operator Head, Quick and Easy Assembly and Disassembly, Robustness to Withstand Harsh Environments |
| Series | XB4 |
| IP Rating | IP66 |
| Terminal Connection | Screw Clamp, Faston Connector, Spring Terminal |
| Head Type | Standard |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Ambient Air Temperature For Operation | -40-70°C |
| Product Or Component Type | push-button |
| Operating Travel | 10 mm |
| Fixing Collar Material | zamak |
| Mounting Diameter | 22 mm |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Nema Degree Of Protection | NEMA 13 || NEMA 4X |
| Shape Of Signaling Unit Head | round |
| Operator Profile | black flush, unmarked |
| Activating Distance | 6 to 16 mm |
| Ik Degree Of Protection | IK03 IEC 50102 |
| Electrical Shock Protection Class | class I IEC 60536 |
| Mechanical Durability | 5,000,000 cycle |
| Ambient Air Temperature For Storage | -40-70°C |
| Device Short Name | XB4 |
| Product Certifications | CSA || DNV || GL || BV || LROS (Lloyds register of shipping) || UL Listed |
| Protective Treatment | TH |
| Range of Product | Harmony XB4 |
| Product Type | Push Button Operators |
| Operating Temperature - Maximum | 158 deg F |
| Manufacturer Warranty Length | 18 mo |
| Head Color | Black |
| NEMA Enclosure Rating | 13, 4X |
| Panel Cutout Diameter | 22 mm |
| Resistance Properties | Dust Resistant, Impact Resistant, Vibration Resistant, Watertight |
| Push Button Style | Flush |
| Mushroom Head Diameter | Not Applicable |
| Operating Temperature - Minimum | -40 deg F |
| Package Quantity | 1 |
