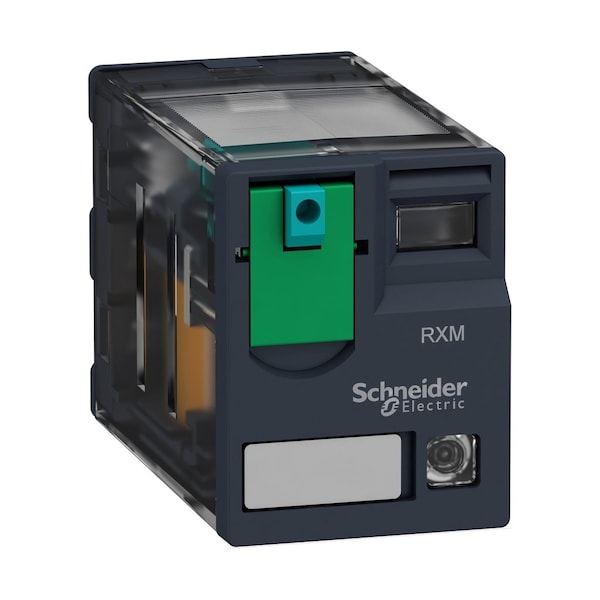

Relé enchufable en miniatura - Zelio RXM 4 C/, 12V CC, 4 NA/NC.
| Item | Miniature Plug-in relay - Zelio RXM 4 C/ |
|---|---|
| Coil Volts | 12V DC |
| AC Contact Rating - Relay | 3A @ 250V AC |
| DC Contact Rating - Relay | 3 A @ 28 V |
| Contact Form - Relay | 4 C/O |
| Power Consumption - Relay | 0.9 W |
| Contact Material | Silver |
| Features | Lockable Test Button; Status LED |
| Standards | CSA C22.2 No 14; EN/IEC 61810-1; UL 508; CE; GOST; Lloyd's |
| Switching Voltage | 250 V IEC |
| Dielectric Strength | 1300 V AC between contacts with micro disconnection; 2000 V AC between coil and contact; 2000 V AC between poles |
| Switching Power | Max 750 VA/84 W; Min 15 mW 3 mA, 5 V |
| Protection Category | RT I |
| Operating Temp. Range | -40-55°C |
| Current Rating | 2 A 28 V DC) NO IEC; 2 A 250 V AC) NO IEC; 1 A 28 V DC) NC IEC; 1 A 250 V AC) NC IEC; 3 A 28 V DC) UL; 3 A 277 V AC) UL |
| Operating Time | 20 msec |
| Pin Shape | Flat |
| Series | RXM; Miniature |
| Coil Resistance | 160 ohms |
| [Ie] Rated Operational Current | 2 A 28 V DC) NO IEC, 2 A 250 V AC) NO IEC, 1 A 28 V DC) NC IEC, 1 A 250 V AC) NC IEC, 3 A 28 V DC) UL, 3 A 277 V AC) UL |
| Minimum Switching Capacity | 15 mW 3 mA, 5 V |
| Maximum Switching Capacity | 750 VA/84 W |
| Operating Position | any position |
| Average Resistance | 160 Ohm 20°C +/- 10 % |
| Ambient Air Temperature For Storage | -40-85°C |
| Device Presentation | complete product |
| [Uc] Control Circuit Voltage | 12 V DC |
| Load Current | 3 A 250 V AC, 3 A 28 V DC |
| Mechanical Durability | 10,000,000 cycle |
| Device Short Name | RXM |
| Operating Rate | <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load |
| Ambient Air Temperature For Operation | -40-55°C |
| Electrical Durability | 100000 cycles resistive depending on mounting position and working environment |
| Status Led | with |
| Series Name | Miniature |
| Pollution Degree | 2 |
| [Ithe] Conventional Enclosed Thermal Current | 3 A -40-55°C |
| Rated Operational Voltage Limits | 9.6...13.2 V DC |
| Drop-Out Voltage Threshold | >= 0.1 Uc |
| Test Levels | level A group mounting |
| Vibration Resistance | 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation, 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating |
| Product or Component Type | plug-in relay |
| [Uimp] Rated Impulse Withstand Voltage | 2.5 kV 1.2/50µs |
| Ip Degree of Protection | IP40 conforming to IEC 60529 |
| Utilisation Coefficient | 0.2 |
| Range of Product | Harmony Electromechanical Relays |
| Control Type | Lockable test button |
| Shock Resistance | 10 gnin operation, 30 gnnot operating |
| [Ui] Rated Insulation Voltage | 250 V IEC, 300 V CSA, 300 V UL |
| Package Quantity | 1 |
