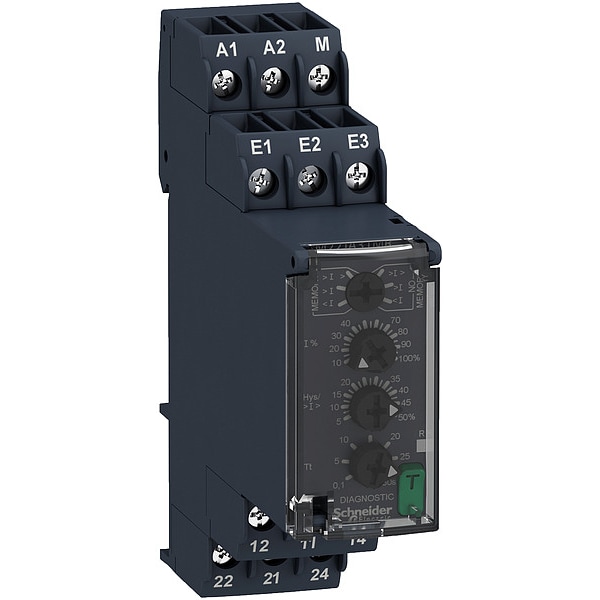

Relé de monitoreo, 8 A, 24-240VAC/DC, 9 pines.
| Item - Relay | Current Sensing Relay |
|---|---|
| AC Contact Rating - Relay | 8 A @ 250 V |
| DC Contact Rating - Relay | 0.01 A @ 5 V |
| Contact Form - Relay | DPDT |
| Mounting - Relay | DIN Rail |
| Standards | CCC, CE Certified, CSA Certified, EAC, EN/IEC 60255-1, GL, RCM, UL Listed |
| Contact Form | DPDT |
| Body Width - Relay | 0.89 in |
| Overall Height - Relay | 3.65 in |
| Body Height - Relay | 3.54 in |
| Item | Monitor Relay |
| Body Depth - Relay | 3.15 in |
| Response Time | <= 500 ms |
| Trip Point | 0.01 to 1 A (Adjustable) |
| Trip Delay | 0.1 to 30 sec |
| Electrical Connection | Terminal Strip |
| Type of Output | Relay |
| Sensing Amp Range | 0.01 to 1 A |
| Input or Control Voltage | 20 to 264 V AC/DC |
| Core Type - Relay | Solid |
| Power Consumption | 3.5 VA |
| Input Voltage | 24 to 240V AC/DC |
| Mechanical Operating Durability | 10,000,000 |
| Weight | 0.24 lb |
| Maximum Operating Temperature | 158 deg F |
| Maximum Switching Capacity | 2,000 VA |
| Number of Pins | 9 |
| Overall Depth | 3.13 in |
| Body Height | 3.54 in |
| Current Rating | 8 A |
| IP Rating | IP20, IP50, IP40 |
| Body Width | 0.89 in |
| Contact Rating (DC) | 0.01 A @ 5V |
| Contact Rating (AC) | 8 A @ 250V |
| Minimum Operating Temperature | -40 deg F |
| Monitored Parameters | Overcurrent, Undercurrent |
| Body Depth | 3.13 in |
| Mounting Style | DIN Rail |
| Minimum Switching Current | 10 mA |
| Maximum Switching Voltage | 250 V AC |
| Control Circuit Voltage Limits | 15 % + 10 % Un |
| Ambient Air Temperature For Operation | -20-50°C 60 Hz || -20-60°C 50 Hz |
| Dielectric Test Voltage | 2.5 kV AC 50 Hz, 1 min IEC 60255-27 |
| Relay Monitored Parameters | overcurrent or undercurrent detection || overcurrent or undercurrent in window mode |
| Relay Type | control |
| Time Delay Drift | <= 0.05 % per degree centigrade depending permissible ambient air temperature || <= 1 % within the supply voltage range |
| Maximum Power Consumption In Va | 3.5 VA |
| Tightening Torque | 0.6-1 N.m IEC 60947-1 |
| Maximum Power Consumption In W | 1.5 W DC |
| Run-Up Delay At Power-Up | 0.3 sec |
| Ambient Air Temperature For Storage | -40-70°C |
| Mounting Support | 35 mm DIN rail conforming to EN/IEC 60715 |
| Threshold Setting | 10...100 % |
| Relay Name | RM22JA |
| Reset Time | 1500 ms at maximum voltage |
| Connections - Terminals | screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end || screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end |
| Setting Accuracy Of The Switching Threshold | +/- 10 % of the full scale |
| Local Signalling | for relay ON LED (yellow) || for power ON LED (green) |
| Repeat Accuracy | +/- 0.5 % input and measurement circuit || +/- 0.2 % time delay |
| Pollution Degree | 3 IEC 60664-1 || 3 UL 508 |
| Overvoltage Category | III IEC 60664-1 || III UL 508 |
| Electrical Durability | 100000 cycles |
| Measurement Range | 4...40 mA E1-M terminals || 20...200 mA E2-M terminals || 100...1000 mA E3-M terminals || 4 mA...1 A current AC/DC 50/60 Hz |
| Output Contacts | 2 C/O |
| Contacts Material | cadmium free |
| Setting Accuracy Of Time Delay | 0.9167 |
| Measurement Error | < 1 % over the whole range with voltage variation || 0.05 %/°C with temperature variation |
| Contacts Type And Composition | O, 2 C |
| Product Certifications | CSA || CE || EAC || CCC || GL || RCM || UL |
| Maximum Switching Current | 8 A |
| Nominal Output Current | 8 A |
| Internal Input Resistance | 0.5 Ohm || 2.5 Ohm || 0.1 Ohm |
| Utilisation Category | AC-15 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || AC-1 IEC 60947-4-1 || DC-1 IEC 60947-4-1 |
| [Us] Rated Supply Voltage | 24...240 V AC/DC 50/60 Hz +/- 10 % |
| Width | 22.5 mm |
| Electromagnetic Compatibility | immunity for residential, commercial and light-industrial environments EN/IEC 61000-6-1 || immunity for industrial environments EN/IEC 61000-6-2 || emission standard for residential, commercial and light-industrial environments EN/IEC 61000-6-3 || emission standard for industrial environments EN/IEC 61000-6-4 || electrostatic discharge 6 kV contact discharge)level 3 IEC 61000-4-2 || electrostatic discharge 8 kV air discharge)level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test 10 V/mlevel 3 IEC 61000-4-3 || electrical fast transient/burst immunity test 4 kV direct)level 4 IEC 61000-4-4 || electrical fast transient/burst immunity test 2 kV capacitive coupling)level 4 IEC 61000-4-4 || surge immunity test 4 kV common mode)level 4 IEC 61000-4-5 || surge immunity test 2 kV differential mode)level 4 IEC 61000-4-5 || conducted and radiated emissionsclass B group 1 CISPR 11 || conducted and radiated emissionsclass B CISPR 22 |
| Maximum Measuring Cycle | 100 msec |
| Shock Resistance | 15 gn 11 ms) not in operation IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27 |
| Mechanical Durability | 10000000 cycles |
| Switching Capacity In Va | 2,000 VA |
| Insulation Resistance | > 100 MOhm 500 V DC IEC 60255-27 |
| Supply Voltage Limits | 20.4-264 V AC, DC |
| Vibration Resistance | 0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6 || 1 gn 10-58.1 Hz) not in operation IEC 60068-2-6 || 0.035 mm 58.1-150 Hz) in operation IEC 60068-2-6 || 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6 |
| Immunity To Microbreaks | 50 msec |
| Time Delay Type | adjustable 0.1...30 s, +/- 10 % of the full scale value on crossing the threshold Tt |
| Insulation | between supply and measurement |
| Housing Material | self-extinguishing plastic |
| Resistance Across Terminals | 2.5 Ohm E1-M terminals || 0.5 Ohm E2-M terminals || 0.1 Ohm E3-M terminals |
| Switching Threshold Drift | <= 0.05 % per degree centigrade depending permissible ambient air temperature || <= 1 % within the supply voltage range |
| Relative Humidity | 93-97 % 25-55°C IEC 60068-2-30 |
| Hysteresis | 5-50 % adjustable threshold setting || 3-3 % fixed full scale for window mode |
| Ip Degree Of Protection | IP20 IEC 60529 terminals) || IP40 IEC 60529 housing) || IP50 IEC 60529 front panel) |
| Product Or Component Type | control relay |
| Package Quantity | 1 |
