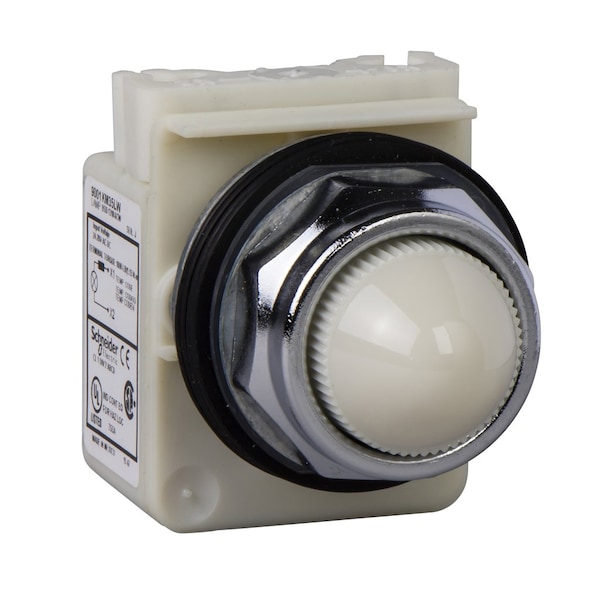

Indicador luminoso, Harmony 9001K, metal, policarbonato, domo, blanco, 30mm, LED blanco, 120V.
| Item | White T-k Pilot Light Led 30mm 120v |
|---|---|
| Voltage | 120V |
| Color | White |
| Lamp Type | LED |
| Shape | Round |
| Terminal Connection | Screw Clamp terminals |
| Bezel | Metal |
| Lens Material | Polycarbonate |
| Size | 30 mm |
| Lens Type | Domed |
| Width | 54 mm |
| Height | 70 mm |
| IP Rating | IP66 |
| NEMA Rating | 1, 12, 13, 2, 3, 3R, 4, 6 |
| Standards | UL 508; JIS C 852; EN/IEC 60947-5-4; JIS C8201-5-1; EN/IEC 60947-1; CSA C22.2 No 14; EN/IEC 60947-5-1; JIS C8201-1; NEMA |
| Tightening Torque | 0.8-0.8 N.m IEC 60947-1 |
| Vibration Resistance | 7 gn 2-500 Hz)IEC 60068-2-6 |
| Operating Position | Any position |
| Bulb Base | BA 9s |
| Overvoltage Category | class II IEC 61140 |
| Ip Degree of Protection | IP66 IEC 60529 |
| Range of Product | Harmony 9001K |
| Device Presentation | Complete product |
| [Us] Rated Supply Voltage | 120 V |
| Short-Circuit Protection | 10 A cartridge fuse IEC 60947-5-1 |
| Protective Treatment | TC |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Shape of Screw Head | cross slotted |
| Light Block Supply | direct 120 V AC/DC |
| [Ith] Conventional Free Air Thermal Current | 10A |
| Ambient Air Temperature For Storage | -40-70°C |
| Nema Degree of Protection | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6 |
| Product or Component Type | pilot light |
| Ambient Air Temperature For Operation | -25-70°C |
| Connections - Terminals | screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1 |
| [Ui] Rated Insulation Voltage | 250 V 2)IEC 60947-1 |
| Device Short Name | 9001K |
| [Uimp] Rated Impulse Withstand Voltage | 2.5 kV IEC 60947-1 |
| Package Quantity | 1 |
