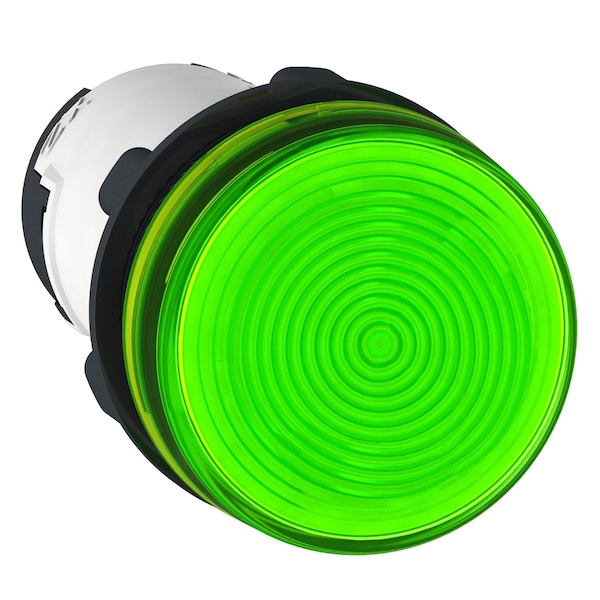

Piloto indicador, Harmony XB7, redondo Ø22 mm, verde, bulbo BA 9 s, 230 V, terminales de tornillo de sujeción.
| Item | Round pilot light 0 22 - green - bulb BA |
|---|---|
| Standards | UL 508, CSA C22.2 No 14, IEC 60947-1, IEC 60947-5-1, JIS C8201-5-1, JIS C8201-1 |
| Depth | 54 mm |
| Height | 29 mm |
| Width | 29 mm |
| Device Short Name | XB7 |
| Tightening Torque | 0.8-1.2 N.m IEC 60947-1 |
| Range of Product | Harmony XB7 |
| [Us] Rated Supply Voltage | 230 V AC 50/60 Hz |
| Overvoltage Category | class II IEC 60536 |
| Ambient Air Temperature For Storage | -40-70°C |
| [Ui] Rated Insulation Voltage | 250 V 3)IEC 60947-1 |
| Operator Additional Information | with plain lens |
| Fixing Center | >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm |
| Connections - Terminals | Faston connectors 6.35 x 0.8 mm IEC 60947-1, forked type tag connectors 6.5 mm IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1 |
| Light Source | incandescent |
| Ambient Air Temperature For Operation | -25-55°C |
| Bulb Base | BA 9s |
| Shape of Signaling Unit Head | round |
| Protective Treatment | TH |
| Supply Voltage Limits | 195-264 V AC |
| Ip Degree of Protection | IP20 IEC 60529 rear face) || IP54 IEC 60529 front face) |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Light Block Supply | direct through resistor <2.6 W 130 V |
| Signalling Type | steady |
| Product or Component Type | Pilot light |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Electromagnetic Compatibility | disturbing field emission class B conforming to IEC 55011 |
| Shock Resistance | 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Fixing Mode | fixing nut beneath head 2-2.4 N.m |
| Device Mounting | fixing hole 22.5 mm 22.3 +0.4/0 IEC 60947-5-1 |
| Terminals Description Iso N°1 | PL |
| Compatibility Code | XB7 |
| Mounting Diameter | 22 mm |
| Service Life | 2000 h at rated voltage and 25°C |
| Cap/Operator or Lens Colour | green |
| Shape of Screw Head | cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm |
| Nema Degree of Protection | NEMA 12 |
| Device Presentation | product |
| Package Quantity | 1 |
