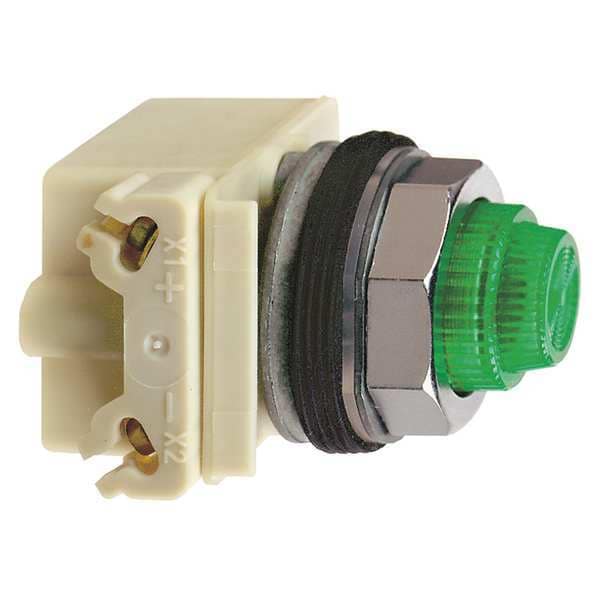

Indicador de encendido, LED, verde, 120V, lente de Fresnel.
| Item | Pilot Light |
|---|---|
| Voltage | 120V AC |
| Color | Green |
| Lamp Type | LED |
| Shape | Round |
| Terminal Connection | Screw Clamp |
| Lens Material | Plastic |
| Bezel | Chromium Plated Metal |
| Lens Type | Fresnel |
| Size | 30 mm |
| Lamp Module Type | Full Voltage |
| Basic Material | Metal |
| Standards | REACH, RoHS, UL 508, WEEE |
| IP Rating | IP66 |
| Lamp Voltage | 120V AC |
| Body Material | Zinc Die Cast |
| Replacement Lamps | N/A |
| NEMA Rating | 1, 12, 13, 2, 3, 3R, 4, 6 |
| Legend | Not Applicable |
| Body Finish | Chrome Plated |
| Overall Depth | 1.65 in |
| Lamp Voltage - Maximum | 120 V AC/DC |
| Lamp Color | Green |
| Series | 9001K |
| NEMA Enclosure Rating | 13, 4, 12, 3, 3R, 1, 2, 6 |
| Manufacturer Warranty Length | 18 mo |
| Includes Push-To-Test | No Push-To-Test Included |
| Lens Color | Green |
| Hazardous Location Specification | Not Applicable |
| Includes Lamp Module | Lamp Module Included |
| Includes Lens | Lens Included |
| Voltage Rating - Maximum | 120 V AC/DC |
| Panel Cutout Diameter | 30 mm |
| Overall Width | 2.13 in |
| Overall Height | 2.76 in |
| ATEX Explosive Environment Rating | Not Applicable |
| Package Quantity | 1 |
