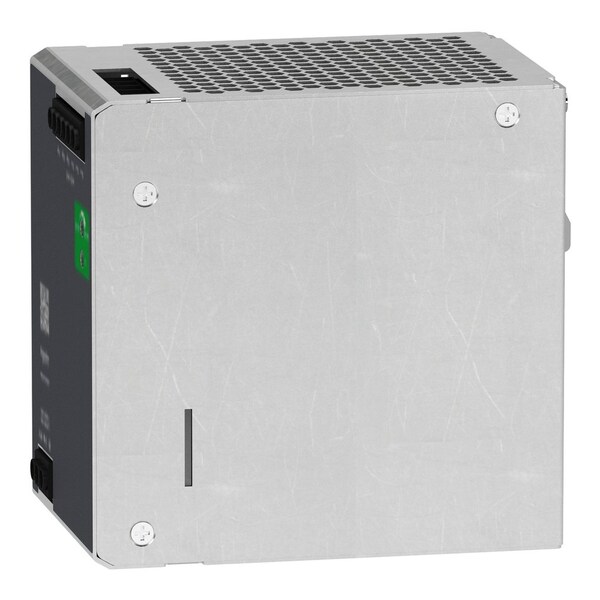

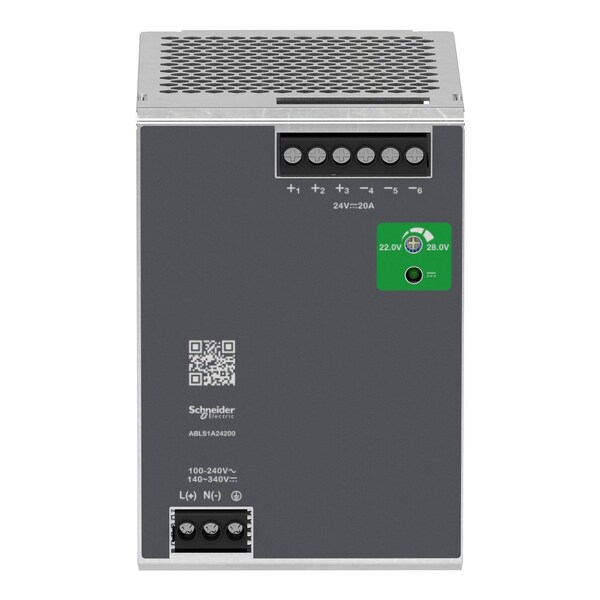

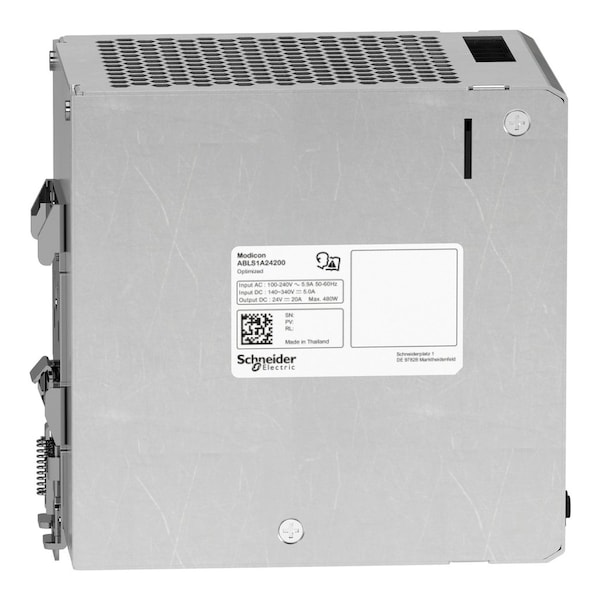

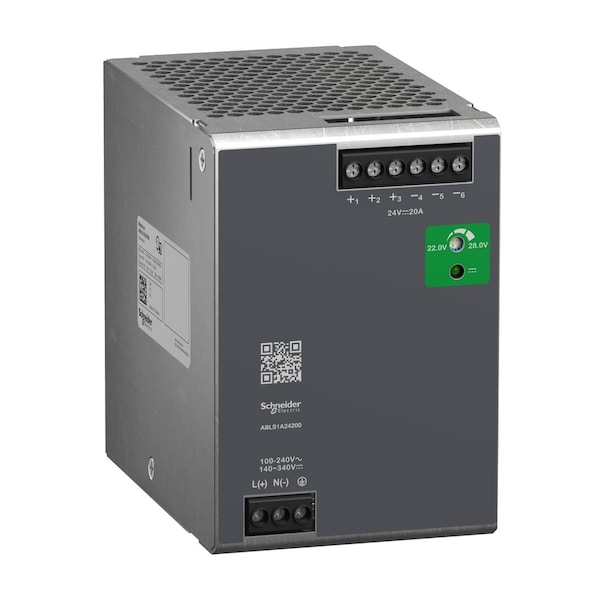

Power Supply, 100 to 240V AC, 24 V DC, 480W, 20A, DIN Rail
| Item | Power Supply |
|---|---|
| Input Voltage | 100 to 240V AC |
| Mounting | DIN Rail |
| Standards | IEC 62368-1, EN/IEC 61010-1, EN 61010-2-201, EN/IEC 61204-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3, IEC 61000-6-4, IEC 61000-3-2, EN 61000-3-3, UL 62368-1, UL 61010-1, UL 61010-2-201, CSA C22.2 No 62368-1, CSA C22.2 No 61010-1, CSA C22.2 No 61010-2-201, EN/IEC 62368-1 |
| Style | Regulated Switch |
| Height | 123.6 mm |
| Connection | Screw |
| Case Material | Aluminum Case |
| Depth | 128.5 mm |
| Hz | 50/60 Hz |
| IP Rating | IP20 |
| Phase - Electrical | Single |
| Status Indicator | Green LED |
| Output Voltage | 24 V DC |
| Output Amps | 20 A |
| Width | 85.5 mm |
| Power Rating | 480 W |
| Pollution Degree | 2 |
| Input Protection Type | integrated fuse (not interchangeable) 10 A, external protection (recommended) 20 A Curve C, external protection (recommended) 16 A Curve B, external protection (recommended) 13 A Curve C |
| Network Frequency Limits | 50-60 Hz |
| Output Protection Type | against overload and short-circuits automatic reset, against over temperature manual reset, against overvoltage manual reset |
| Holding Time | > 20 ms 115 V AC, > 20 ms 230 V AC |
| Ambient Air Temperature For Operation | -20-40°C without derating mounting position A 115 V AC < 6561.68 ft (2000 m), -20-50°C without derating mounting position A 230 V AC < 6561.68 ft (2000 m), 40-70°C with current derating of 1.67 % per°C mounting position A 115 V AC < 6561.68 ft (2000 m), 50-70°C with current derating of 2.5 % per°C mounting position A 230 V AC < 6561.68 ft (2000 m) |
| Inrush Current | 45.0 A 115 V, 90.0 A 230 V |
| Line And Load Regulation | < 0.5 % network 0 to 100 % load at 25°C, < 1 % network full voltage range in line at 25°C |
| Vibration Resistance | 3 mm 2-9 Hz)IEC 60068-2-6, 10 m/s² 9-200 Hz)IEC 60068-2-6 |
| Load Capacitance | 8,000µF |
| Electrical Shock Protection Class | class I |
| Output Coupling | serial, parallel |
| Electromagnetic Emission | conducted emissions IEC 61000-6-3, radiated emissions IEC 61000-6-4 |
| Power Supply Output Current | 20 A |
| Residual Ripple | < 120 mV |
| Meantime Between Failure [Mtbf] | 700000 h at 25°C, full load conforming to SR 332 |
| Efficiency At Full Load | 85...264 V AC without temperature derating, 120...375 V DC without temperature derating |
| Earthing System | TN, TT, IT |
| Current Consumption | < 5.4 A 115 V AC, < 2.7 A 230 V AC, < 5 A 140 V DC |
| Operating Altitude | < 5000 m |
| Electromagnetic Compatibility | immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2, immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2, immunity to conducted RF disturbances - test level: 15 V/m (80 MHz...2 GHz) conforming to IEC 61000-4-3, immunity to conducted RF disturbances - test level: 5 V/m (2...2.7 GHz) conforming to IEC 61000-4-3, immunity to conducted RF disturbances - test level: 5 V/m (2.7...6 GHz) conforming to IEC 61000-4-3, immunity to fast transients - test level: 4 kV (on input-output) conforming to IEC 61000-4-4, surge immunity test - test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5, surge immunity test - test level: 3 kV (between phases) conforming to IEC 61000-4-5, immunity to conducted RF disturbances - test level: 15 V (0.15...80 MHz) conforming to IEC 61000-4-6, immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8, immunity to voltage dips conforming to IEC 61000-4-11, disturbing field emission conforming to EN 55016-2-3, limits for harmonic current emissions conforming to IEC 61000-3-2, conforming to EN 55016-1-2, conforming to EN 55016-2-1 |
| Maximum Leakage Current | 1 mA 240 V AC |
| Power Factor | 0.95 to 115 V AC, 0.95 to 230 V AC |
| Power Dissipation In W | 60 W |
| Efficiency | 85 % 115 V AC, 88 % 230 V AC |
| Shock Resistance | 150 m/s² 11 ms |
| Kw Rating | 480 W |
| Supply | SELV IEC 60950-1, SELV IEC 60204-1, SELV IEC 60364-4-41 |
| Response Time | < 1.5 sec |
| Dielectric Strength | 3000 V AC with input to output |
| Range of Product | Modicon Power Supply |

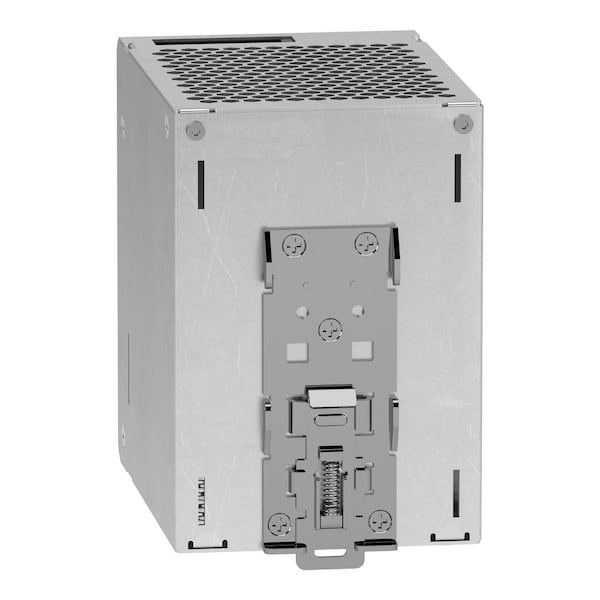

| Mounting Support | top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, double-profile DIN rail |
| Service Life | 10 year(s) |
| Overvoltage Category | II |
| Package Quantity | 1 |
