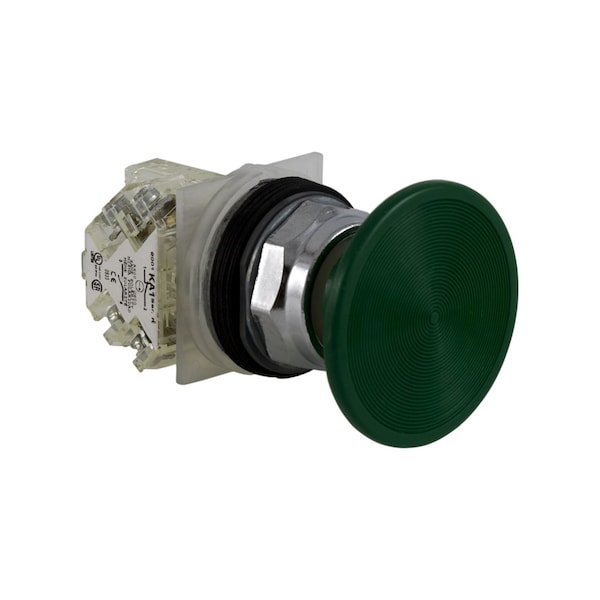

Botón pulsador, Harmony 9001K, metal, hongo de 57mm, verde, 30mm, retorno por resorte, 1 contacto normalmente abierto (C/O).
| Size | 30 mm |
|---|---|
| Item | PUSH BUTTON 600VAC 10A 30MM T-K |
| Bezel Material | metal |
| Type Of Operator | spring return |
| Product Or Component Type | push-button |
| Contacts Type And Composition | O, 1 C |
| Operating Position | any position |
| Device Short Name | K |
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/6/12/13 |
| Connections - Terminals | screw clamp terminals |
| Light Block Supply | without supply |
| [Ie] Rated Operational Current | 10 A, AC-15 || 10 A, DC-13 |
| Contact Operation | standard |
| Device Presentation | product |
| Cap/Operator Or Lens Colour | green |
| Product Certifications | CE || CSA LR 25490 class 3211 03 || UL listed file E42259 CCN NKCR || NEMA |
| Mounting Diameter | 30 mm |
| Light Source | without |
| Operator Additional Information | screw-on plastic with set screw |
| Operator Profile | mushroom Ø 57 mm, green mushroom Ø 57 mm |
| Range of Product | Harmony 9001K |
| Package Quantity | 1 |
