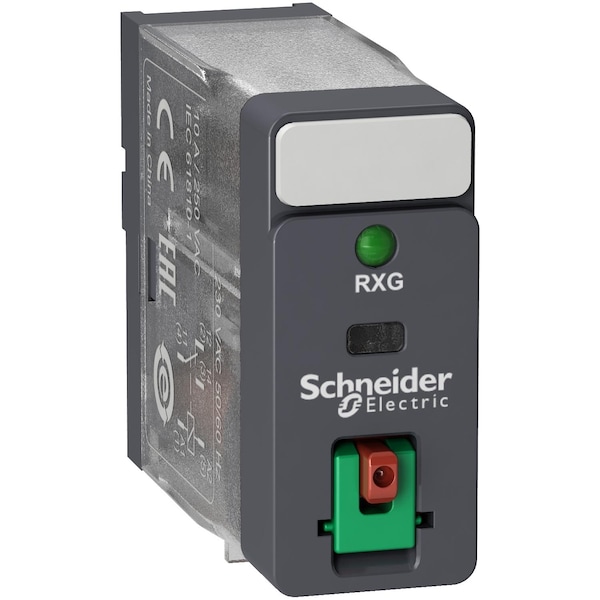

Relé 1 contacto normalmente abierto, 10A, 250VCA, 120VCA, con LED y LTB, 120V CA voltios de bobina, 1 contacto normalmente abierto.
| Item | Relay 1Co 10A,250VAC,120VAC,Coil Led+Ltb |
|---|---|
| Coil Volts | 120V AC |
| AC Contact Rating - Relay | 10A @ 250V AC |
| Contact Form - Relay | 1 C/O |
| Mounting - Relay | Any Position |
| Power Consumption - Relay | 0.82 VA |
| Contact Material | Silver Alloy |
| Features | Lockable Test Button; Flag Signalling; Status LED |
| Standards | UL 508; IEC 61810-1; CSA C22.2 No 14; EAC; CE; DNV-GL |
| Series | RXG; interface relay |
| Switching Power | Max 2500 VA; Min 500 mW at 100 mA, 5 V DC |
| Operating Time | 20 msec |
| Coil Resistance | 6,300 ohms |
| Operating Temp. Range | -40-70°C |
| Protection Category | RT I |
| Switching Voltage | 250 V AC/30 V DC |
| Current Rating | 10 A 30 V DC) UL; 10 A 30 V DC) IEC; 10 A 250 V AC) IEC; 10 A 250 V AC) UL |
| Dielectric Strength | 1000 V AC between contacts with micro disconnection; 5000 V AC between coil and contact with reinforced insulation |
| Overvoltage Category | III |
| Insulation Resistance | 1000 MOhm at 500 V DC |
| Device Presentation | complete product |
| Operating Rate | <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load |
| Relative Humidity | 10-85 % |
| Maximum Switching Voltage | 250 V AC, 30 V DC |
| Range of Product | Harmony Electromechanical Relays |
| Test Levels | level A group mounting |
| Series Name | interface relay |
| Load Current | 10 A 250 V AC |
| Electrical Durability | 100000 cycles NO resistive at 55°C, 100000 cycles NC resistive at 55°C |
| [Ithe] Conventional Enclosed Thermal Current | 10 A -40-55°C |
| Control Type | Lockable test button |
| Resistance | 6300 Ohm +/- 10 % |
| Drop-Out Voltage Threshold | >= 0.3 Uc AC |
| [Ui] Rated Insulation Voltage | 250 V IEC, 300 V CSA, 300 V UL |
| Ambient Air Temperature For Storage | -40-85°C |
| Device Short Name | RXG |
| Product or Component Type | plug-in relay |
| Shock Resistance | 20 gn in operation, 100 gn not in operation |
| Ip Degree of Protection | IP40 |
| Utilisation Coefficient | 0.2 |
| Mechanical Durability | 10,000,000 cycle |
| Ambient Air Temperature For Operation | -40-70°C |
| Torque Value | 0.8 N.m |
| Colour of Cover | standard |
| Minimum Switching Capacity | 500 mW at 100 mA, 5 V DC |
| Vibration Resistance | 3 gn +/- 0.75 mm 10-150 Hz)in operation, 5 gn +/- 0.75 mm 10-150 Hz)not in operation |
| Control Circuit Voltage Limits | 0.8...1.1 Uc AC |
| Average Consumption | 0.82 VA 60 Hz |
| Local Signalling | Flag |
| Status Led | with |
| Pollution Degree | 2 |
| [Ie] Rated Operational Current | 10 A 30 V DC) UL, 10 A 30 V DC) IEC, 10 A 250 V AC) IEC, 10 A 250 V AC) UL |
| Maximum Switching Capacity | 2500 VA |
| [Uc] Control Circuit Voltage | 120 V AC 50/60 Hz |
| Package Quantity | 10 |
