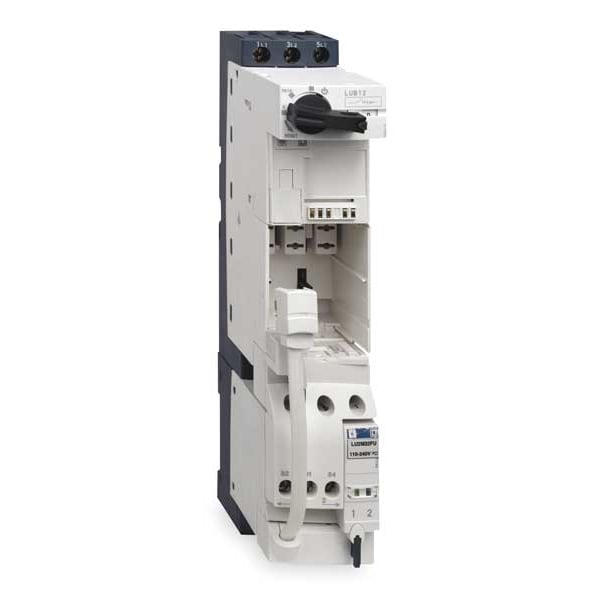

Arrancador de Reversa Power Base, 110 a 240V AC/DC, 3 Polos, 1NC/1NO
| Item | Starter Power Base |
|---|---|
| Overload Relay Amp Setting | Hasta 12A |
| Coil Volts | 110 to 240V AC/DC |
| Auxiliary Contact Form | 1NO, 1NC |
| HP @ 3 Phase - 240V | 3 HP |
| Starter Type | IEC Style |
| Action | Reversing |
| Amps AC | 12 A |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 7.5 HP |
| HP @ 1 Phase - 120V | 1 1/2 hp |
| Standards | CCC, CSA, EAC, Green Premium RoHS/REACH, UL Listed |
| HP @ 3 Phase - 575V | 10 hp |
| HP @ 3 Phase - 208V | 3 HP |
| Depth | 5 in |
| HP @ 1 Phase - 240V | 2 HP |
| Width | 1.77 in |
| Enclosure Type | Open |
| Height | 8.82 in |
| Hz | 50/60 |
| Features | Mercury Free; Resistance to Fire, Electrostatic Discharge, Fast Transients, Radiated Fields, Shock & Vibration; Suitability For Isolation |
| HP @ 1 Phase - 230V | 2 |
| Operating Voltage | 690V AC |
| Weight | 1.27 kg |
| Reversing Capability | Reversing |
| Starter Style | IEC |
| Overall Height | 8.82 in |
| Compatible with Series | TeSys Ultra |
| Horsepower @ Three Phase - 240V AC | 3 HP |
| Horsepower @ Three Phase - 600V AC | 10 HP |
| Overall Width | 1.77 in |
| Frequency | 50/60 Hz |
| Horsepower @ Three Phase - 208V AC | 3 HP |
| Horsepower @ Three Phase - 480V AC | 7.5 HP |
| Maximum Overload Relay Current Setting | 12 A |
| Overall Depth | 4.96 in |
| Coil Voltage | 110-240V AC/DC |
| Horsepower @ Single Phase - 120V AC | 1.5 HP |
| NEMA Enclosure Rating | No Enclosure |
| Horsepower @ Single Phase - 240V AC | 2 HP |
| Maximum Voltage Rating | 690 V AC |
| Safety Reliability Level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Product Compatibility | Control unit LUC.X6FU; Control unit LUC.1XFU; Control unit LUC.05FU; Control unit LUC.12FU |
| Rated Operational Voltage | 690 V AC power circuit |
| Fixing Mode | Clipped DIN rail; Screw-fixed plate |
| Ambient Air Temperature For Operation | -13 to 140°F (-25 to 60°C) with LUCM; -13 to 158°F (-25 to 70°C) with LUCA, LUCB, LUCC, LUCD |
| Shock Resistance | 10 gn power poles open IEC 60068-2-27; 15 gn power poles closed IEC 60068-2-27 |
| Rated Service Breaking Capacity | 50 kA 230 V; 50 kA 440 V; 10 kA 500 V; 4 kA 690 V |
| Typical Current Consumption | 1000 mA 110 to 220 V DC I maximum while closing; 1000 mA 110 to 240 V AC I maximum while closing |
| Operating Time | 150 ms with change of direction power circuit; 35 ms opening control circuit; 75 ms without change of direction power circuit; 50 ms closing control circuit |
| Inrush Restraint Duration | 25 ms AC 50/60 Hz; 15 ms DC |
| Rated Insulation Voltage | 690 V IEC 60947-6-2 3; 600 V UL 60947-4-1; 600 V CSA C22.2 No 60947-4-1 |
| Control Circuit Voltage Limits | 55 V DC drop-out; 55 V AC drop-out; 88 to 242 V DC in operation; 88 to 264 V AC in operation |
| Poles Description | 3P |
| Resistance To Fast Transients | 2 kV 3 serial link IEC 61000-4-4; 4 kV 4 all circuits except for serial link IEC 61000-4-4 |
| Resistance To Radiated Fields | 9.14 V/m (10 V/m) 3 IEC 61000-4-3 |
| Product Or Component Type | power base |
| Operating Altitude | 6561.68 ft (2000 m) |
| Product Certifications | CCC, CSA, EAC, UL, ASEFA, ATEX, CE, Marine |
| Safe Separation Of Circuit | 400 V SELV between the control and auxiliary circuits IEC 60947-1 appendix N; 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1 appendix N |
| Maximum Operating Rate | 3600 cyc/h |
| Network Frequency | 40 to 60 Hz |
| Fire Resistance | 1760°F (960°C) parts supporting live components IEC 60695-2-12; 1202°F (650°C) IEC 60695-2-12 |
| Compatibility Code | LU2B |
| Immunity To Radioelectric Fields | 10 V IEC 61000-4-6 |
| Device Application | Motor control; Motor protection |
| Protective Treatment | TH IEC 60068 |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Utilisation Category | AC-41, AC-43, AC-44 |
| Conventional Free Air Thermal Current | 12 A |
| Tightening Torque | Control circuit 7.08 to 10.62 lbf.in (0.8 to 1.2 N.m) flat 0.20 in (5 mm); Control circuit 7.08 to 10.62 lbf.in (0.8 to 1.2 N.m) Philips no 1 0.20 in (5 mm); Power circuit 16.82 to 22.13 lbf.in (1.9 to 2.5 N.m) flat 0.24 in (6 mm); Power circuit 16.82 to 22.13 lbf.in (1.9 to 2.5 N.m) Philips No 2 0.24 in (6 mm); Power circuit 16.82 to 22.13 lbf.in (1.9 to 2.5 N.m) pozidriv No 2 0.24 in (6 mm) |
| Auxiliary Contacts Type | Linked contacts 1 NO + 1 NC) IEC 60947-4-1; Mirror contact 1 NC) IEC 60947-1 |
| Vibration Resistance | 2 gn 5 to 300 Hz) power poles open IEC 60068-2-27; 4 gn 5 to 300 Hz) power poles closed IEC 60068-2-27 |
| Control Circuit Voltage | 110 to 240 V AC 50/60 Hz; 110 to 220 V DC |
| Immunity To Voltage Dips | 70% / 500 ms IEC 61000-4-11 |
| Suitability For Isolation | Yes |
| IP Degree Of Protection | IP20 IEC 60947-1 front panel and wired terminals); IP20 IEC 60947-1 other faces); IP40 IEC 60947-1 front panel outside connection zone) |
| Resistance To Electrostatic Discharge | 8 kV 3 in open air IEC 61000-4-2; 8 kV 4 on contact IEC 61000-4-2 |
| Immunity To Microbreaks | 3 msec |
| Connections - Terminals | Control circuit screw clamp terminals 1 0.00 to 0.00 in² (0.34 to 1.5 mm²) flexible with cable end; Control circuit screw clamp terminals 1 0.00 to 0.00 in² (0.75 to 1.5 mm²) flexible without cable end; Control circuit screw clamp terminals 1 0.00 to 0.00 in² (0.75 to 1.5 mm²) rigid; Control circuit screw clamp terminals 2 0.00 to 0.00 in² (0.34 to 1.5 mm²) flexible with cable end; Control circuit screw clamp terminals 2 0.00 to 0.00 in² (0.75 to 1.5 mm²) flexible without cable end; Control circuit screw clamp terminals 2 0.00 to 0.00 in² (0.75 to 1.5 mm²) rigid; Power circuit screw clamp terminals 1 0.00 to 0.02 in² (1 to 10 mm²) rigid; Power circuit screw clamp terminals 1 0.00 to 0.01 in² (1 to 6 mm²) flexible with cable end; Power circuit screw clamp terminals 1 0.00 to 0.02 in² (2.5 to 10 mm²) flexible without cable end; Power circuit screw clamp terminals 2 0.00 to 0.01 in² (1 to 6 mm²) flexible with cable end; Power circuit screw clamp terminals 2 0.00 to 0.01 in² (1 to 6 mm²) rigid; Power circuit screw clamp terminals 2 0.00 to 0.01 in² (1.5 to 6 mm²) flexible without cable end |
| Ambient Air Temperature For Storage | -40 to 185°F |
| Mechanical Durability | 15 Mcycles |
| Non-Dissipating Shock Wave | 1 kV serial mode IEC 60947-6-2; 2 kV common mode IEC 60947-6-2 |
| Heat Dissipation | 2 W control circuit with LUCA, LUCB, LUCC, LUCD; 1.7 W control circuit with LUCM |
| Rated Operational Current | 12 A Less than or Equal to 440 V; 12 A 500 V; 9 A 690 V |
| Rated Impulse Withstand Voltage | 6 kVIEC 60947-6-2 |
| Package Quantity | 1 |
