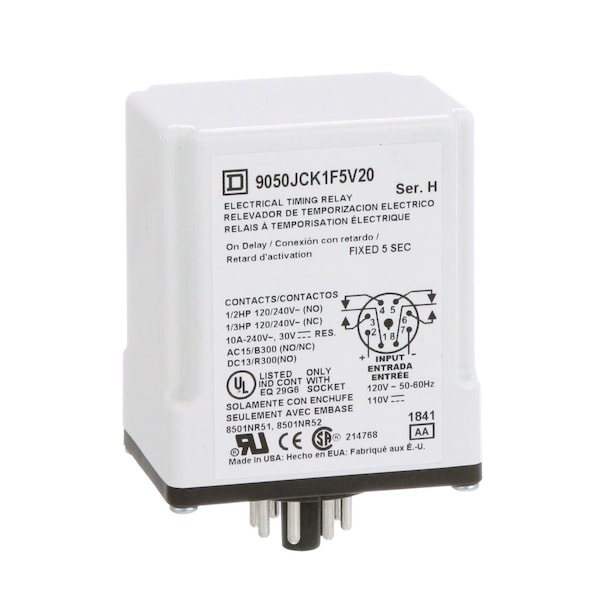

Relé de tiempo, Tipo JCK, enchufable, de retardo a la conexión, tiempo fijo, 5 segundos, 10A, 240 VCA, 120 VCA/110 VCD.
| Standards | UL Recognized, UL Listed, CE |
|---|---|
| Item | Timer Relay,240VAC,10A,T-jck |
| Depth | 104 mm |
| Width | 43 mm |
| Height | 61 mm |
| Range of Product | 9050JCK |
| Mounting Support | socket |
| Switch Function | DPDT |
| Contacts Material | silver nickel |
| Maximum Switching Voltage | 240 V AC |
| Product Compatibility | 8501NR51, 8501NR52 |
| Time Delay Type | on-delay |
| Pin Number | 8 |
| Time Delay Range | 5 s |
| Hold-In Power Consumption In Va | 2 to 2 VA |
| Shape of Pin | tubular |
| Contacts Type And Composition | 2 NO + 2 NC |
| Ambient Air Temperature For Operation | -18-150°F |
| Product or Component Type | timer |
| [Uc] Control Circuit Voltage | 120 V AC, 110 V DC |
| Line Rated Current | 10 A |
| Package Quantity | 1 |
