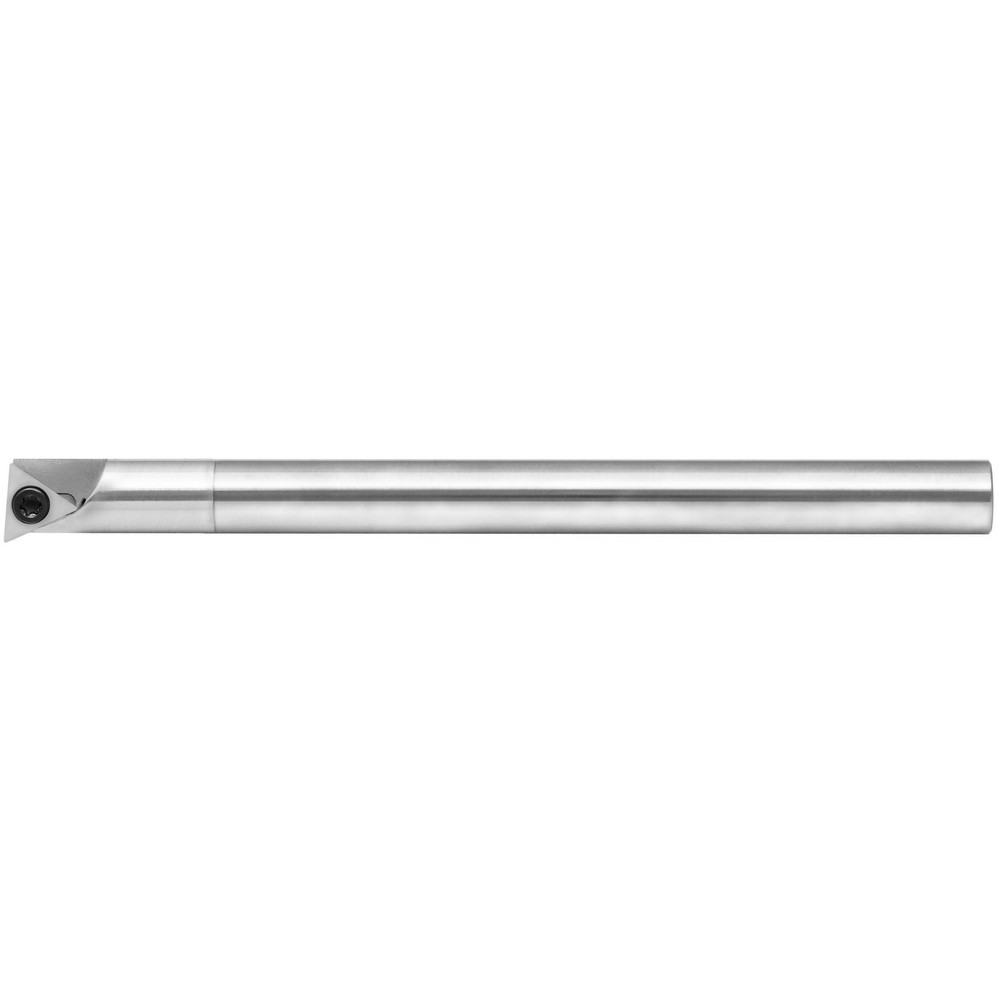

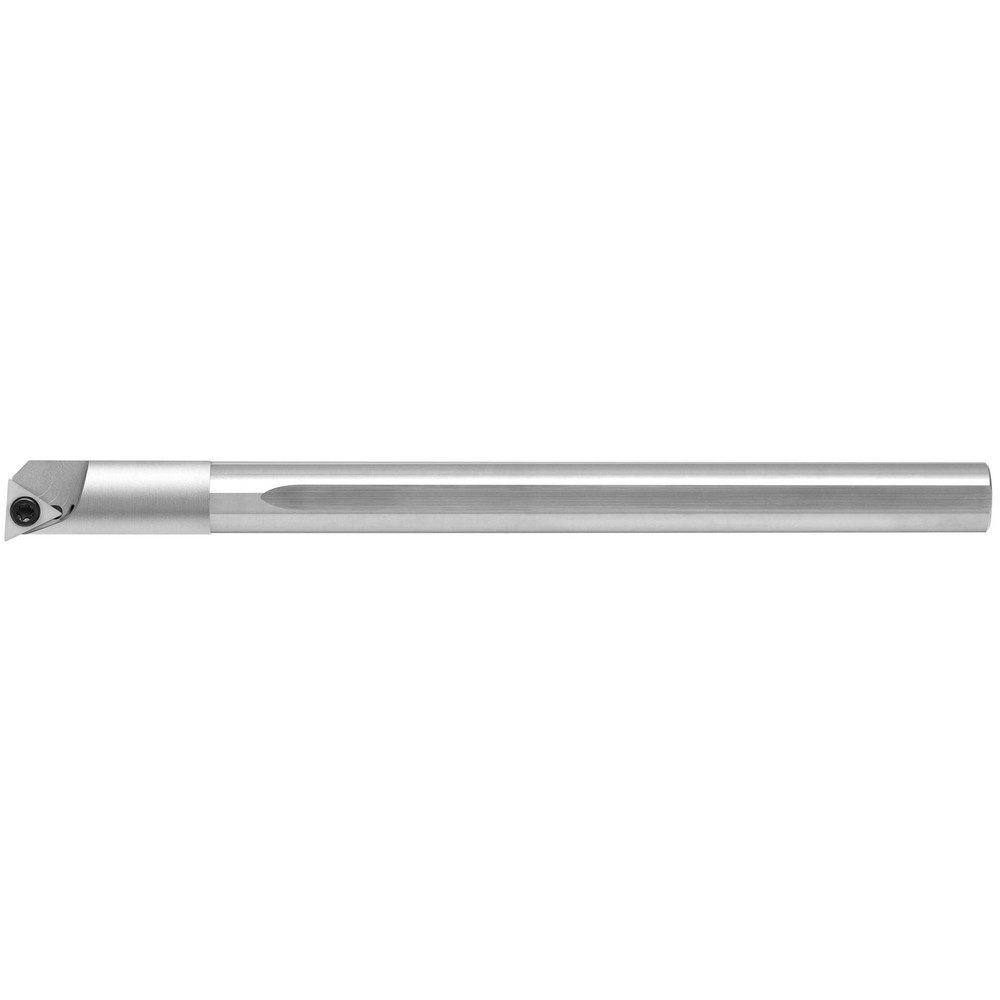

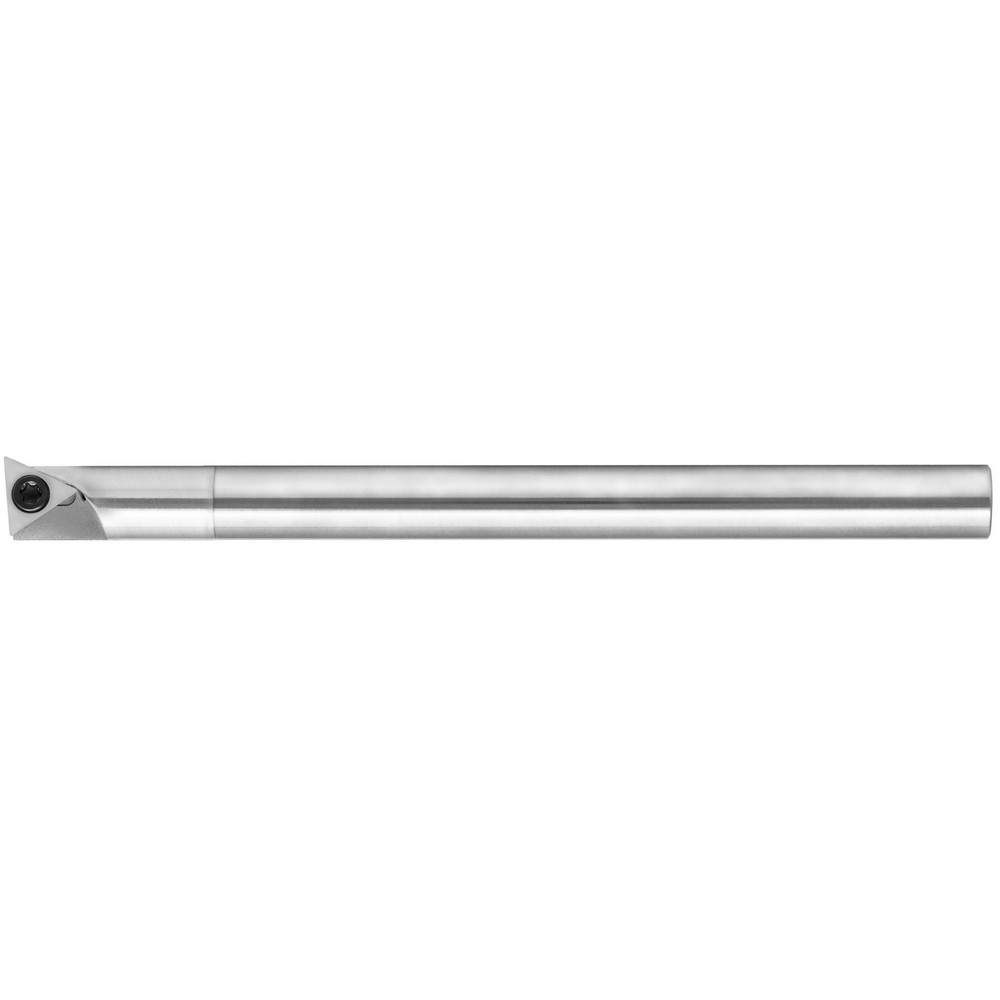

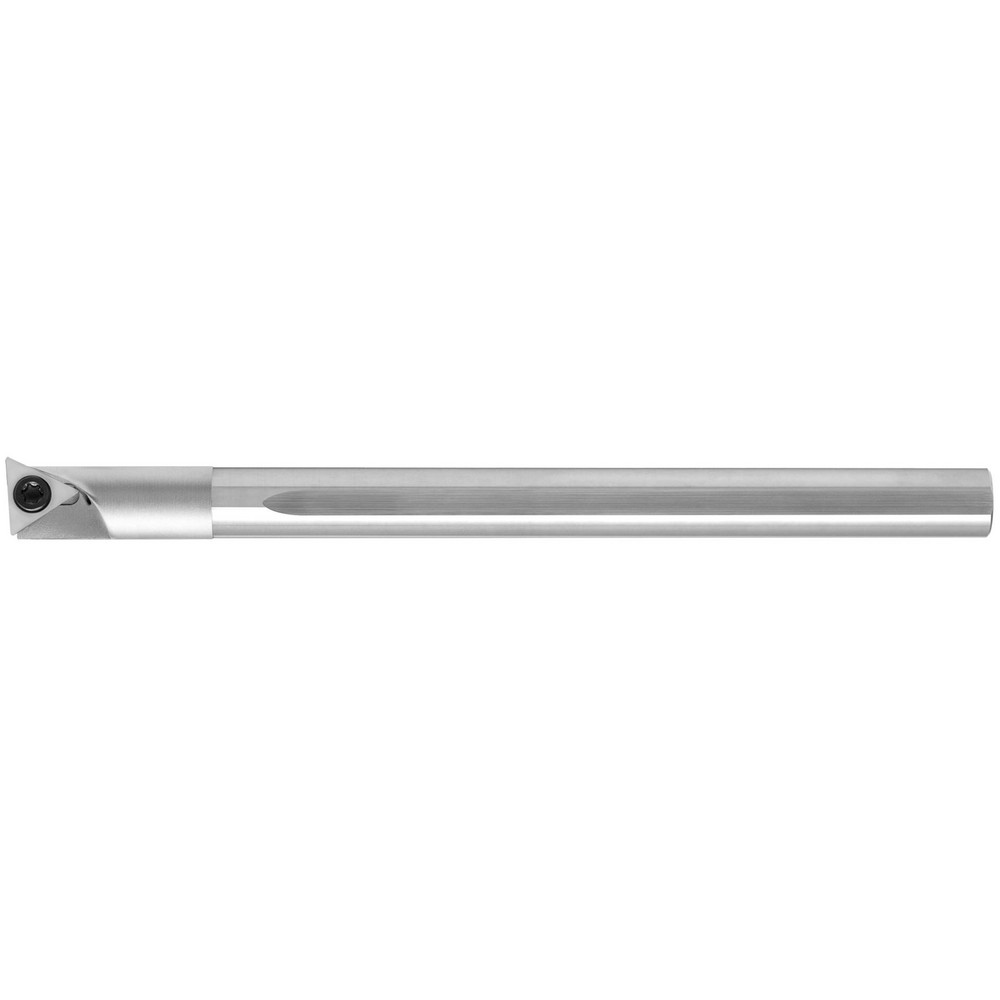

5.5000" OAL, Screw, Uses ATP2.. Inserts
| Minimum Bore Diameter (Decimal Inch) | 0.4300 |
|---|---|
| Toolholder Style | ADBT |
| Minimum Bore Diameter Using Triangle Insert Cartridge (Decimal Inch) | 0.4300 |
| Tool Material | Steel (Head); Solid Carbide (Shank) |
| Insert Compatibility | ATP2.. |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 3/8 |
| Overall Length (Decimal Inch) | 5.5000 |
| Overall Length (Inch) | 5-1/2 |
| Compatible Insert Size Code | 2 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Triangle |
| Insert Included | No |
| Lead Angle | 0 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Compatible Insert Thickness (Decimal Inch) | 0.0960 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (Decimal Inch) | 0.2290 |
| Primary Workpiece Material | Non-Ferrous Metal |
| UNSPSC Code | 23241601 |
| Insert Thickness (Decimal Inch) | 0.0960 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 43914647 |
