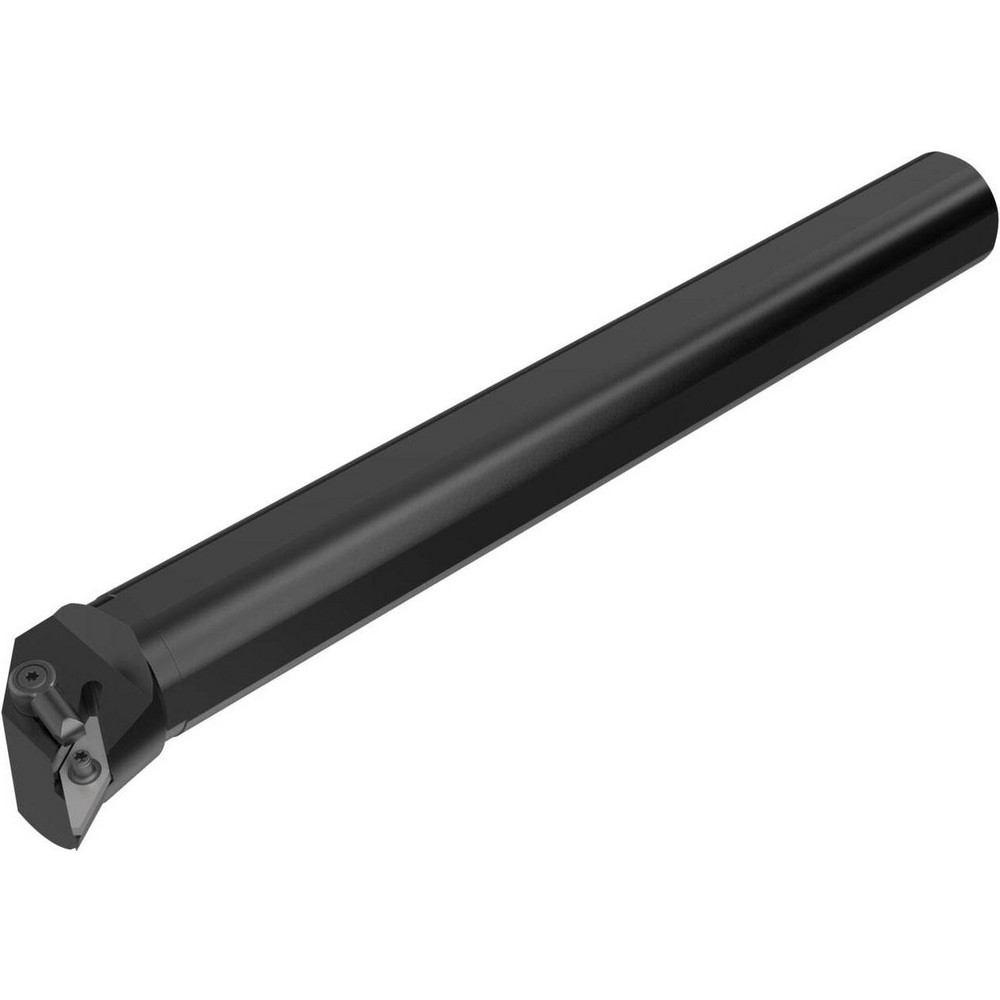

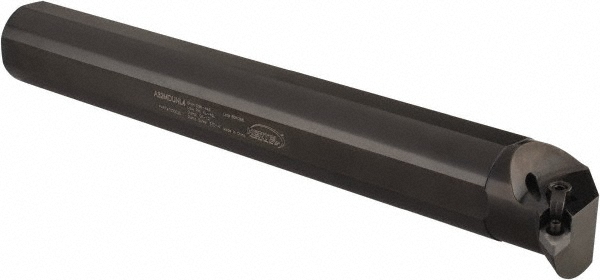

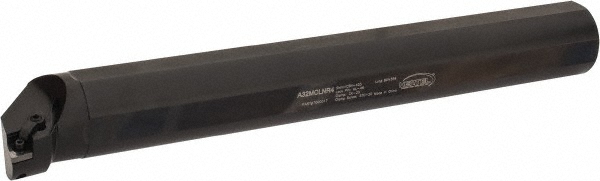

16.0000" OAL, Pin & Clamp, Uses VNMG 332 Inserts
| Minimum Bore Diameter (Decimal Inch) | 2.5000 |
|---|---|
| Toolholder Style | A-MVPN |
| Tool Material | Steel |

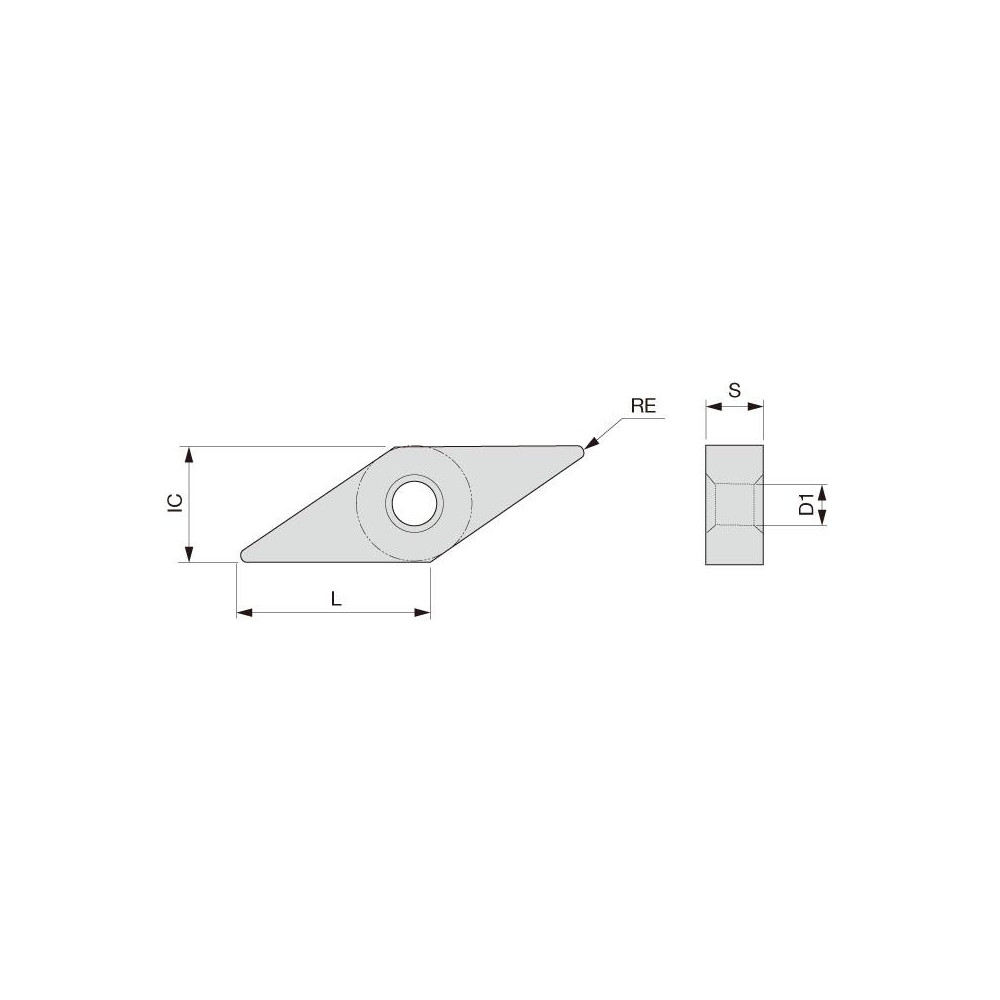

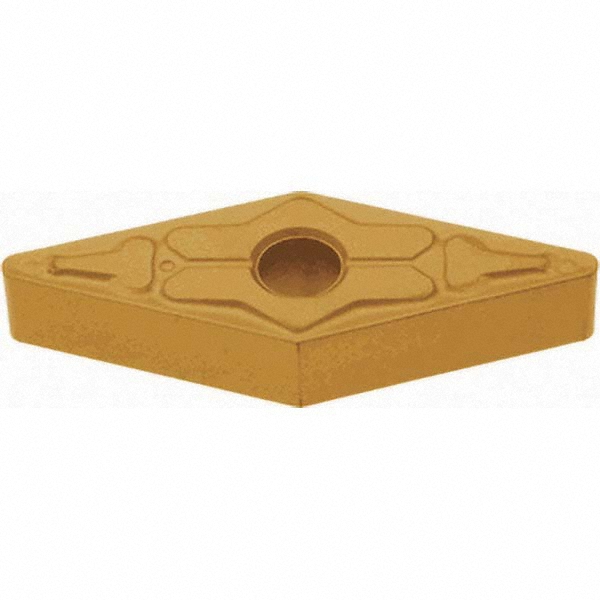

| Insert Compatibility | VNMG 332 |
| Hand of Holder | Left Hand |
| Shank Diameter (Inch) | 2 |
| Overall Length (Decimal Inch) | 16.0000 |
| Compatible Insert Size Code | 33 |

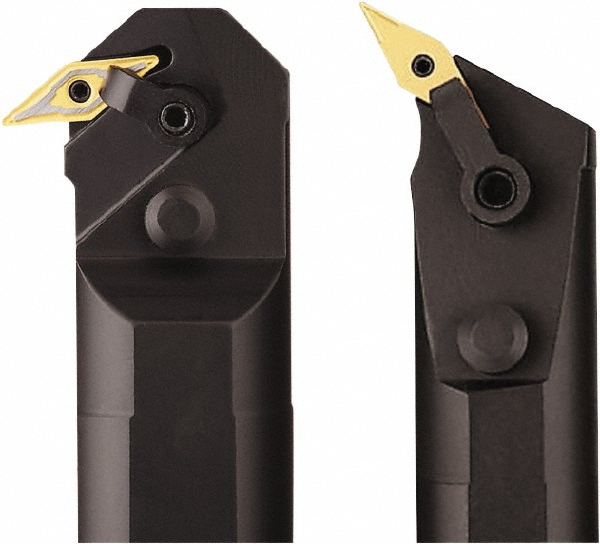

| Insert Holding Method | Pin & Clamp |
| Compatible Insert Shape | Diamond |
| Rake | Negative |
| Rake Angle | -5.00 |

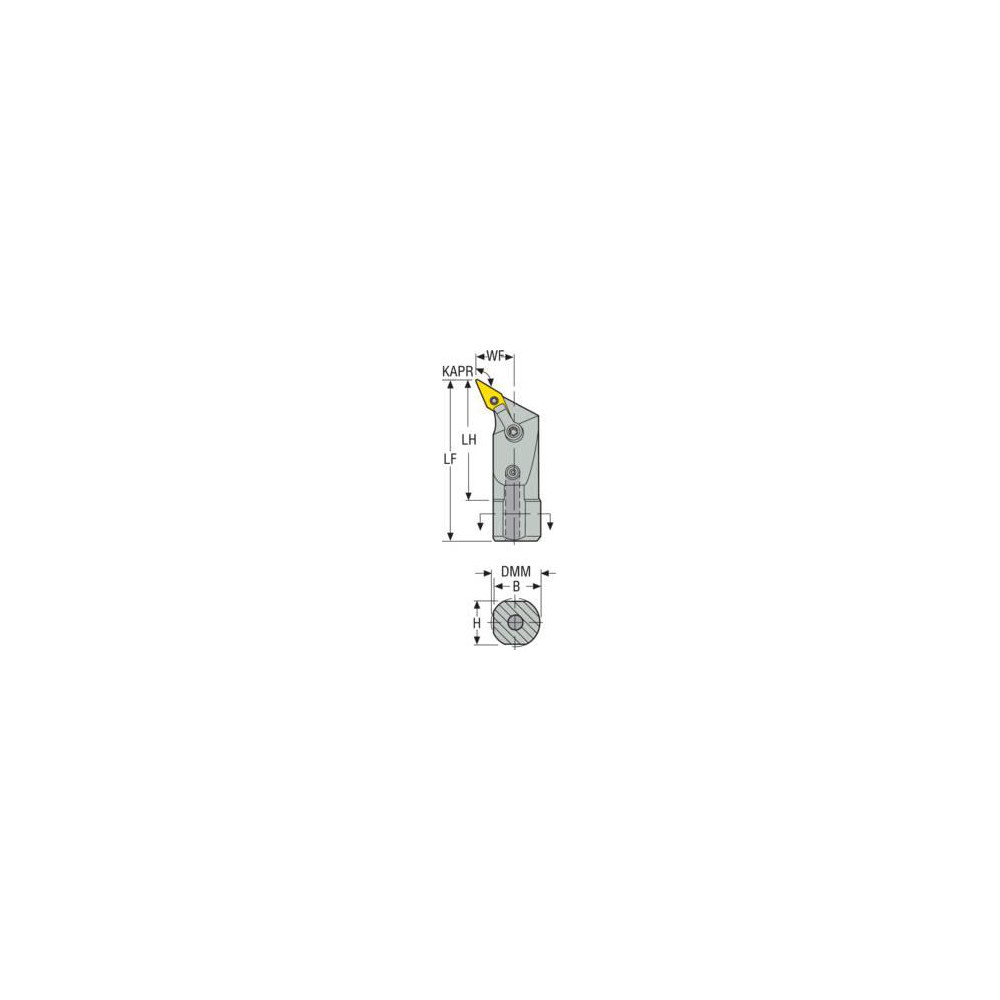

| Lead Angle | 95 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Multi-use Tool | No |
| Cutting Tool Application | Turning; Boring |
| Center to Cutting Edge (Decimal Inch) | 1.2500 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Thickness (Inch) | 3/16 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 76742444 |
