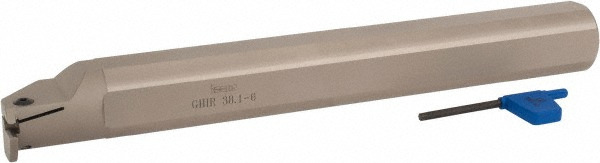

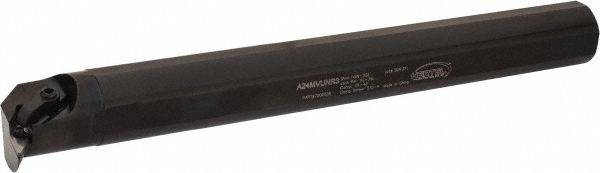

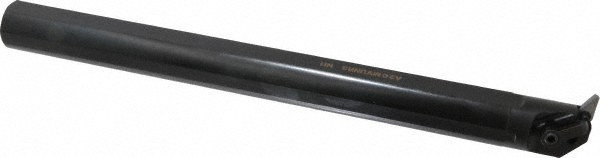

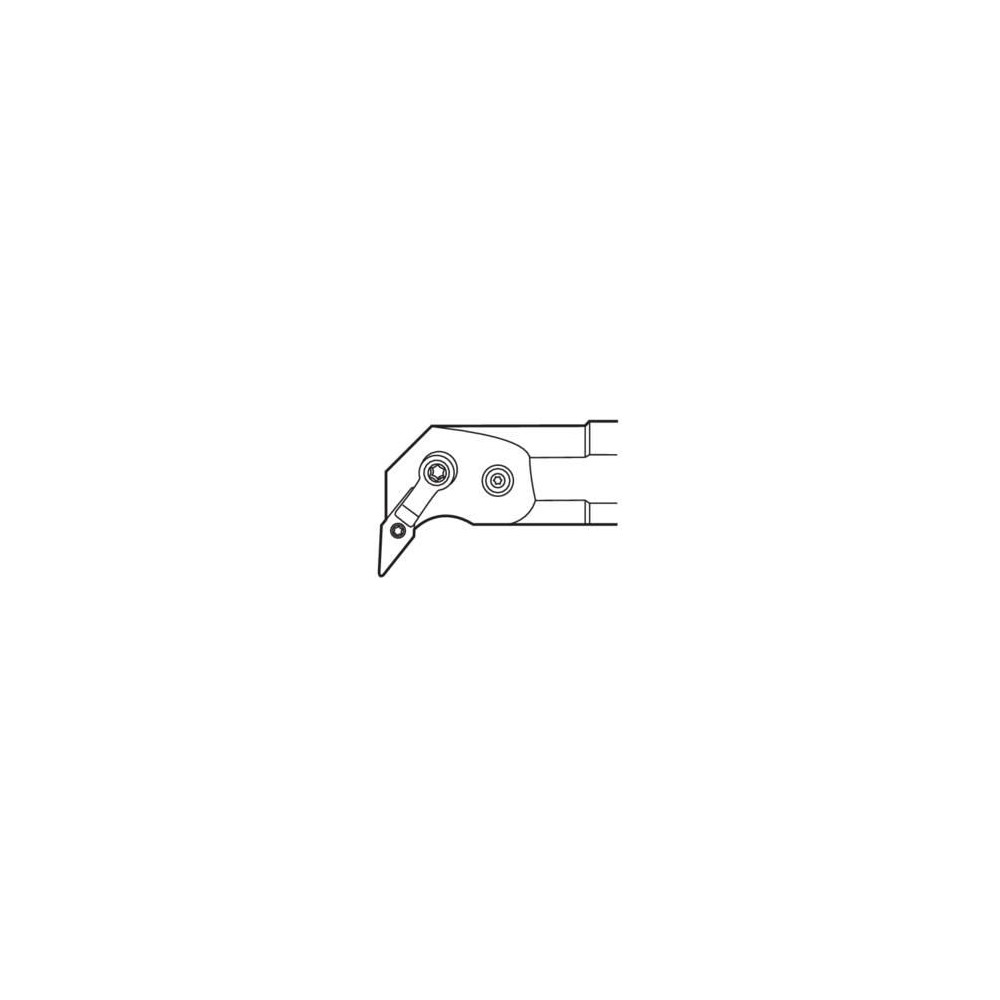

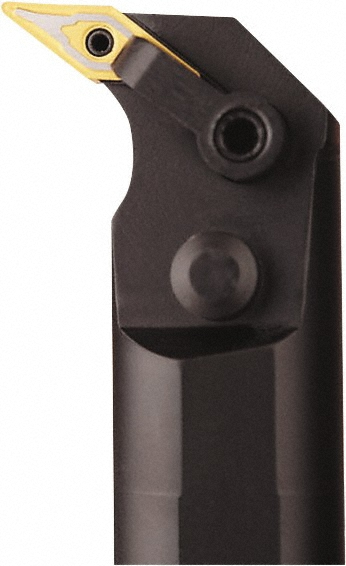

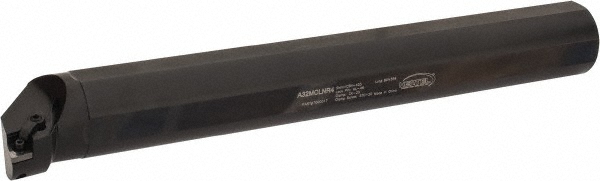

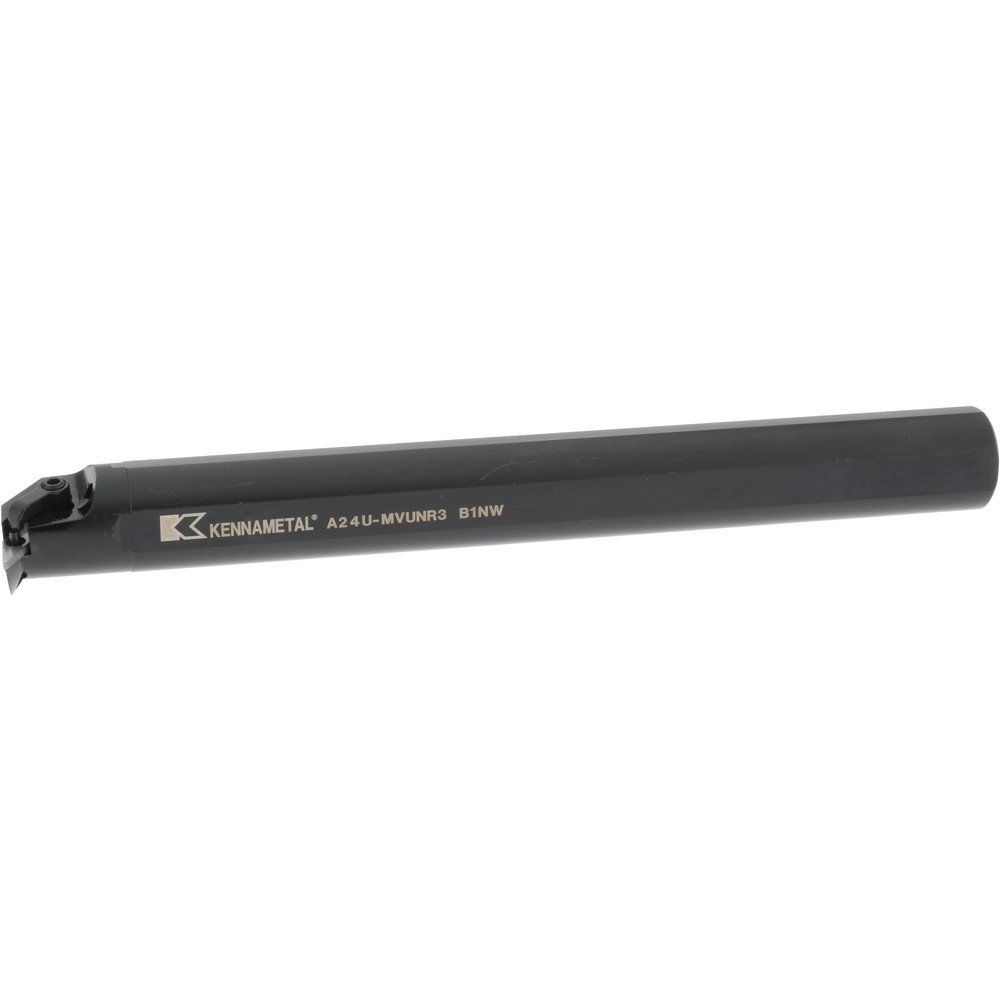

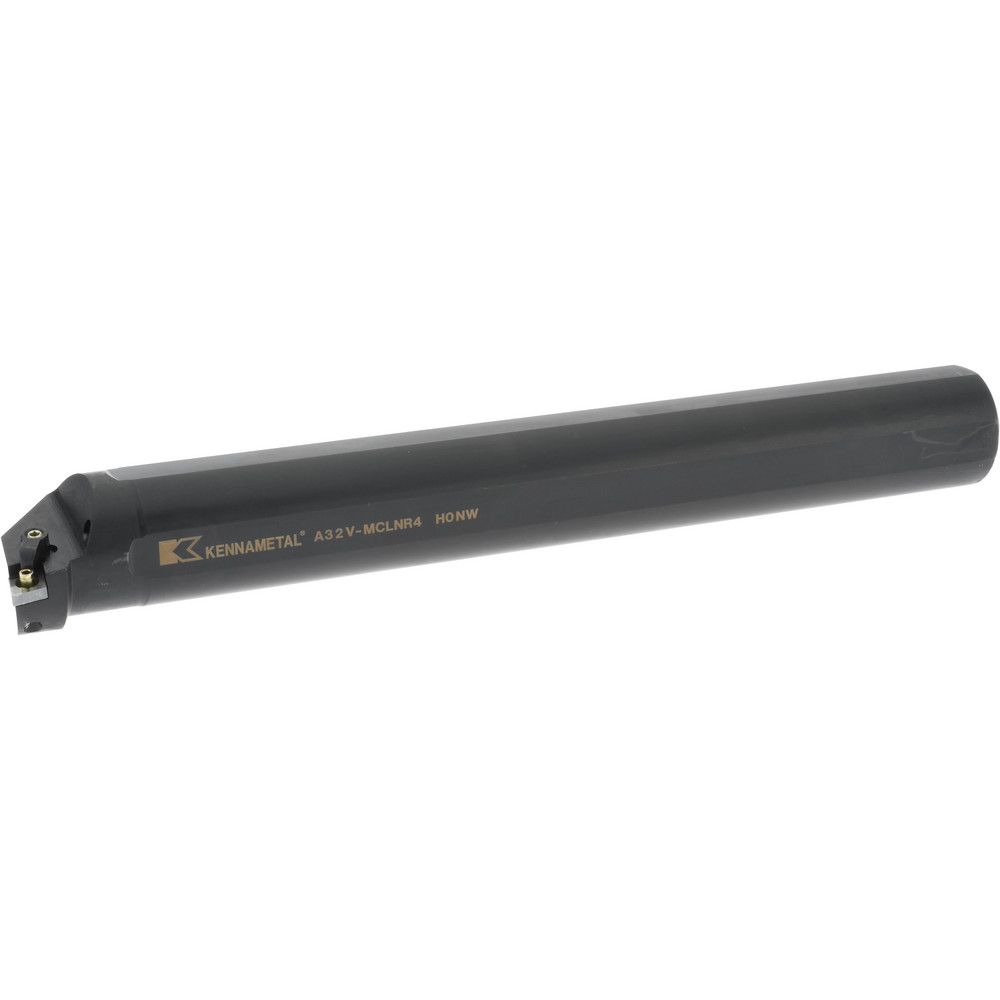

16.0000" OAL, Pin & Clamp, Uses VNMG 432 Inserts

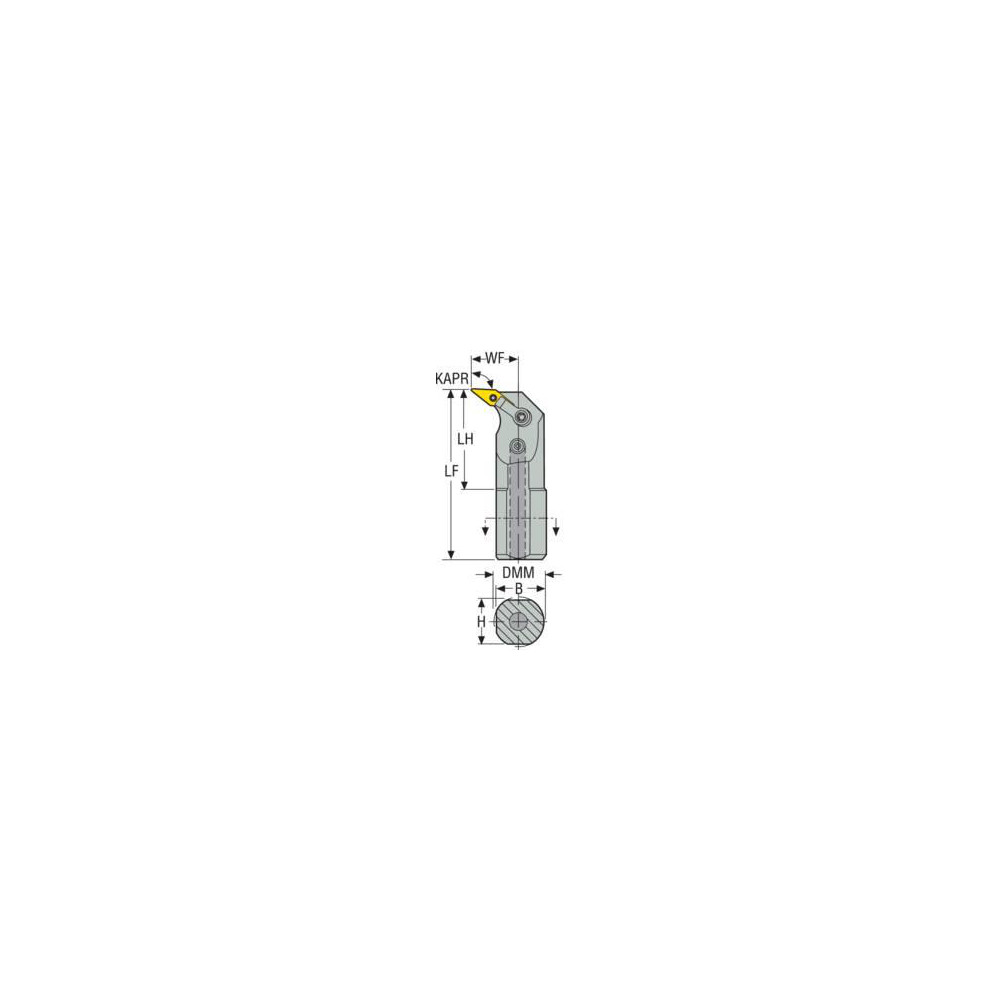

| Minimum Bore Diameter (Decimal Inch) | 3.2500 |
|---|---|
| Toolholder Style | A-MVUN |
| Tool Material | Steel |

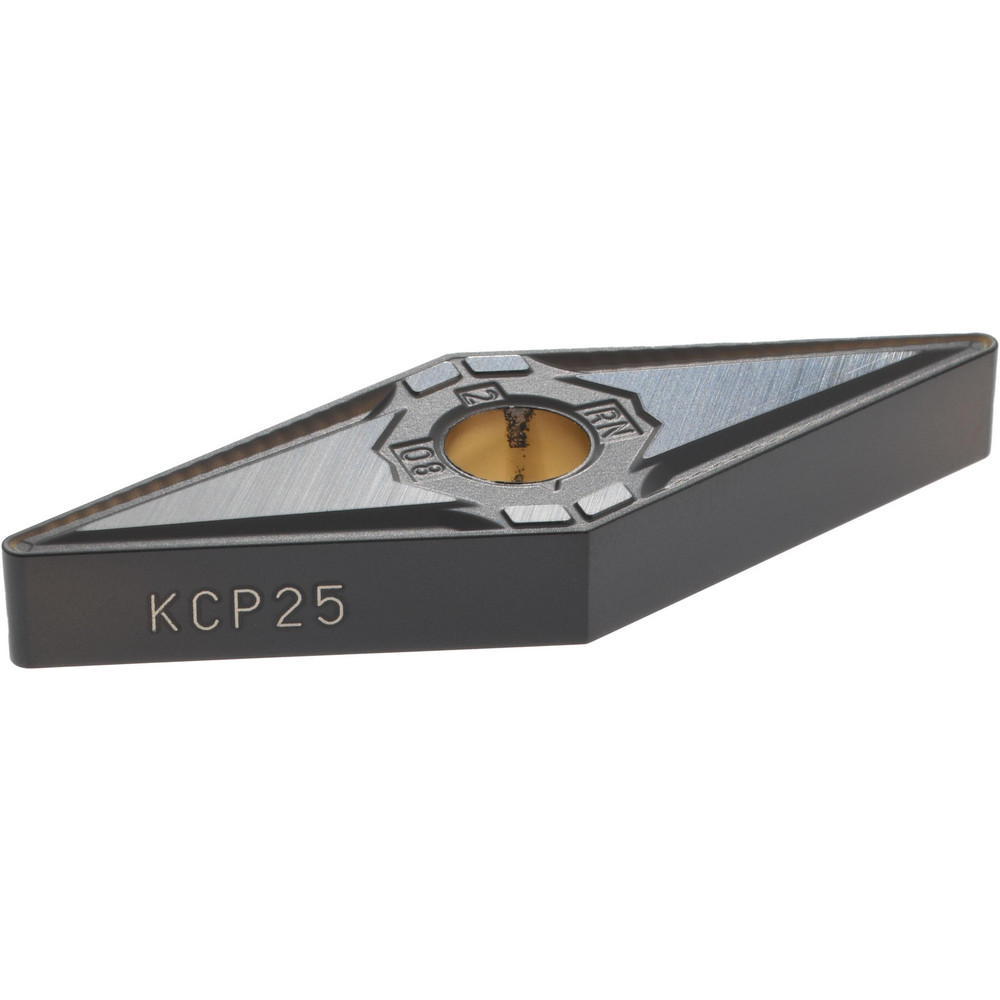

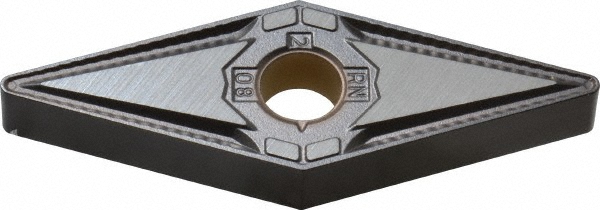

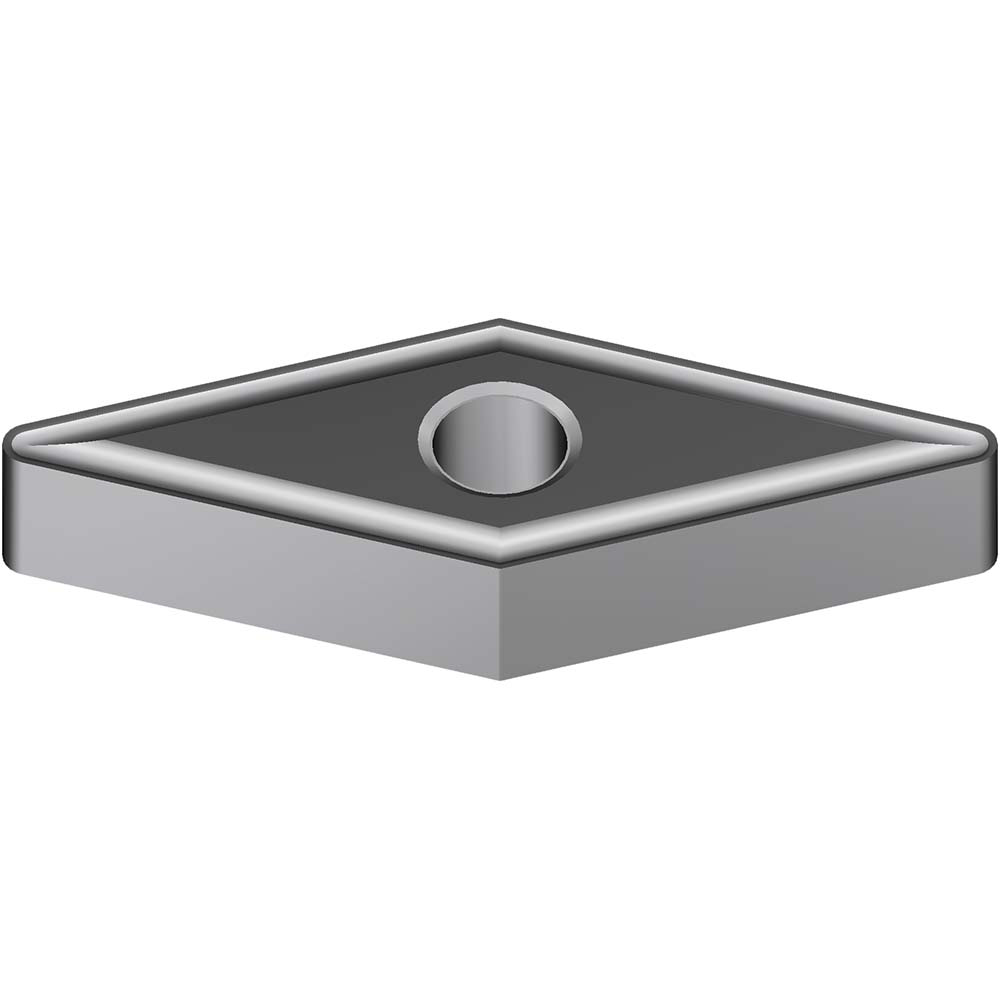

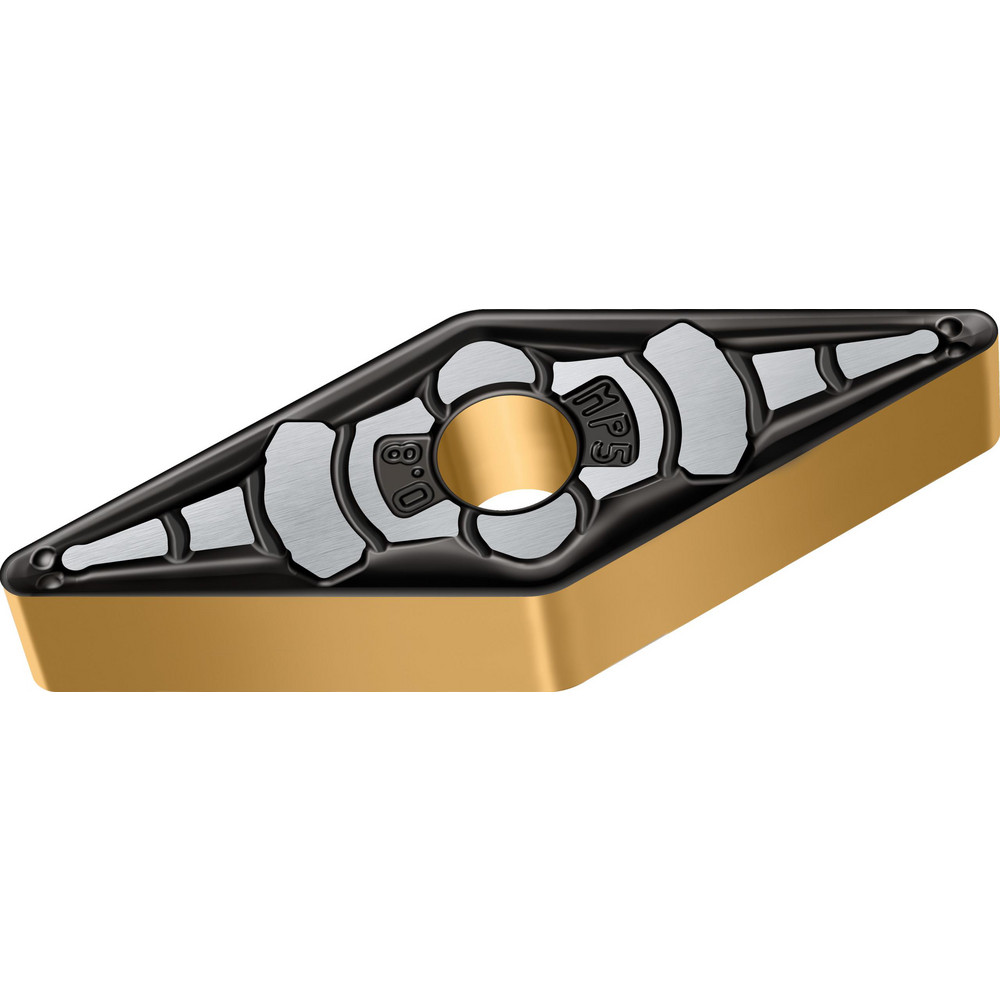

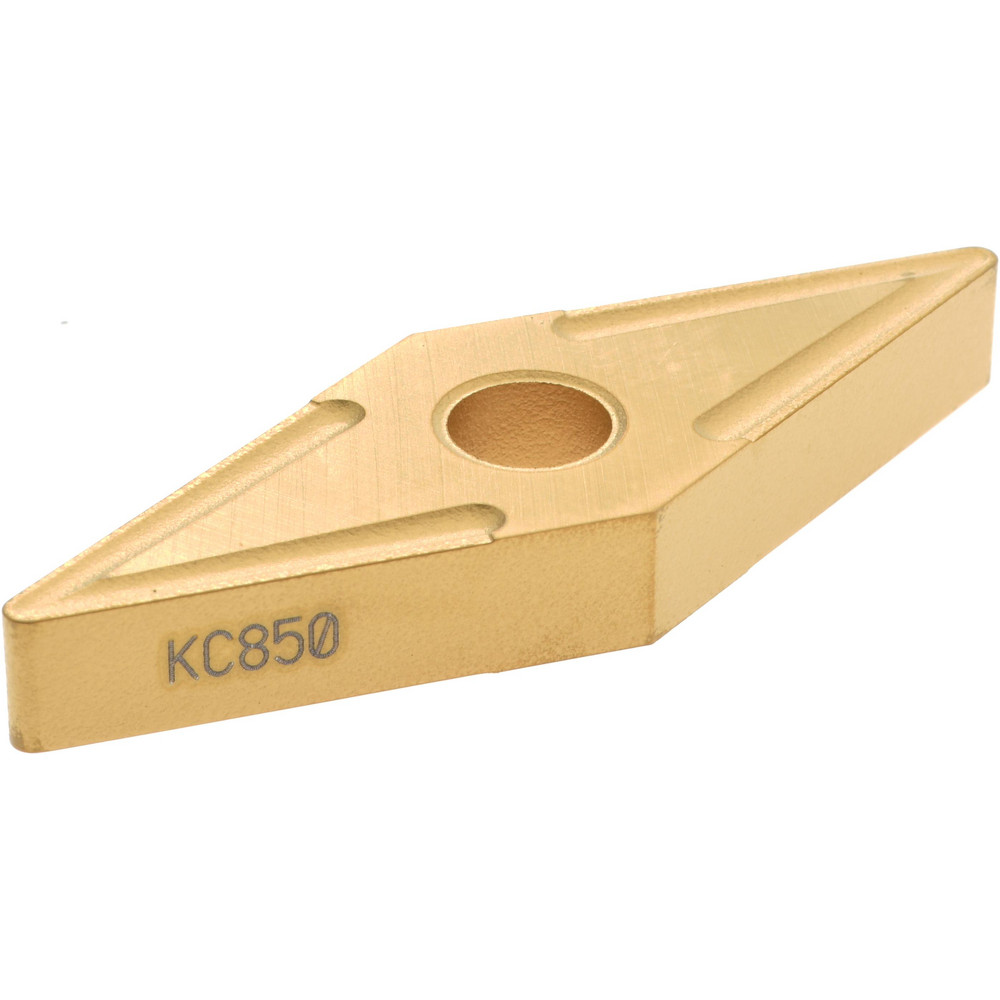

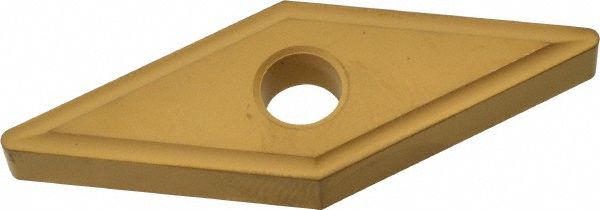

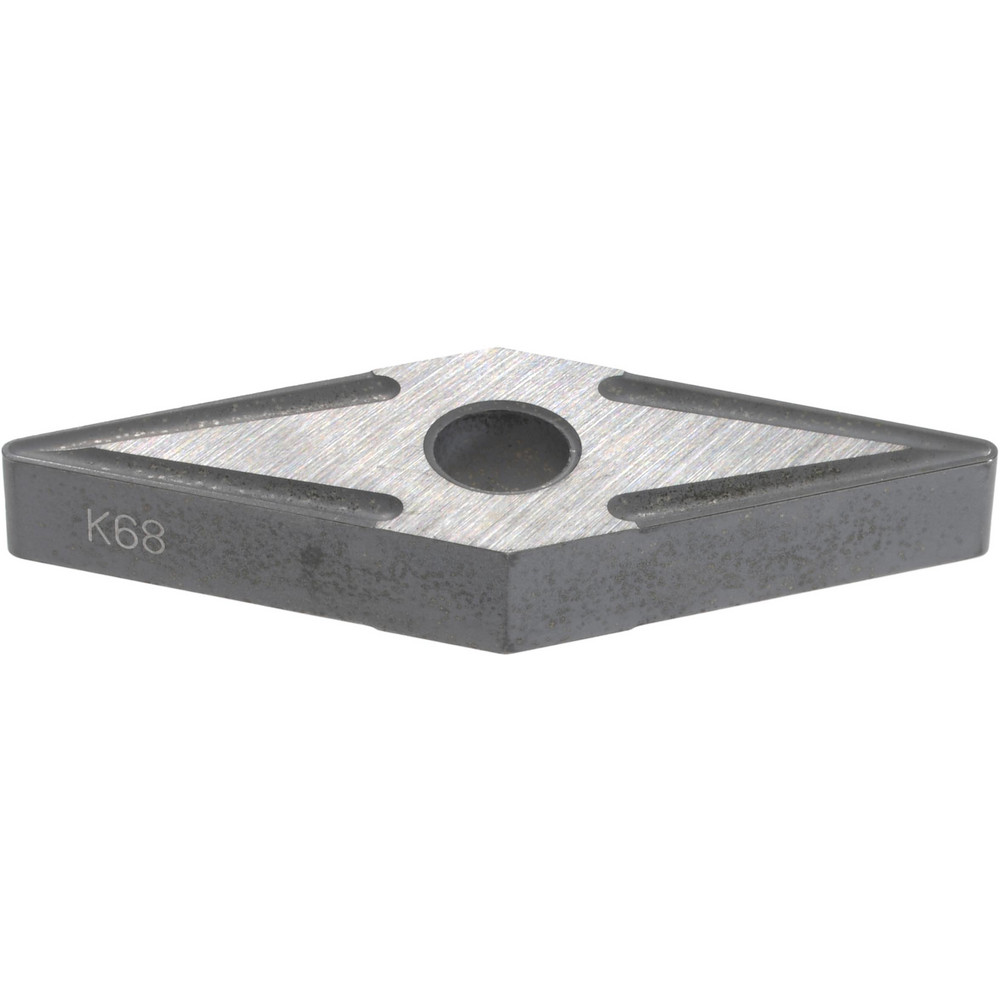

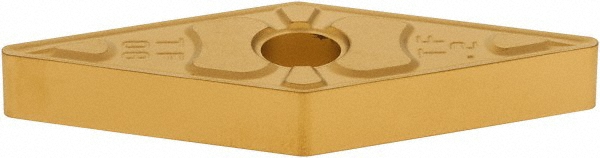

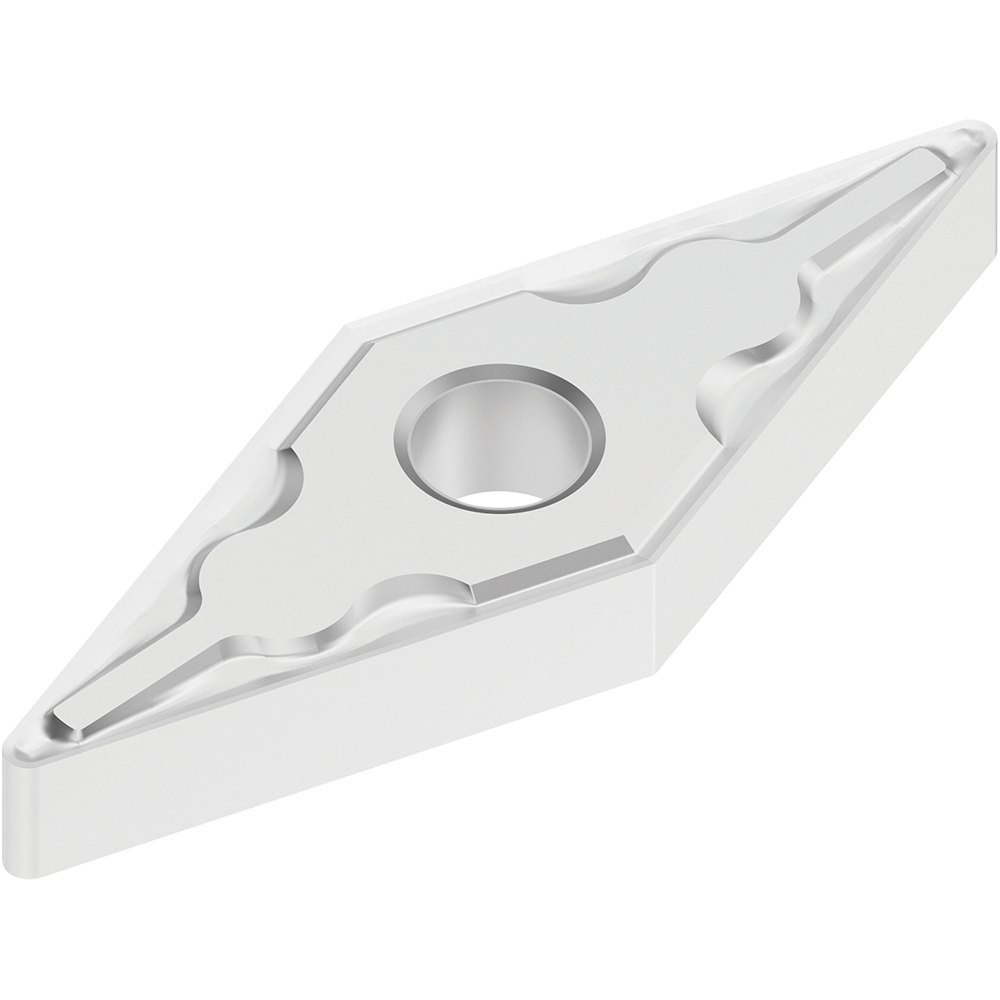

| Insert Compatibility | VNMG 432 |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 2 |
| Overall Length (Decimal Inch) | 16.0000 |
| Compatible Insert Size Code | 43 |

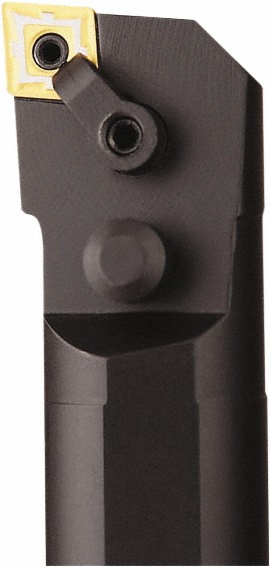

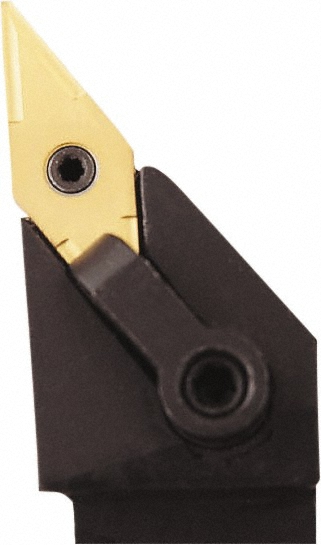

| Insert Holding Method | Pin & Clamp |
| Compatible Insert Shape | Diamond |
| Rake | Negative |
| Rake Angle | -5.00 |
| Lead Angle | 93 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Multi-use Tool | No |
| Cutting Tool Application | Turning; Boring |
| Center to Cutting Edge (Decimal Inch) | 1.6250 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Thickness (Inch) | 3/16 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 76742311 |
