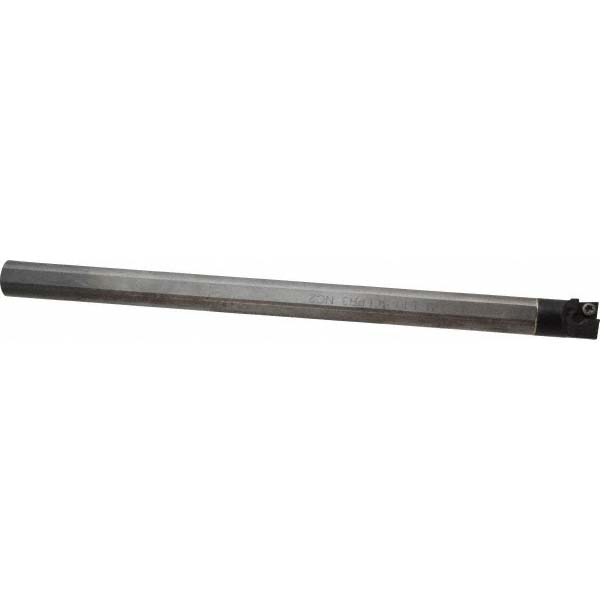

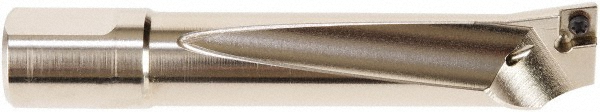

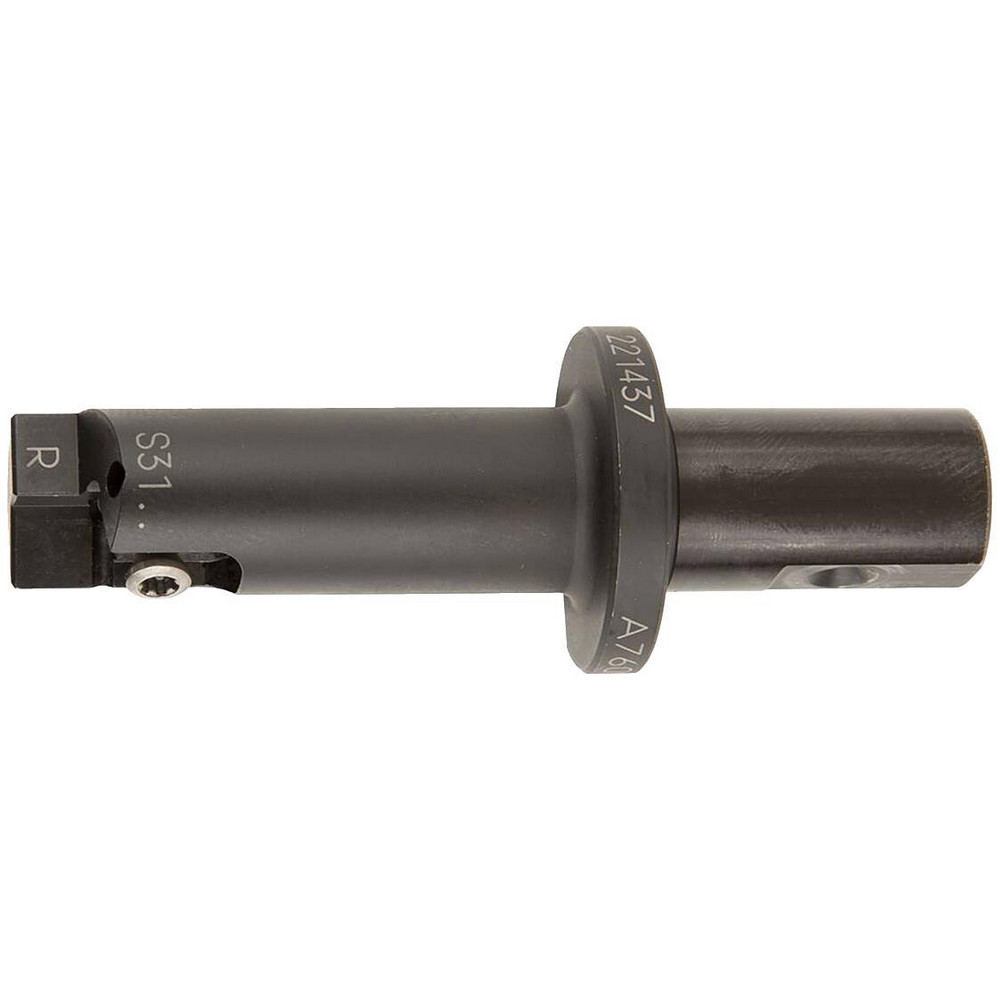

Screw, Uses WB.. 0301.. Inserts
| Minimum Bore Diameter (mm) | 5.99 |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 0.2360 |
| Maximum Bore Depth (Decimal Inch) | 1.0630 |
| Maximum Bore Depth (mm) | 27.00 |
| Minimum Bore Diameter Using Diamond Insert Cartridge (Decimal Inch) | 0.2360 |
| Tool Material | Solid Carbide |
| Insert Compatibility | WB.. 0301.. |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Inch) | 5/8 |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Multi-use Tool | No |

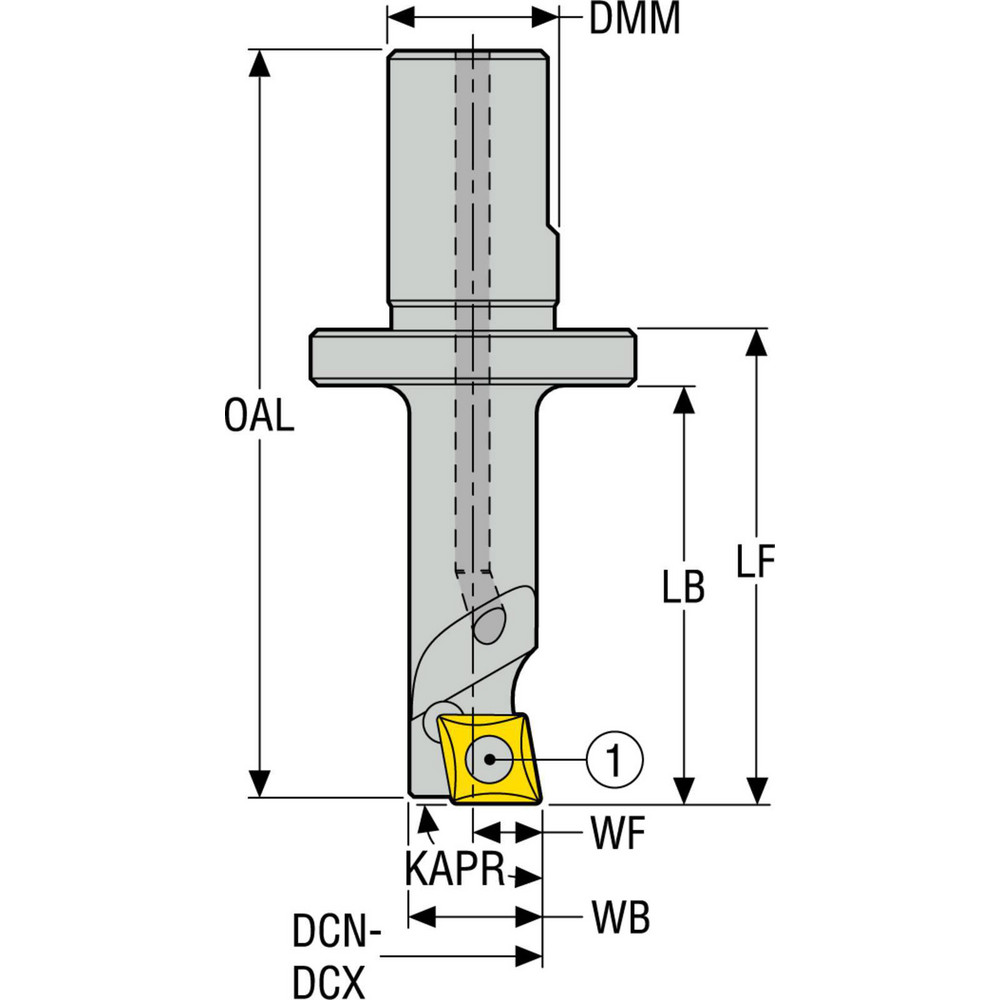

| Center to Cutting Edge (Decimal Inch) | 0.1140 |
| Center to Cutting Edge (mm) | 2.90 |
| Maximum Bore Diameter (mm) | 8.00 |
| UNSPSC Code | 23241601 |
| Maximum Bore Diameter (Decimal Inch) | 0.3150 |
| Maximum Bore Diameter Using Diamond Insert Cartridge (Decimal Inch) | 0.3150 |
| Coolant Through | Yes |
| Country of Origin | Germany |
| MSC Number | MSC# 68852151 |
