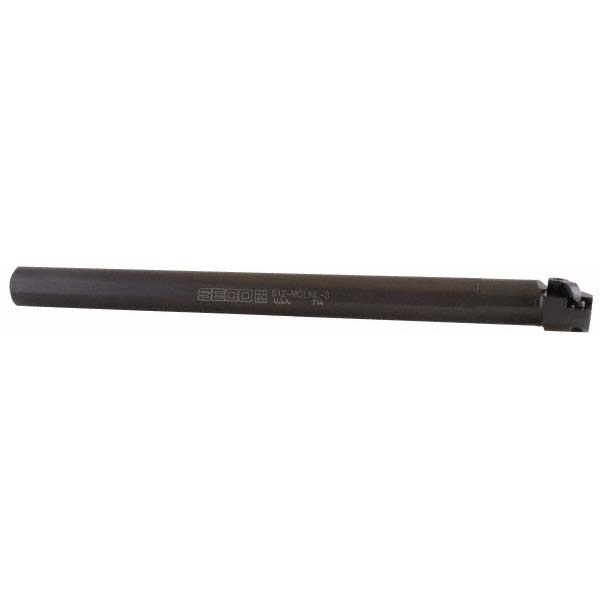

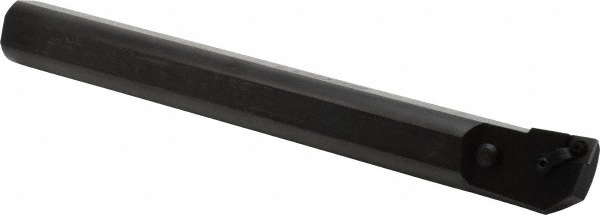

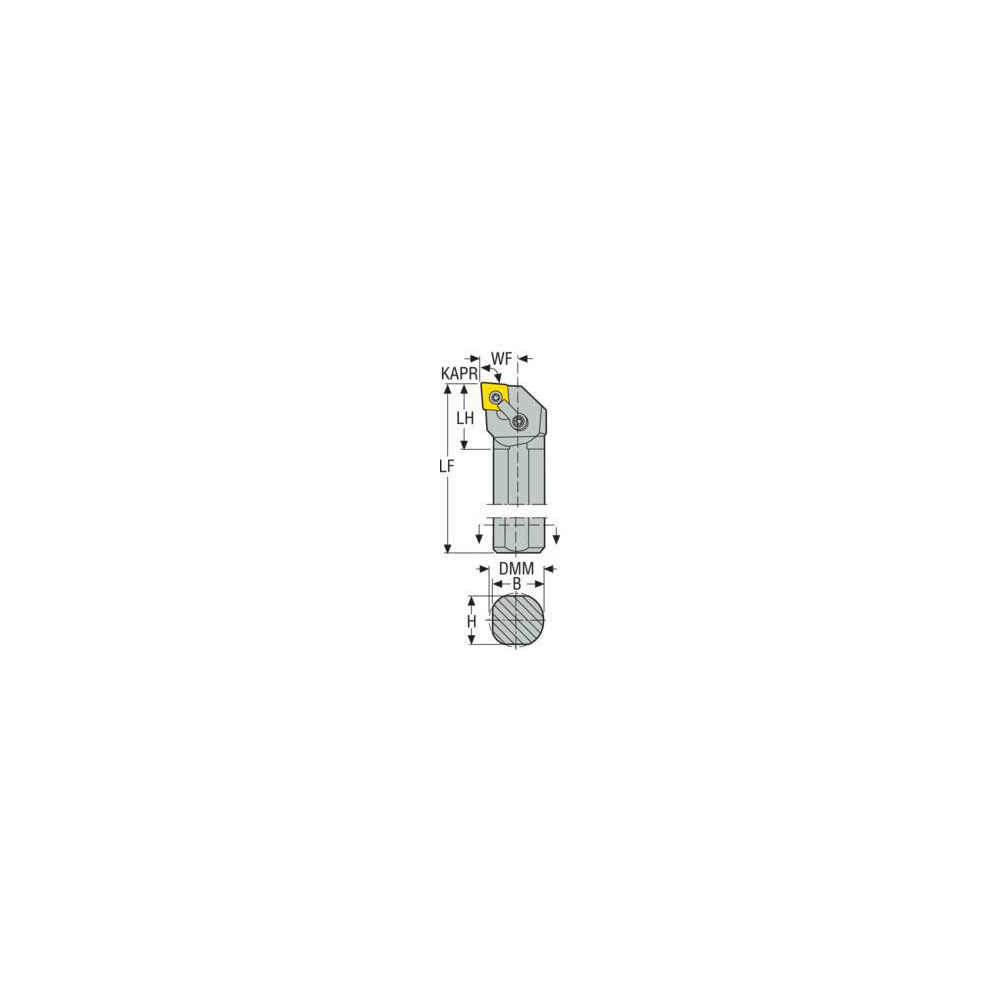

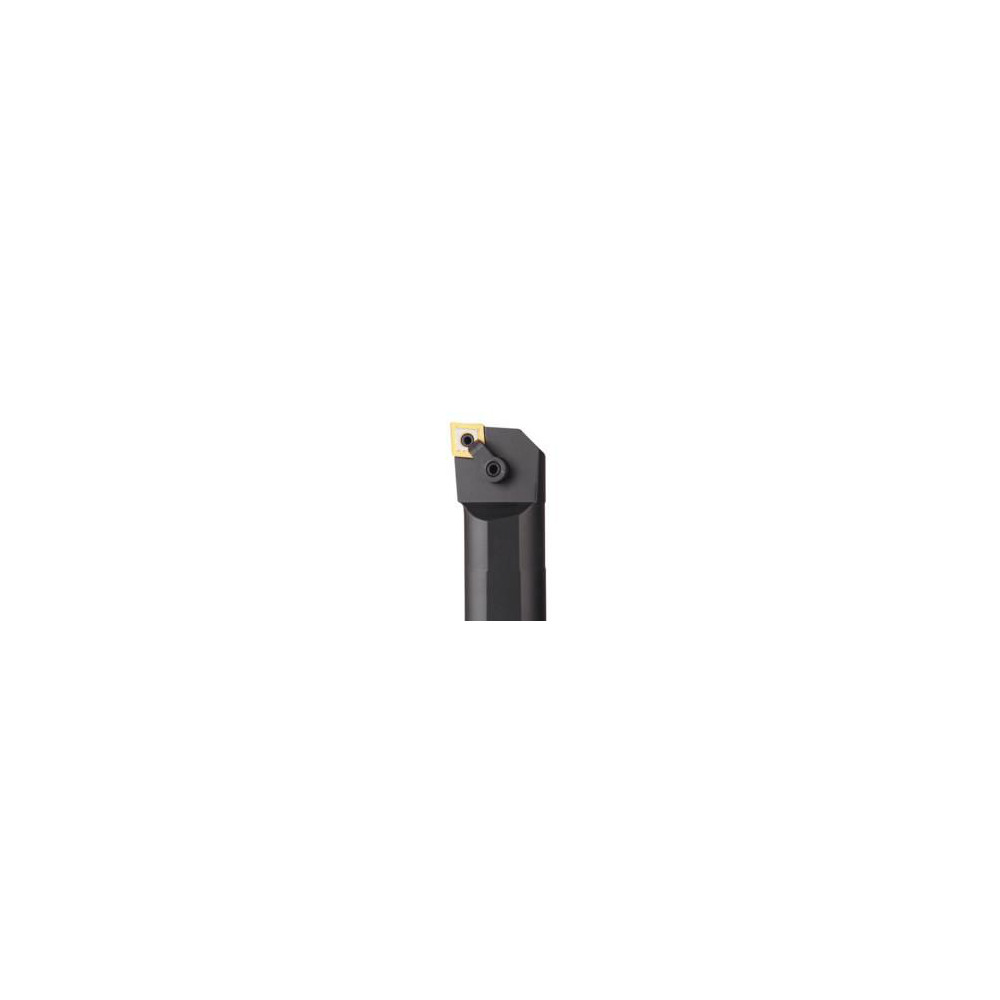

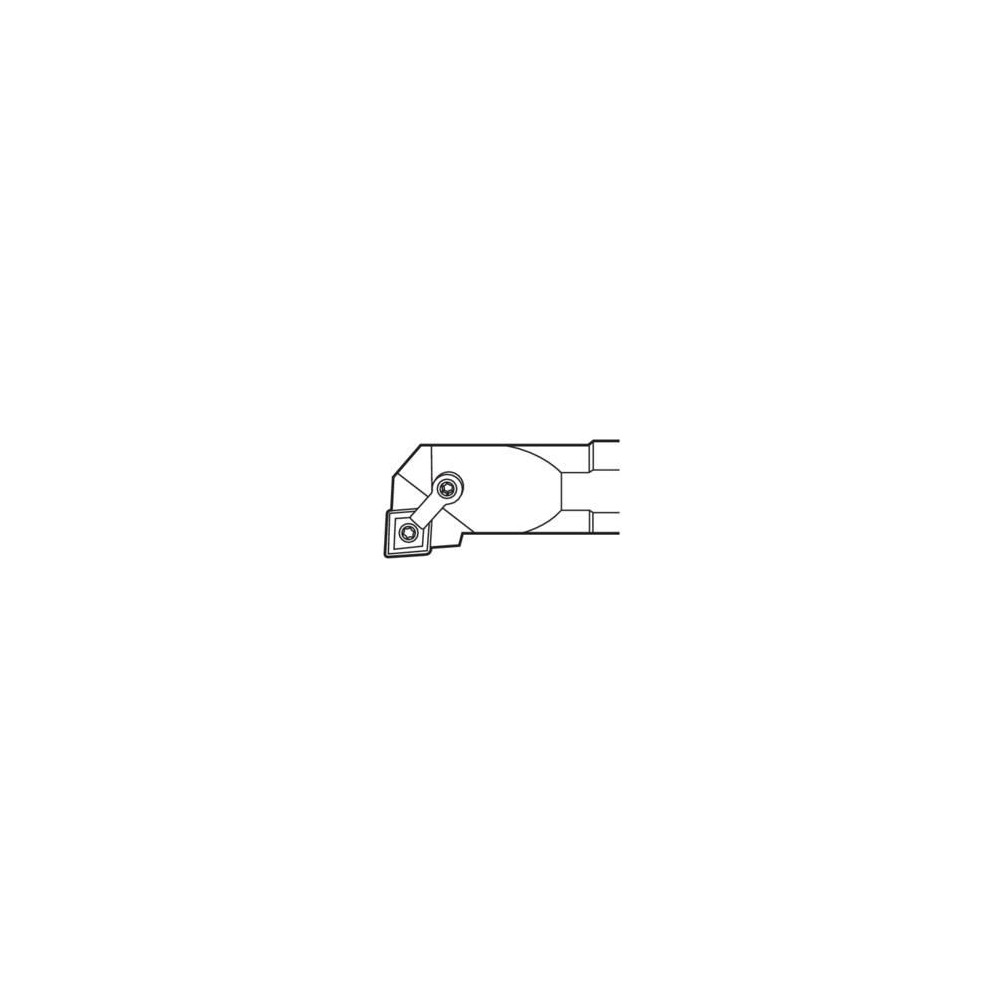

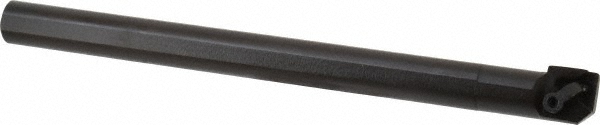

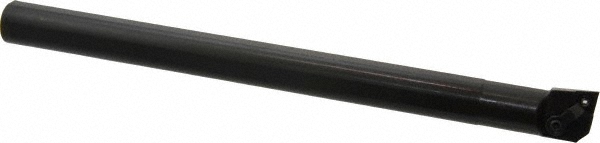

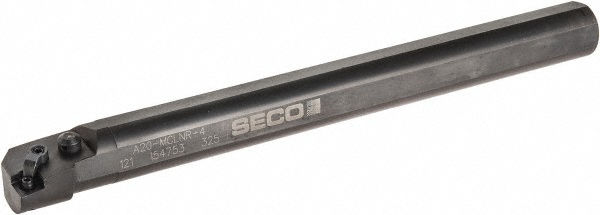

Pin & Clamp, Uses CNMG 322 Inserts
| Minimum Bore Diameter (Decimal Inch) | 1.0000 |
|---|---|
| Toolholder Style | MCLN |
| Tool Material | Steel |

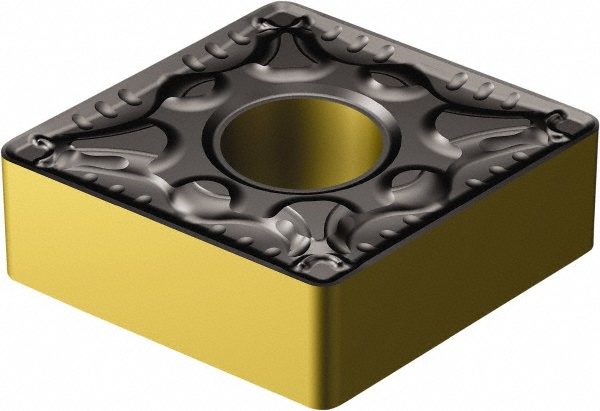

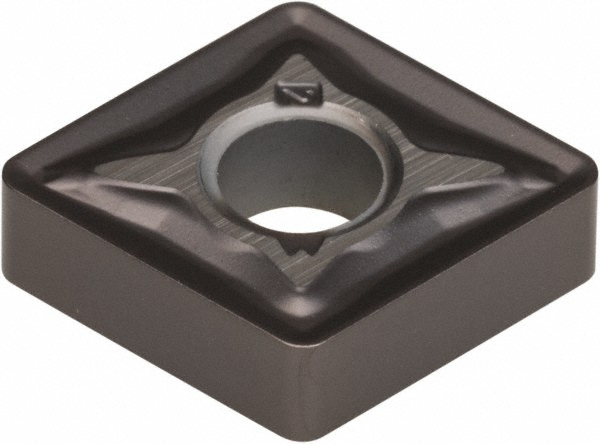

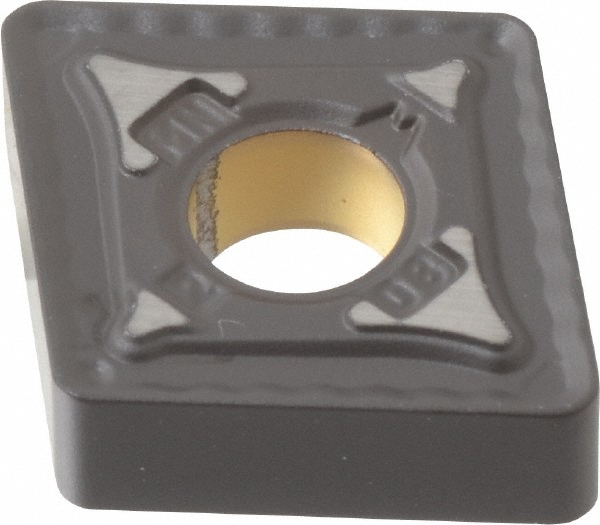

| Insert Compatibility | CNMG 322 |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 3/4 |
| Overall Length (Inch) | 10 |
| Compatible Insert Size Code | 32 |
| Insert Holding Method | Pin & Clamp |
| Compatible Insert Shape | Diamond |
| Rake | Negative |
| Rake Angle | -14.00 |
| Lead Angle | -5 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Multi-use Tool | No |
| Cutting Tool Application | Turning; Boring |
| Center to Cutting Edge (Decimal Inch) | 0.5000 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Inch) | 1/8 |
| Coolant Through | No |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 57135303 |
