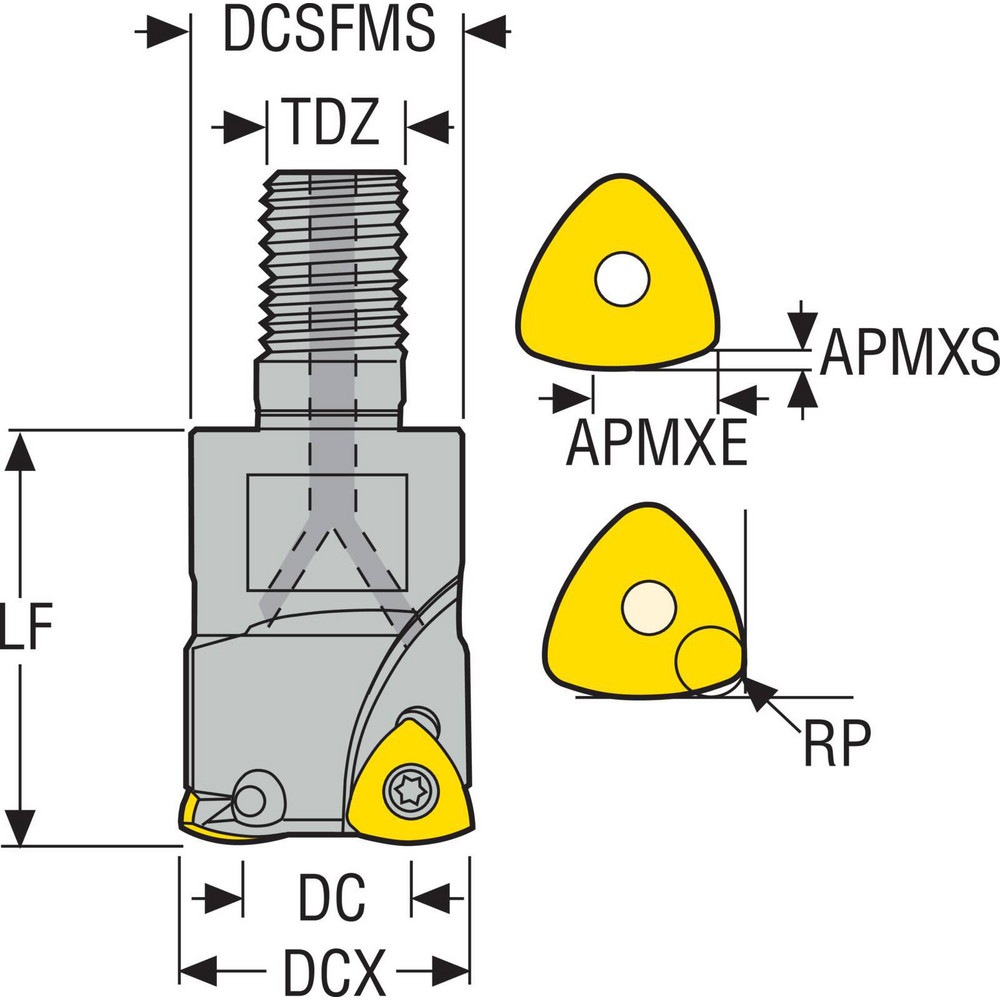

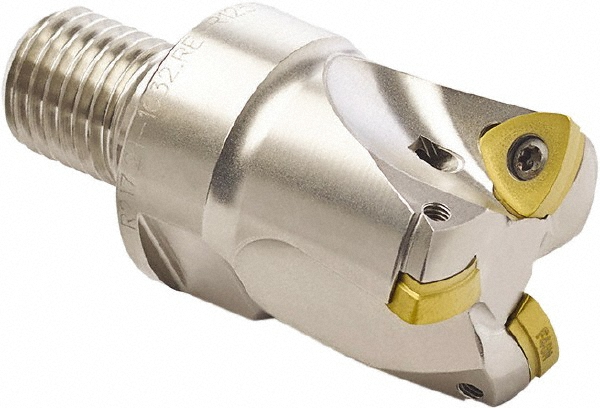

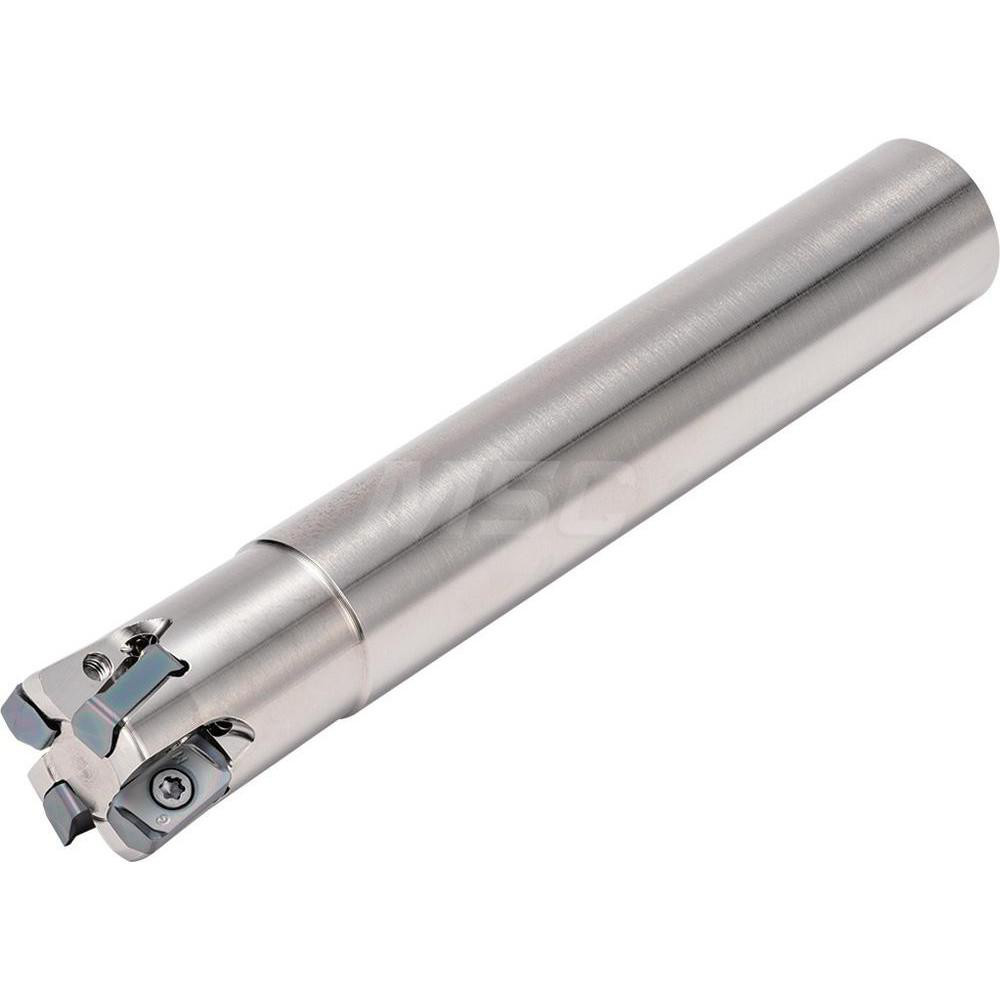

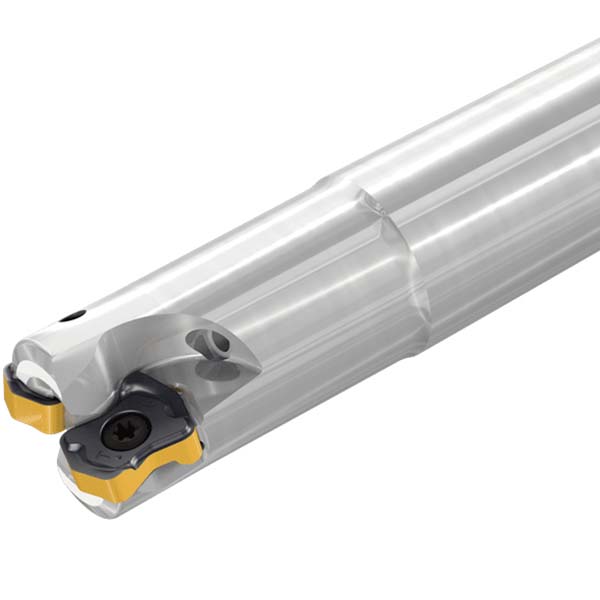

Uses 2 218.19-125 Inserts, 0.0590" Max Depth, Coolant Through
| Minimum Cutting Diameter (Decimal Inch) | 0.4720 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 0.7500 |
| Maximum Cutting Diameter (mm) | 19.10 |
| Maximum Cutting Diameter (Inch) | 3/4 |
| Maximum Depth of Cut (Decimal Inch) | 0.0590 |
| Toolholder Style | R217.21 |
| Shank Type | Modular Connection |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Maximum Ramping Angle | 6.45 |
| Compatible Insert Style | 218.19-125 |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 2 |
| Overall Length (Decimal Inch) | 165.1000 |
| Overall Length (mm) | 165.10 |
| Maximum RPM | 29100 |
| Modular Connection Size | M12 |
| Tool Application | Milling |
| Coolant Through | Yes |
| UNSPSC Code | 27112803 |
| Country of Origin | India |
| undefined | undefined |
| MSC Number | MSC# 60183530 |
