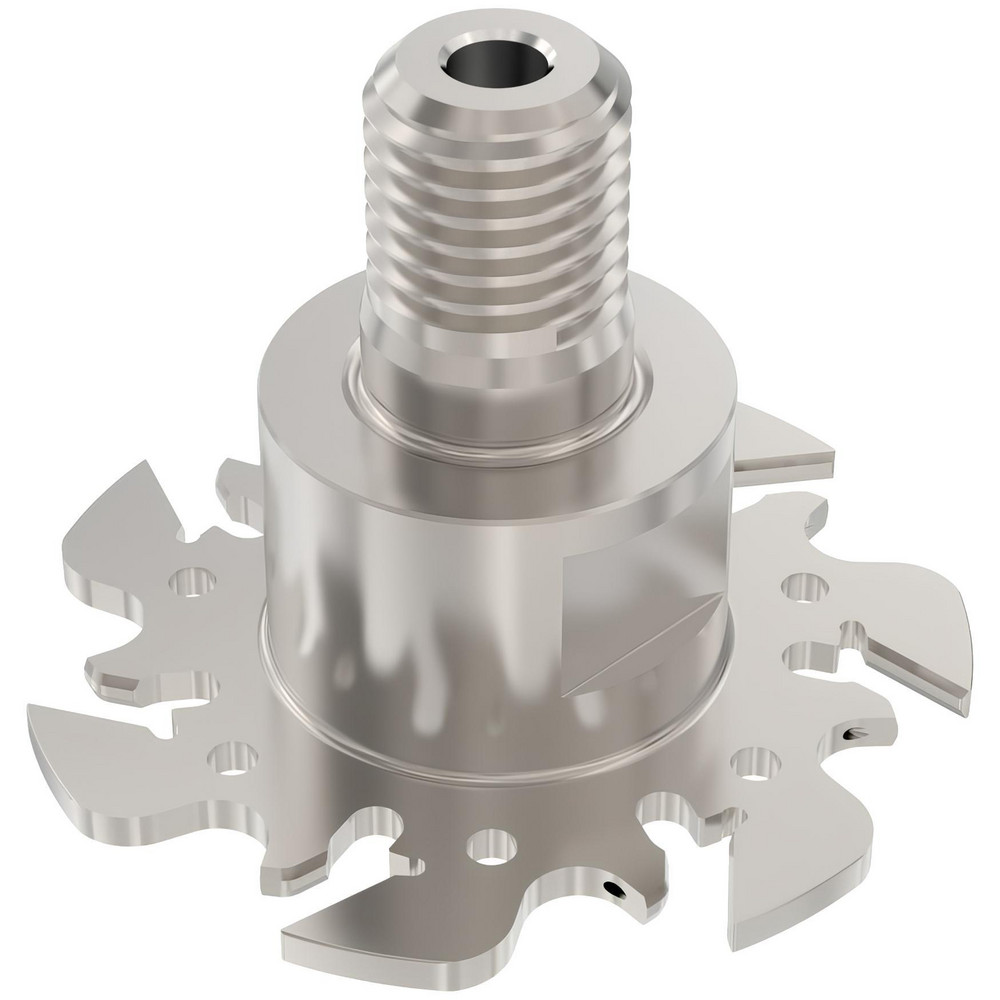

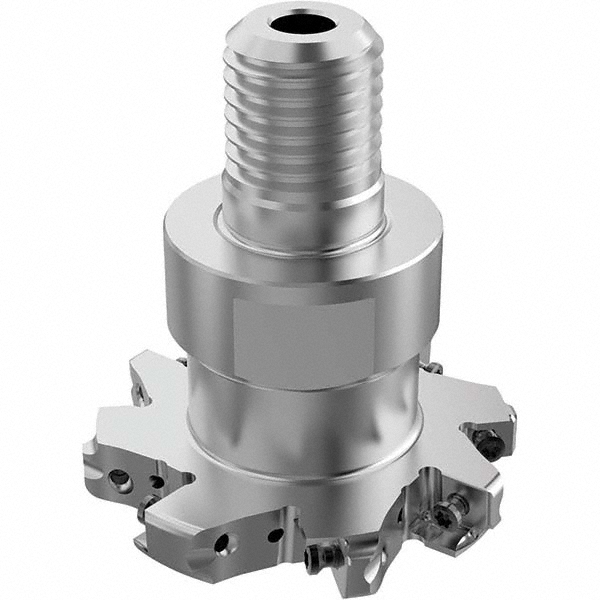

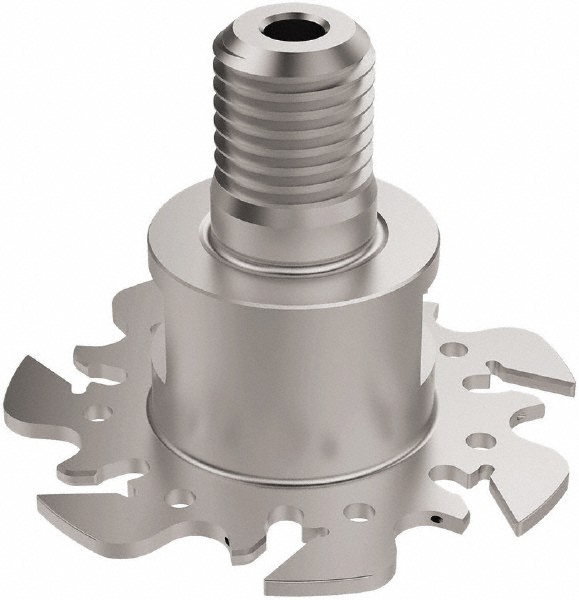

Clamp, Uses 7 Inserts, 150.10 Inserts, 7 Tooth, Straight Teeth, Coolant Through
| Connection Type | Combimaster |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 0.6180 |
| Maximum Depth of Cut (mm) | 15.70 |
| Cutter Diameter (Decimal Inch) | 2.4800 |
| Cutter Diameter (mm) | 63.00 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Clamp |
| Number Of Cutter Inserts | 7 |
| Compatible Insert Style | 150.10 |
| Tooth Type | Straight |
| Rake | Neutral (Axial); Positive (Radial) |
| Series | R335.10 |
| Toolholder Style | R335.10 |
| Modular Connection Size | M16 |
| Hub Diameter (Decimal Inch) | 1.1810 |
| Hub Diameter (mm) | 30.00 |
| Maximum RPM | 2520 |
| Tool Application | Disc Milling; Slotting |
| Tool Performance | General Purpose |
| Minimum Cutting Width (Decimal Inch) | 0.0890 |
| Maximum Cutting Width (Decimal Inch) | 0.0980 |
| Radius | No |
| Lead Angle | 90 |
| UNSPSC Code | 23241629 |
| Cutter Body Width (Decimal Inch) | 0.0980 |
| Weldon Flat | No |
| Manufacturers Catalog Number | R335.10-1663.RE-02-7A |
| Number Of Teeth | 7 |
| Coolant Through | Yes |
| Complete Insert Compatibility | 150.10-2.5N; 150.10-2.25N |
| Overall Height (Decimal Inch) | 23.00 |
| Country of Origin | France |
| MSC Number | MSC# 33746579 |
