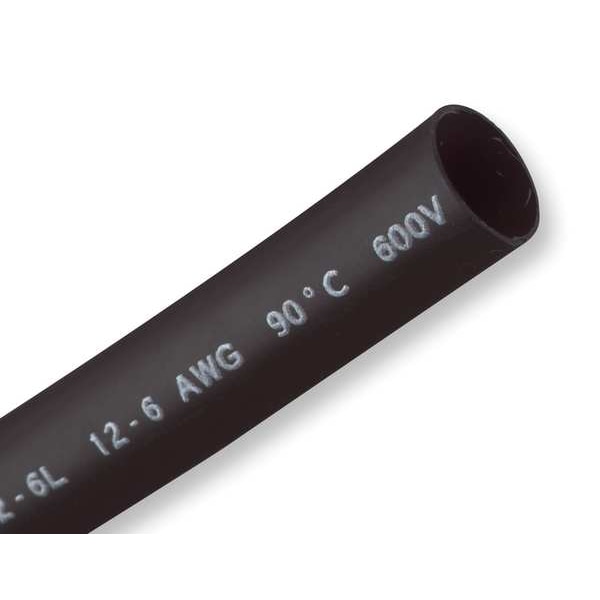

Adhesive Lined Heat Shrink Tube, Heavy Wall, 3:1 I.D. Shrink Ratio, 0.35 in I.D. Before Shrinking
| Item | Adhesive Lined Heat Shrink Tube |
|---|---|
| Shrink Ratio | 3:1 |
| Wall Type | Heavy Wall |
| Shrink Tubing I.D. After Shrinking | 0.12 in |
| Material | Cross-Linked Polyolefin |
| Color | Black |
| Length | 6 in |
| Use with Wire Size | 14 to 10 AWG |
| Temp. Range | -67° to 230°F |
| Min. Shrink Temp. | 248°F |
| Max. Voltage | 600 V |
| Shrink Tubing I.D. Before Shrinking | 0.35 in |
| Flame Retardant | No |
| Shrink Tubing Wall Thickness After Shrinking | 0.07 in |
| Features | Adhesive Lined |
| Standards | UL 486D |
| Tubing Wall Type | Heavy Wall |
| Adhesive Lined | Yes |
| Max. Temp. Rating | 230 deg F |
| Package Style | Individual Pieces |
| Min. Temp. Rating | -67 deg F |
| Dielectric Strength | 600 V |
| Shrink Tubing Properties | High Heat Resistant |
| Wall Thickness After Shrinking | 0.07 in |
| Nominal Recovered Wall (inches) | 0.07 |
| Fits AL/CU Splice with Max. Length | 1 |
| Voltage Rating | 600 V |
| Special Features | Made of thermally stabilized cross-linked polyolefin, enabling a recovered wall thickenss greater than that of the cable jacket replaced. |
| UL approval | Yes |
| Model | Thick-walled |
| I.D. After Shrinking | 0.12 in |
| I.D. Before Shrinking | 0.35 in |
| Package Quantity | 25 |
