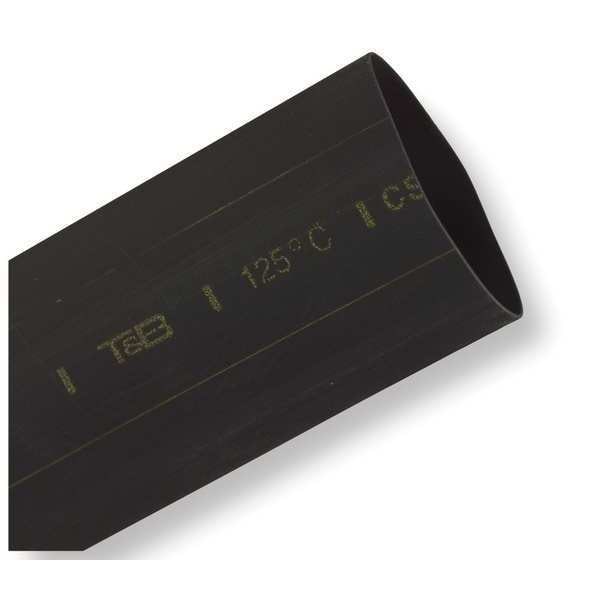

Heat Shrink Tube, Thin Wall, 2:1 I.D. Shrink Ratio, 0.25 in I.D. Before Shrinking, Black, 6 in
| Item | Heat Shrink Tube |
|---|---|
| Shrink Ratio | 2:1 |
| Wall Type | Thin Wall |
| Shrink Tubing I.D. Before Shrinking | 1/4 in |
| Shrink Tubing I.D. After Shrinking | 0.13 in |
| Material | Cross-Linked Polyolefin |
| Color | Black |
| Length | 6 in |
| Use with Wire Size | 16 to 12 AWG |
| Temp. Range | -55° to 135°F |
| Min. Shrink Temp. | 248°F |
| Max. Voltage | 600 V |
| Shrink Tubing Wall Thickness After Shrinking | 0.025 in |
| Features | Flame Retardant |
| Standards | AMS-3636 and 3637, CSA 22.2 No. 198.1, 125 Degrees C, DEF STAN 59-97, Issue 3, Type 2a, MIL-DTL-23053/5 Class 1 and 2, UL 224, 125 Degrees C |
| Flame Retardant | Yes |
| Tubing Wall Type | Thin Wall |
| Adhesive Lined | No |
| Wall Thickness After Shrinking | 0.03 in |
| Dielectric Strength | 600 V |
| Package Style | Individual Pieces |
| Max. Temp. Rating | 135 deg F |
| Min. Temp. Rating | -55 deg F |
| Nominal Recovered Wall (inches) | 0.025 |
| I.D. After Shrinking | 0.13 in |
| I.D. Before Shrinking | 1/4 in |
| Package Quantity | 20 |
