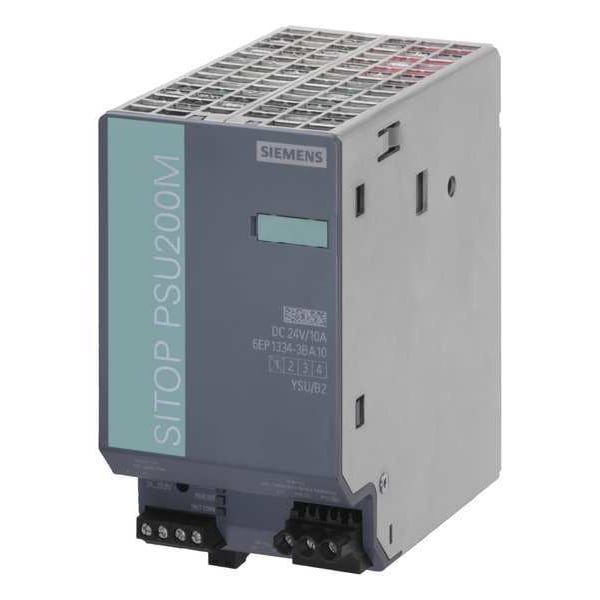

DC Power Supply, 176/550V AC; 85/264V AC, 24V DC, 240W, 10A, DIN Rail
| Item | DC Power Supply |
|---|---|
| Input Voltage | 176/550V AC; 85/264V AC |
| Output Voltage | 24V DC |
| Power Rating | 240 W |
| Output Amps | 10 A |
| Mounting | DIN Rail |
| Case Material | Metal Case |
| Phase - Electrical | Single |
| Style | Switching |
| Height | 125 mm |
| Width | 70 mm |
| Depth | 121 mm |
| Hz | 50/60 Hz |
| Series | SITOP |
| Peak Amps | 30 |
| Standards | CB-Certificate Yes, CE, CSA, EAC, RCM, REACH Art. 33, RoHS, UL, WEEE (2012/19/EU) |
| Status Indicator | LED |
| IP Rating | IP20 |
| Connection | Screw |
| Regulated / Unregulated | Regulated |
| Protection | Short-Circuit Proof |
| Operating Temperature - Maximum | 158 deg F |
| Operating Temperature - Minimum | -13 deg F |
| Current - Inrush | 35 A |
| Housing Material | Metal |
| Current - Peak | 30 A |
| Wire Connection Type | Terminals |
| Output Power - Rated | 240 W |
| Special Features | Overvoltage Protection, Short Circuit Protection |
| Current - Output | 10 A |
| Package Quantity | 1 |
