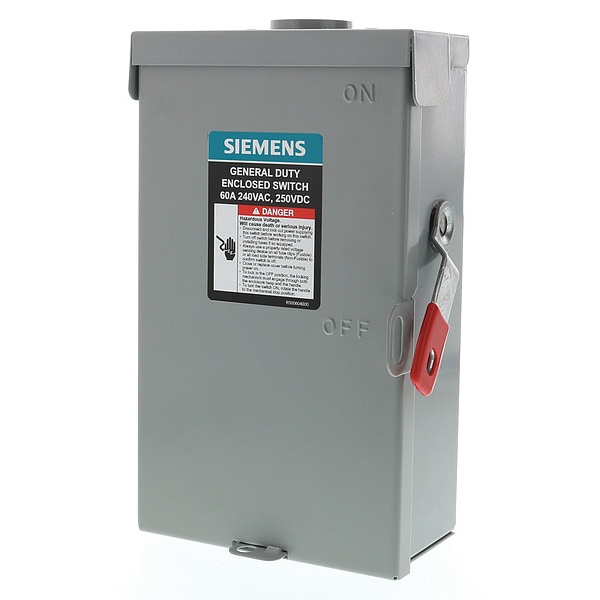

Interruptor de seguridad fusible, deber general, 240V CA, 2PST, 60 A, NEMA 3R
| Item | Safety Switch |
|---|---|
| Protection Method | Fusible |
| Duty | General |
| Voltage | 240V AC |
| Phase | 1 |
| HP | 15 HP @ 240 V AC |
| NEMA Enclosure Type | 3R |
| IP Rating | Not Rated |
| Number of Wires | 3 |
| Number of Poles | 2 |
| Contact Form | 2PST |
| Amps AC | 60 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Steel |
| Height | 45 in |
| Depth | 6 in |
| Width | 22 in |
| For Use With | Class H, R, T Fuse |
| Standards | UL 98 |
| Enclosure Type | Enclosed |
| Housing Material | Steel |
| Horsepower @ 240V AC | 15 HP |
| NEMA Enclosure Rating | 3R |
| Mounting Style | Surface Mount |
| Environment | Indoor, Outdoor |
| Horsepower @ 600V AC | 60 HP |
| For Fuse Class | Class H, Class R, Class T |
| Current Rating | 60 A |
| Package Quantity | 1 |
