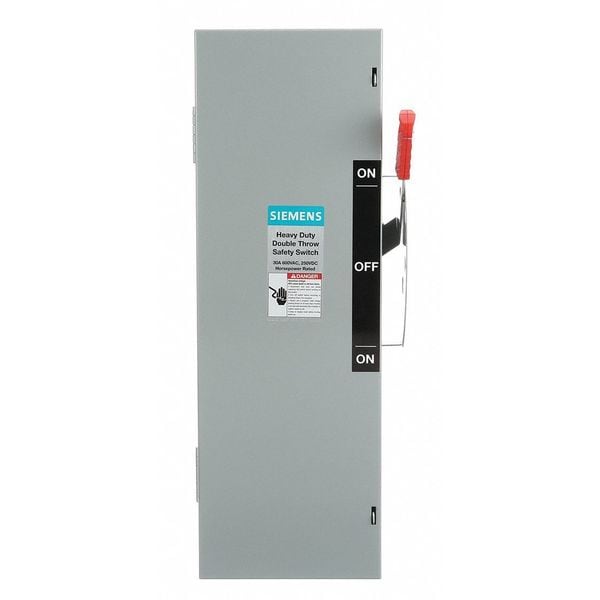

Interruptor de seguridad con fusible, resistente, 600V AC, 3PDT, 30 A, NEMA 1.
| Item | Safety Switch |
|---|---|
| Protection Method | Fusible |
| Duty | Heavy |
| Voltage | 600V AC |
| Phase | 3 |
| HP | 7-1/2 HP @ 600 V AC |
| NEMA Enclosure Type | 1 |
| IP Rating | 10 |
| Number of Wires | 3 |
| Number of Poles | 3 |
| Contact Form | 3PDT |
| Amps AC | 30 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Steel |
| Depth | 8.6 in |
| Width | 11-1/2 in |
| For Use With | Class H, R, T Fuse |
| Standards | UL98 |
| Fusible / Nonfusible | Fusible |
| Height | 29.1 in |
| Electrical Connection | Lugs |
| Use | Load Transfer Between Power Sources |
| Mounting | Surface |
| Horsepower @ 600V AC | 7.5 HP |
| Housing Material | Steel |
| Minimum Mounting Depth | 6-3/4 in |
| Environment | Indoor |
| Maximum Enclosure Depth | 29.12 in |
| Mounting Style | Surface Mount |
| NEMA Enclosure Rating | 1 |
| For Fuse Class | Class H, Class J, Class R, Class T |
| Maximum Mounting Depth | 23-1/2 in |
| Current Rating | 30 A |
| Minimum Enclosure Depth | 9.53 in |
| Package Quantity | 1 |
