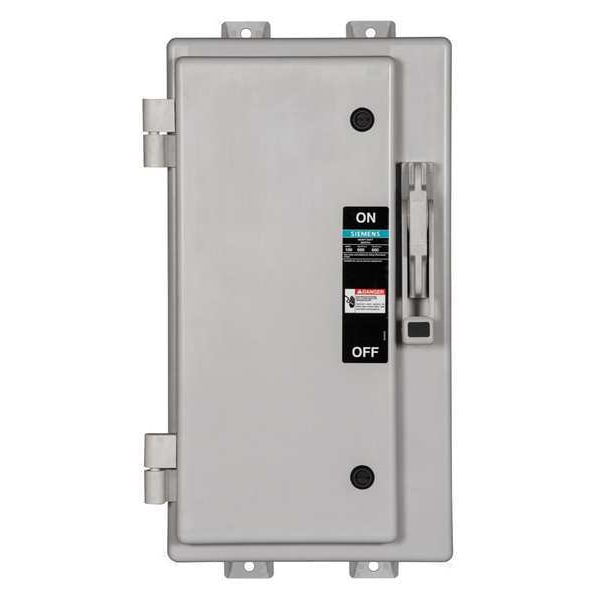

Interruptor de fusible de seguridad, resistente, 600V CA, 3PST, 100 A, NEMA 4X.
| Item | Safety Switch |
|---|---|
| Protection Method | Fusible |
| Duty | Heavy |
| Voltage | 600V AC |
| Phase | 3 |
| HP | 30 HP @ 600 V AC |
| NEMA Enclosure Type | 4X |
| IP Rating | 65 |
| Number of Wires | 4 |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Amps AC | 100 A |
| Metallic / Non-Metallic | Non-Metallic |
| Material of Construction | Non-Metallic Polyester |
| For Use With | Class H, J, R Fuse |
| Height | 24.8 in |
| Fusible / Nonfusible | Fusible |
| Depth | 13.2 in |
| Width | 14-1/2 in |
| Standards | UL98 |
| Use | Disconnecting Mean For Service Entrance/Loads |
| Mounting | Surface |
| Neutral Assembly Included | Yes |
| Enclosure Type | Enclosed |
| Electrical Connection | Lugs |
| Number of Mounting Holes | 3 |
| Mounting Style | Surface Mount |
| NEMA Enclosure Rating | 4, 4X |
| For Fuse Class | Class H, Class J, Class R |
| Includes Neutral Assembly | Yes |
| Environment | Indoor, Outdoor |
| Horsepower @ 600V AC | 30 HP |
| Current Rating | 100 A |
| Housing Material | Non-Metallic |
| Resistance Properties | Corrosion-Resistant |
| Package Quantity | 1 |
