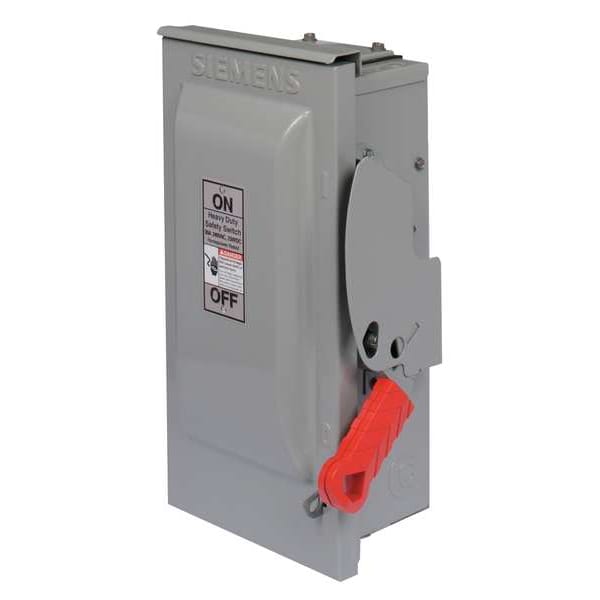

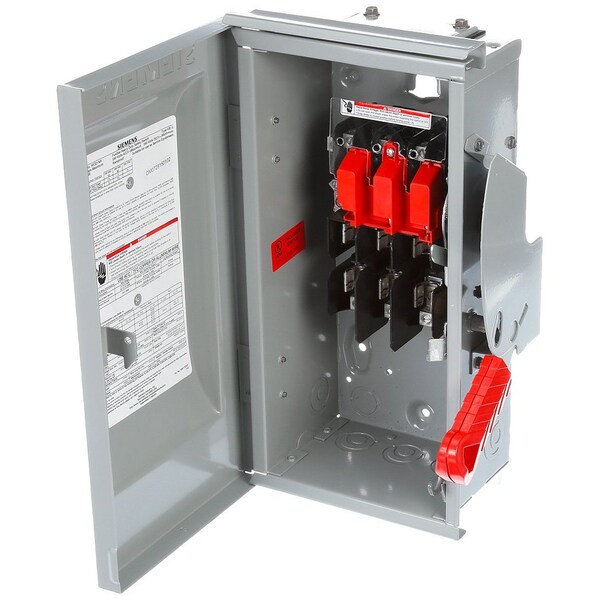

Interruptor de seguridad de un solo tiro con fusible, resistente, 240V AC, 3PST, 30 A, NEMA 3R.
| Item | Single Throw Safety Switch |
|---|---|
| Protection Method | Fusible |
| Duty | Heavy |
| Voltage | 240V AC |
| Phase | 3 |
| HP | 7-1/2 HP @ 240 V AC |
| NEMA Enclosure Type | 3R |
| IP Rating | 14 |
| Number of Wires | 4 |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Amps AC | 30 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Galvannealed Steel |
| Fuse Kit (Class R) | Mfr. No. HR21 |
| For Use With | Class H, J, K, R Fuse |
| Standards | UL |
| Width | 9 in |
| Height | 15.4 in |
| Fusible / Nonfusible | Fusible |
| Depth | 8.2 in |
| Electrical Connection | Lugs |
| Enclosure Type | Enclosed |
| Use | Disconnecting Mean For Service Entrance/Loads |
| Mounting | Surface |
| Features | On/Off Handle Indication |
| Neutral Assembly Included | Yes |
| For Fuse Class | Class H, Class J, Class K, Class R |
| Horsepower @ 600V AC | 30 HP |
| Environment | Indoor, Outdoor |
| NEMA Enclosure Rating | 3R |
| Housing Material | Steel |
| Mounting Style | Surface Mount |
| Horsepower @ 240V AC | 7.5 HP |
| Current Rating | 30 A |
| Horsepower @ 480V AC | 75 HP |
| Number of Mounting Holes | 3 |
| Compatible with Manufacturer Model Number | HR21 |
| Includes Neutral Assembly | Yes |
| Compatible Manufacturer Part Number | HR21 |
| Compatible with Manufacturer Part Number | HR21 |
| Compatible with Manufacturer Model Number [NEW] | HR21 |
| Compatible Manufacturer Model Number | HR21 |
| For Use with Mfr. Model Number | HR21 |
| Package Quantity | 1 |
