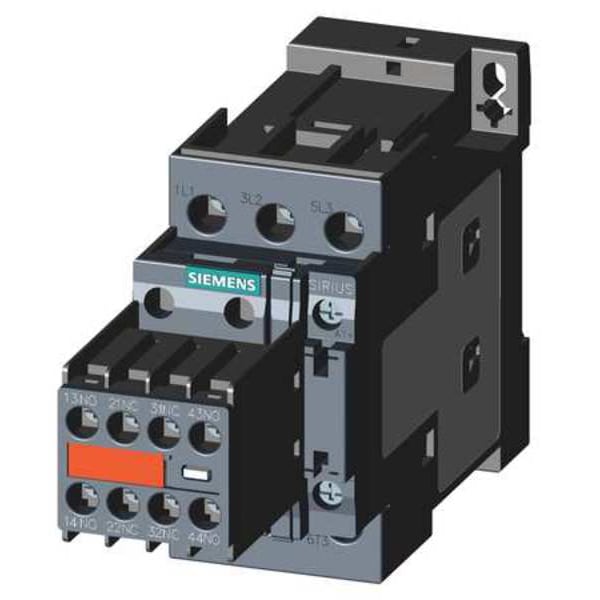

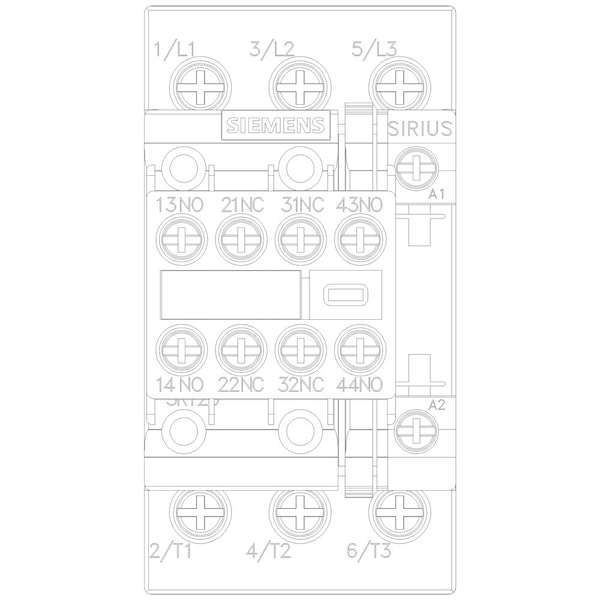

Contactor magnético IEC, 3 polos, 110/120 V CA, 38 A, Reversión: No
| Full Load Amps-Inductive | 38 A |
|---|---|
| Item | IEC Magnetic Contactor |
| Full Load Amps-Resistive | 50 A |
| Action | Non-Reversing |
| Number of Poles | 3 |
| Coil Volts | 110/120 V AC |
| Reversing | No |
| HP @ 1 Phase - 120V | 3 hp |
| HP @ 1 Phase - 230V | 5 |
| Height | 1.77 in |
| HP @ 1 Phase - 240V | 5 hp |
| Width | 1.77 in |
| HP @ 3 Phase - 208V | 10 hp |
| HP @ 3 Phase - 240V | 10 hp |
| Depth | 3.82 in |
| HP @ 3 Phase - 575V | 25 hp |
| HP @ 3 Phase - 480V | 25 hp |
| Enclosure NEMA Rating | No Enclosure |
| Aux. Contact Configuration | 2NO, 2NC |
| Hz | 50/60 |
| Frame / Series / Class / Code | S0 |
| Auxiliary Contact Form | 2NO/2NC |
| Standards | REACH Art 33, WEEE (2012/19/EU) |
| Includes | Permanent Mounted Aux Contact |
| Series | SIRIUS 3RT Safety Contactors |
| NEMA Size | Not Applicable |
| IP Rating | IP20 |
| Max. Operating Watts | 19 kW (at 400V, AC-3), 28 kW (at 400V, AC-1) |
| Electrical Connection | Screws |
| Watts Loss | 3.2W (Current Dependent); 10.5W (Current Independent) |
| NEMA Enclosure Material | Not Applicable |
| Frequency | 50/60 Hz |
| Mounting Postion | Vertical |
| Overall Depth | 3.8 in |
| Horsepower @ Three Phase - 600V AC | 25 HP |
| Frame Size | S0 |
| Number of Normally Open Main Contacts | 3 |
| Horsepower @ Three Phase - 208V AC | 10 HP |
| Horsepower @ Three Phase - 480V AC | 25 HP |
| Response Time | 10 to 17 msec (AC Operation Closing Delay Operation Opening Delay Operating Times for 1.0 x Us1), 15 to 17.5 msec (DC Operation Opening Delay Operating Times For 0.8 ... 1.1 X Us1), 16 to 17 msec (DC Operation Opening Delay Operating Times for 1.0 x Us), 4 to 16 msec (AC Operation Opening Delay Operating Times for 0.8 ... 1.1 X Us1), 4 to 16 msec (AC Operation Opening Delay Operating Times for 1.0 x Us), 50 to 170 msec (DC Operation Closing Delay Operating Times for 0.8 ... 1.1 X Us1), 55 to 80 msec (DC Operation Closing Delay Operating Times for 1.0 x Us), 8 to 40 msec (AC Operation Closing Delay) |
| Includes Auxiliary Contacts | Yes |
| Mounting Style | DIN Rail, Surface |
| Terminal Connection Type | Screw Terminals |
| Overall Width | 2.1 in |
| NEMA Enclosure Rating | No Enclosure |
| Mounting Hole Distance - Width | 1.38 in |
| Full Load Current - Inductive | 38 A |
| Coil Voltage | 110/120V AC |
| Full Load Current - Resistive | 50 A |
| Mounting Hole Distance - Height | 2.36 in |
| Overall Height | 6 in |
| Reversing Capability | Non-Reversing |
| Contactor Style | IEC |
| Horsepower @ Single Phase - 240V AC | 5 HP |
| Embedded Surge Suppressor | No |
| Number of Auxillary Contacts | 4 |
| Phase | Three |
| Maximum Voltage Rating | 690 V AC |
| Maximum Operating Temperature | 140 deg F |
| Horsepower @ Single Phase - 120V AC | 3 HP |
| Horsepower @ Three Phase - 240V AC | 10 HP |
| Mechanical Operating Durability | 10,000,000 |
| Mounting Hole Diameter | 0.19 in |
| Minimum Operating Temperature | -13 deg F |
| Package Quantity | 1 |
