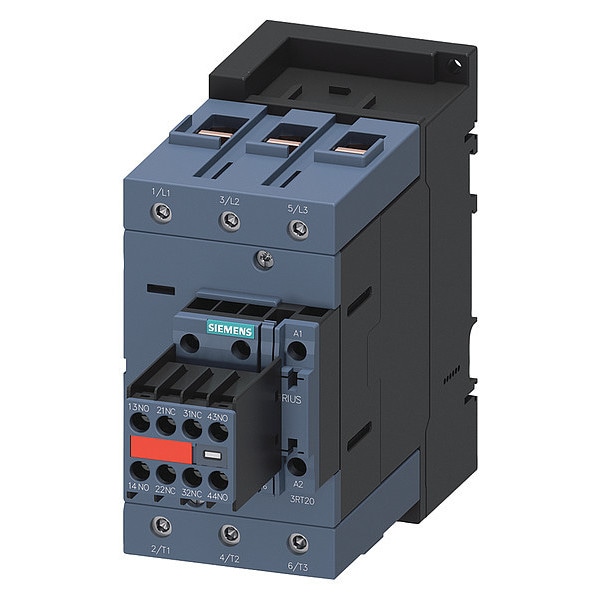

Contacto magnético del IEC, 3 polos, 110/120 V AC, 96 A, Reversión: No
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 96 A |
| Full Load Amps-Resistive | 130 A |
| Number of Poles | 3 |
| Coil Volts | 110/120 V AC |
| Reversing | No |
| HP @ 1 Phase - 120V | 10 hp |
| HP @ 1 Phase - 240V | 20 hp |
| Height | 5.51 in |
| Width | 2.76 in |
| HP @ 3 Phase - 208V | 30 hp |
| HP @ 3 Phase - 575V | 75 hp |
| Depth | 7.68 in |
| HP @ 3 Phase - 240V | 30 hp |
| HP @ 3 Phase - 480V | 75 hp |
| Enclosure NEMA Rating | No Enclosure |
| Aux. Contact Configuration | 2NO, 2NC |
| Hz | 50/60 |
| Frame / Series / Class / Code | S3 |
| Standards | REACH Art 33, WEEE (2012/19/EU) |
| Auxiliary Contact Form | 2NO/2NC |
| Series | SIRIUS 3RT Safety Contactors |
| NEMA Size | Not Applicable |
| Watts Loss | 6.6W (Current Dependent); 22W (Current Independent) |
| Electrical Connection | Screws |
| IP Rating | IP20 |
| Max. Operating Watts | 45 kW (at 400V, AC-3), 86 kW (at 400V, AC-1) |
| Mounting Hole Distance - Height | 5.12 in |
| NEMA Enclosure Rating | No Enclosure |
| Maximum Voltage Rating | 1,000 V AC |
| Reversing Capability | Non-Reversing |
| Mounting Postion | Vertical |
| Embedded Surge Suppressor | No |
| Horsepower @ Single Phase - 120V AC | 3 HP |
| Frequency | 50/60 Hz |
| Coil Voltage | 120V AC |
| Contactor Style | IEC |
| NEMA Enclosure Material | Not Applicable |
| Number of Auxillary Contacts | 4 |
| Overall Height | 5.51 in |
| Includes Auxiliary Contacts | Yes |
| Horsepower @ Three Phase - 240V AC | 30 HP |
| Mounting Style | DIN Rail, Surface |
| Mounting Hole Distance - Width | 2.36 in |
| Overall Width | 2.76 in |
| Number of Normally Open Main Contacts | 3 |
| Frame Size | S3 |
| Horsepower @ Three Phase - 208V AC | 30 HP |
| Minimum Operating Temperature | -13 deg F |
| Maximum Operating Temperature | 140 deg F |
| Overall Depth | 7.68 in |
| Horsepower @ Three Phase - 480V AC | 75 HP |
| Mechanical Operating Durability | 10,000,000 |
| Horsepower @ Three Phase - 600V AC | 75 HP |
| Terminal Connection Type | Screw Terminals |
| Mounting Hole Diameter | 0.2 in |
| Horsepower @ Single Phase - 240V AC | 20 HP |
| Full Load Current - Resistive | 130 A |
| Full Load Current - Inductive | 96 A |
| Package Quantity | 1 |
