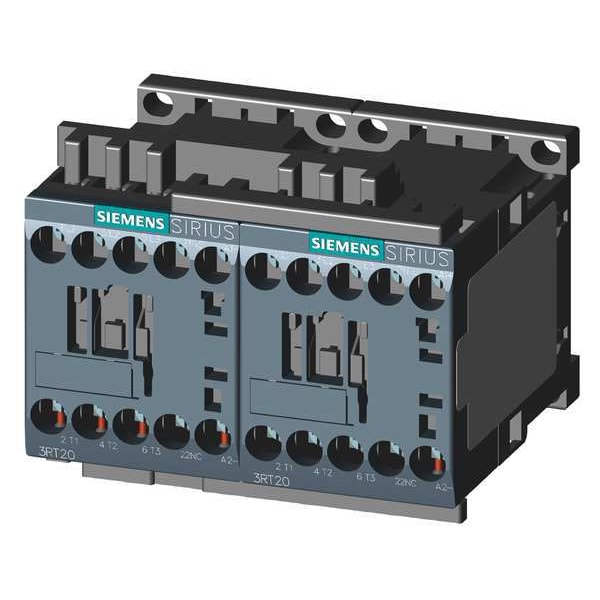

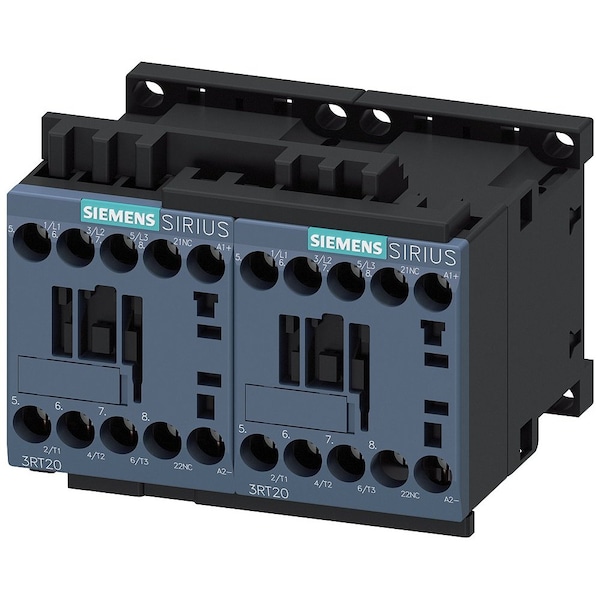

Contacto magnético IEC, 3 polos, 24 V DC, 7 A, Reversión: Sí
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 7 A |
| Action | Reversing |
| Full Load Amps-Resistive | 18 A |
| Number of Poles | 3 |
| Coil Volts | 24 V DC |
| Reversing | Yes |
| HP @ 1 Phase - 120V | 1/4 hp |
| HP @ 1 Phase - 230V | 0.75 |
| HP @ 1 Phase - 240V | 3/4 hp |
| Height | 3.54 in |
| HP @ 3 Phase - 208V | 1 1/2 hp |
| Width | 3.54 in |
| HP @ 3 Phase - 240V | 2 hp |
| Depth | 2.87 in |
| HP @ 3 Phase - 575V | 5 hp |
| HP @ 3 Phase - 480V | 3 hp |
| Enclosure NEMA Rating | No Enclosure |
| Aux. Contact Configuration | 2 NC |
| Includes | Mechanical Interlock |
| Frame / Series / Class / Code | S00 |
| Auxiliary Contact Form | 2NC |
| Standards | REACH Art 33, WEEE (2012/19/EU) |
| Series | SIRIUS 3RA23 |
| NEMA Size | Not Applicable |
| IP Rating | IP20 |
| Embedded Surge Suppressor | No |
| Overall Height | 3.08 in |
| Mounting Postion | Vertical |
| Full Load Current - Resistive | 18 A |
| NEMA Enclosure Material | Not Applicable |
| Reversing Capability | Reversing |
| Horsepower @ Single Phase - 120V AC | 0.25 HP |
| Minimum Operating Temperature | -13 deg F |
| Full Load Current - Inductive | 7 A |
| Horsepower @ Single Phase - 240V AC | 0.75 HP |
| Number of Auxillary Contacts | 2 |
| Overall Depth | 3.71 in |
| Horsepower @ Three Phase - 600V AC | 5 HP |
| Phase | Three |
| Coil Voltage | 24V DC |
| Frame Size | S00 |
| Horsepower @ Three Phase - 240V AC | 2 HP |
| Maximum Voltage Rating | 690 V AC |
| Horsepower @ Three Phase - 480V AC | 3 HP |
| Maximum Operating Temperature | 140 deg F |
| Overall Width | 2.88 in |
| Horsepower @ Three Phase - 208V AC | 1.5 HP |
| Mounting Style | DIN Rail, Surface |
| Number of Normally Open Main Contacts | 3 |
| Mechanical Operating Durability | 10,000,000 |
| Terminal Connection Type | Screw Terminals |
| Contactor Style | IEC |
| Number of Normally Closed Main Contacts | 0 |
| NEMA Enclosure Rating | No Enclosure |
| Includes Auxiliary Contacts | Yes |
| Package Quantity | 1 |
