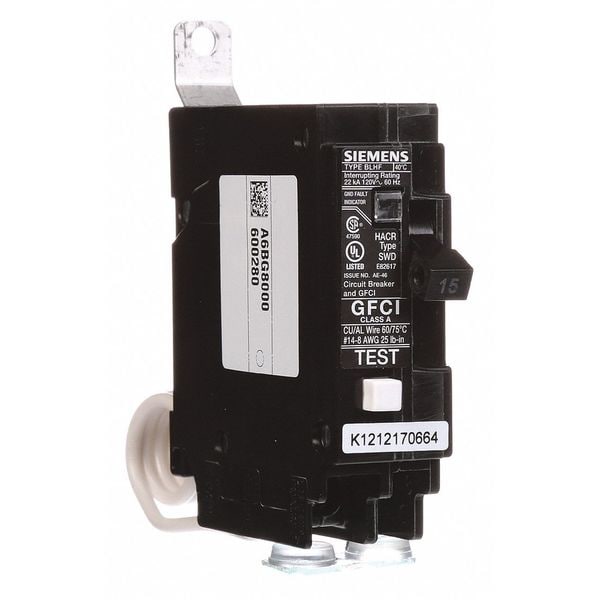

Miniature Circuit Breaker, BFH Series, 15A, 1 Pole, 120V AC, 22kA at 120V AC
| Item | Miniature Circuit Breaker |
|---|---|
| Series | BFH |
| Amps | 15A |
| Number of Poles | 1 |
| AC Voltage Rating | 120V AC |
| Circuit Breaker Type | Ground Fault Circuit Interrupter |
| Phase | 1 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Bolt On |
| Max. AIR Rating | 22kA at 120V AC |
| Terminal Connection | Lug |
| Frame Size | 60A, BLHF |
| Width | 4 in |
| Depth | 5 in |
| Height | 1 in |
| DC Voltage Rating | Not Rated |
| Max. Wire Size | 10 AWG |
| Min. Wire Size | 12 AWG (Al), 14 AWG (Cu) |
| For Use With | Siemens Panelboards |
| Standards | CSA Certified, HACR Rated, NOM Certified, UL Listed |
| Length (Straight Wireway) | 1 in |
| Length | 1 in |
| Mounting | Bolt on |
| Voltage | 120VAC |
| Package Quantity | 1 |
