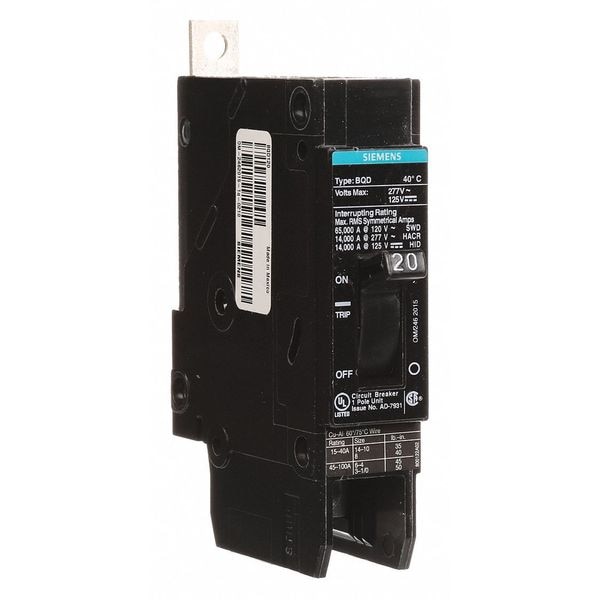

Miniature Circuit Breaker, BQD Series, 20A, 1 Pole, 277V AC, 14kA at 277V AC
| Item | Miniature Circuit Breaker |
|---|---|
| Series | BQD |
| Amps | 20A |
| Number of Poles | 1 |
| AC Voltage Rating | 277V AC |
| Circuit Breaker Type | Standard |
| Phase | 1 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Bolt On |
| Max. AIR Rating | 14kA at 277V AC |
| Terminal Connection | Lug |
| Frame Size | 100A, BQD |
| Width | 1 in |
| Depth | 2.7 in |
| Height | 4.49 in |
| DC Voltage Rating | 125V DC |
| For Use With | Siemens P1 Panelboards |
| Max. Wire Size | 6 AWG |
| Standards | CSA-C22.2, IEC 60947-2, UL 489 |
| Min. Wire Size | 12 AWG (Al), 14 AWG (Cu) |
| Max. Operating Temp. | 104 deg F |
| Compatible Panelboard/Load Center Series | P1 |
| Length (Straight Wireway) | 4.49 in |
| Voltage | 277VAC |
| Mounting | Bolt on |
| Length | 4.49 in |
| Package Quantity | 1 |
