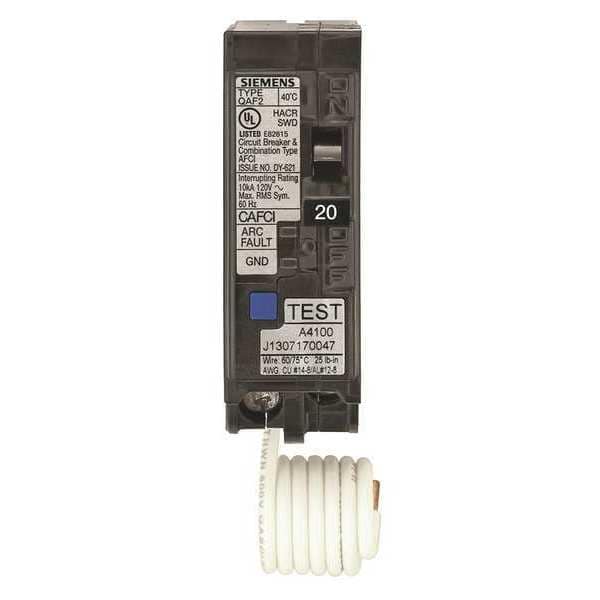

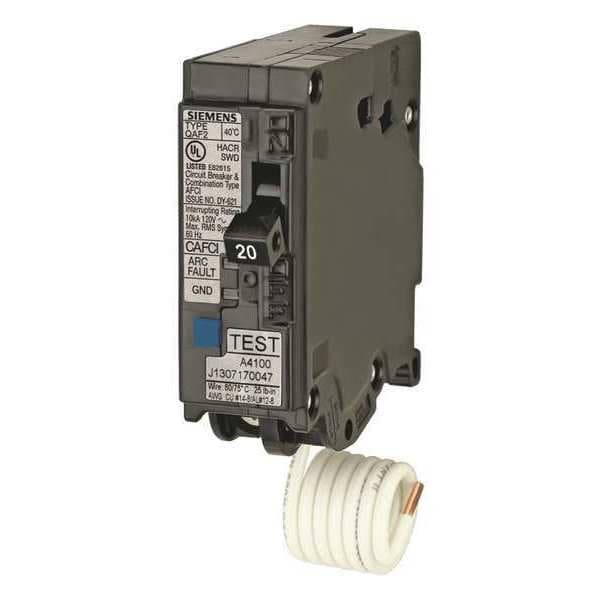

Miniature Circuit Breaker, QA Series, 20A, 1 Pole, 120V AC, 10kA at 120V AC
| CAD Available | Yes |
|---|---|
| Item | Miniature Circuit Breaker |
| Series | QA |
| Amps | 20A |
| Number of Poles | 1 |
| AC Voltage Rating | 120V AC |
| Circuit Breaker Type | Combination Arc Fault Circuit Interrupter |
| Phase | 1 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Plug In |
| Max. AIR Rating | 10kA at 120V AC |
| Terminal Connection | Plug In |

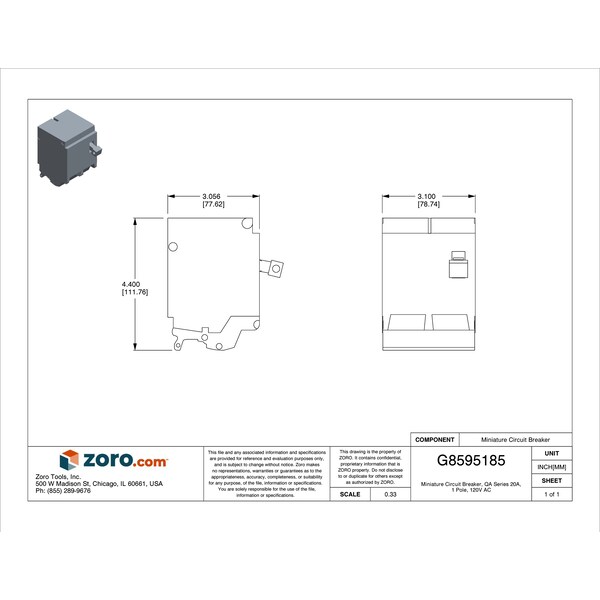

| Width | 3.1 in |
| Depth | 3.05 in |
| Height | 4.4 in |
| DC Voltage Rating | Not Rated |
| For Use With | Siemens Single Phase Load Center |
| Standards | UL 1699 |
| Max. Wire Size | 8 AWG |
| Min. Wire Size | 12 AWG (Al), 14 AWG (Cu) |
| Application | Electrical Distribution |
| Length (Straight Wireway) | 2.56 in |
| Length | 2.56 in |
| Package Quantity | 1 |
