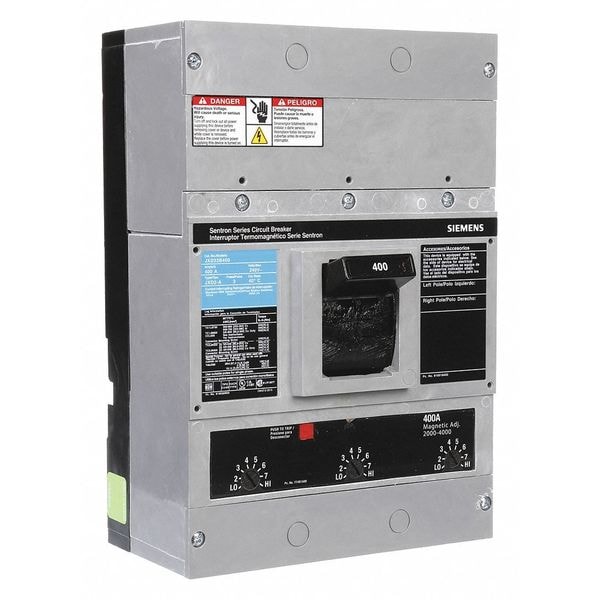

Molded Case Circuit Breaker, JXD2-A Series, 400A, 3 Pole, 240V AC, 65kA at 240V AC
| Item | Molded Case Circuit Breaker |
|---|---|
| Series | JXD2-A |
| Amps | 400A |
| Number of Poles | 3 |
| AC Voltage Rating | 240V AC |
| Circuit Breaker Type | Standard |
| Phase | 3 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Free Standing |
| Max. AIR Rating | 65kA at 240V AC |
| Trip Type | Thermal Magnetic |
| Instantaneous Trip | Fixed |
| Terminal Connection | Lug |
| Phase Connection | ABC |
| Frame Size | 400A, JD |
| Width | 7-1/2 in |
| Depth | 4 in |
| Height | 11 in |
| DC Voltage Rating | Not Rated |
| For Use With | SB Switchboards Without Lugs, Sentron Panelboards |
| Max. Wire Size | 500 MCM |
| Low Amp Trip Setting | 400 A |
| High Amp Trip Setting | 400 A |
| Standards | HACR Rated, UL Listed |
| Mounting | Free Standing Lug In |
| Package Quantity | 1 |
