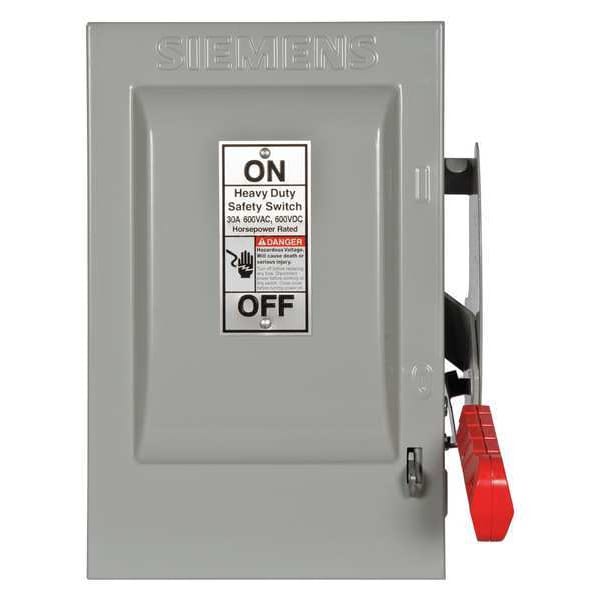

Interruptor de seguridad no fusible, servicio pesado, 600V CA, 2 polos, 30 A, NEMA 1
| Item | Safety Switch |
|---|---|
| Protection Method | Nonfusible |
| Duty | Heavy |
| Voltage | 600V AC |
| Phase | 1 |
| HP | 10 HP @ 600 V AC |
| NEMA Enclosure Type | 1 |
| IP Rating | 20 |
| Number of Wires | 3 |
| Number of Poles | 2 |
| Contact Form | 2PST |
| Amps AC | 30 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Steel |
| Height | 12.3 in |
| Fusible / Nonfusible | Nonfusible |
| Depth | 8.3 in |
| Includes | 90 Degrees Actuator |
| Standards | UL listed |
| Width | 9 in |
| Use | Disconnecting Mean For Service Entrance/Loads |
| Enclosure Type | Enclosed |
| Electrical Connection | Lugs |
| Neutral Assembly Included | Yes |
| Mounting | Surface |
| Includes Neutral Assembly | Yes |
| NEMA Enclosure Rating | 1 |
| Horsepower @ 600V AC | 10 HP |
| Environment | Indoor |
| Housing Material | Steel |
| For Fuse Class | Not Applicable |
| Mounting Style | Surface Mount |
| Current Rating | 30 A |
| Horsepower @ 240V AC | 75 HP |
| Package Quantity | 1 |
