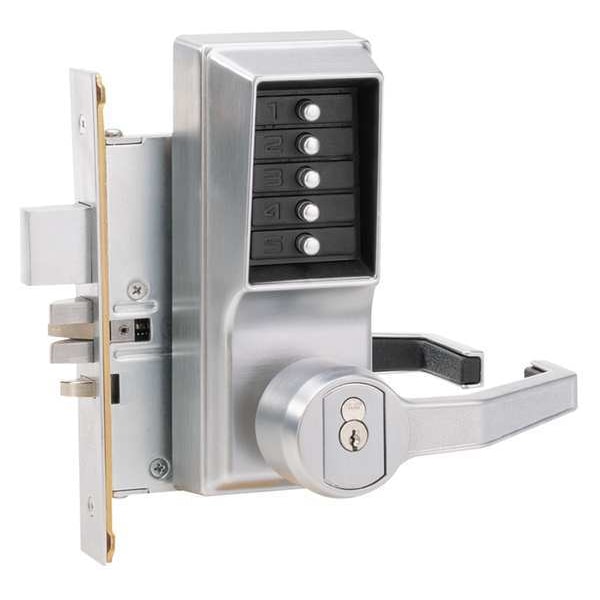

Mechanical Push Button Lockset, Satin Chrome, 1-3/4" to 2-1/4" For Door Thickness, 5 Number of Keys
| Item | Mechanical Push Button Lockset |
|---|---|
| For Door Thickness (In.) | 1-3/4" to 2-1/4" |
| Finish | Satin Chrome |
| Material | Zinc |
| For Use With | Best Core |
| Number of Keys | 5 |
| Hand | Reverse |
| Manufacturers Warranty Length | 3 yr |
| Outside Depth | 3-13/16 in |
| Includes | Deadbolt, Lockout, Passage, Push Button Access |
| Key Override Options | Best and Equivalents (6 or 7 Pin Length); LFIC Corbin Russwin (6 Pin Length); Medeco/ASSA/Yale/Abloy (5 or 6 Pin Length) |
| Function | Passage, Deadbolt/Entry with Key Override, Lockout |
| Outside Width | 3-1/8 in |
| Inside Height | 9 in |
| Case Material | Zinc |
| Handle Type | Lever |
| Series | 8100 |
| Keypad | 5 Button, Vandal Resistant |
| Backset | 2 3/4 in |
| Outside Height | 7-3/8 in |
| Door Thickness | 1-3/4 to 2-1/4 in |
| Inside Depth | 2-3/8 in |
| Max. User Codes | 1 |
| Latch Length | 1 in |
| Fire Rated | 3 hr |
| ADA Compliant | Yes |
| Inside Width | 3-1/4 in |
| Weather Resistant | Yes |
| Electrical/Mechanical | Mechanical |
| Standards | UL, Listed, ULC |
| Overall Height | 9 in |
| Overall Width | 3-1/8 in |
| Operation Type | Push Button |
| Type | Mechanical |
| Product Type | Mechanical Push Button Lockset |
| Fire Rating | 3 hr |
| Latch Front Size | 1 in |
| Operating Temp. Range | -31 Degrees to 151 Degrees F |
| Max. Proximity Range | At Lock |
| User Codes - Maximum | 1 |
| Lockset Handle Type | Lever |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Overall Depth | 3-13/16 in |
| Hand Orientation | Right-Handed |
| Mortise/Cylindrical | Mortise |
| Door Thickness - Minimum | 1-3/8 in |
| Lockset Type | Mechanical |
| Door Thickness - Maximum | 2-1/4 in |
| Includes Core | Core Not Included |
| Number of Keypad Buttons | 5 |
| Includes Hardware | Hardware Included |
| Lockset Function | Entrance, Passage |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
