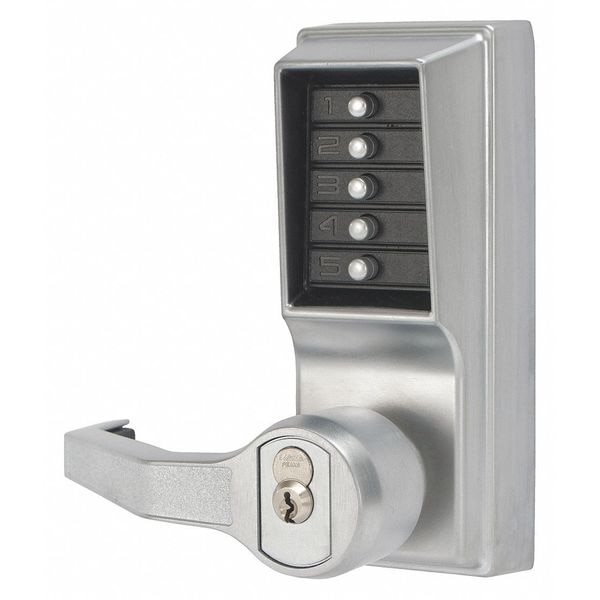

Mechanical Push Button Lockset, Satin Chrome, 1-3/8" to 2-1/4" For Door Thickness, 5 Number of Keys
| Item | Mechanical Push Button Lockset |
|---|---|
| For Door Thickness (In.) | 1-3/8" to 2-1/4" |
| Finish | Satin Chrome |
| Material | Zinc |
| For Use With | Schlage R/C |
| Number of Keys | 5 |
| ADA Compliant | Yes |
| Inside Height | 9 in |
| Standards | UL, Listed, cUL |
| Outside Width | 3-1/8 in |
| Handle Type | Lever |
| Key Override Options | LFIC Schlage core not included |
| Max. User Codes | 1 |
| Includes | Code Change Plug, Template |
| Hand | Left |
| Backset | 2 3/4 in |
| Outside Depth | 3-13/16 in |
| Inside Depth | 2-3/8 in |
| Outside Height | 7-3/8 in |
| Latch Length | 1/2 in |
| Inside Width | 3-1/4 in |
| Door Thickness | 1-3/8 to 2-1/4 in |
| Weather Resistant | Yes |
| Manufacturers Warranty Length | 3 yr |
| Electrical/Mechanical | Mechanical |
| Function | Entry with Key Override |
| Fire Rated | 3 hr |
| Keypad | 5 Button, Vandal Resistant |
| Series | L1000 |
| Case Material | Zinc |
| Overall Height | 9 in |
| Overall Width | 3-1/8 in |
| Type | Mechanical |
| Bolt Throw | 1/2 in |
| Operation Type | Push Button |
| Product Type | Mechanical Push Button Lockset |
| Max. Proximity Range | At Lock |
| Latch Front Size | 1/2 in |
| Operating Temp. Range | -31 Degrees to 151 Degrees F |
| Fire Rating | 3 hr |
| Lockset Handle Type | Lever |
| Includes Hardware | Hardware Included |
| Mortise/Cylindrical | Cylindrical |
| Overall Depth | 3-13/16 in |
| Includes Core | Core Not Included |
| User Codes - Maximum | 1 |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Hand Orientation | Left-Handed |
| Door Thickness - Maximum | 2-1/4 in |
| Lockset Type | Mechanical |
| Number of Keypad Buttons | 5 |
| Door Thickness - Minimum | 1-3/8 in |
| Lockset Function | Entrance |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
