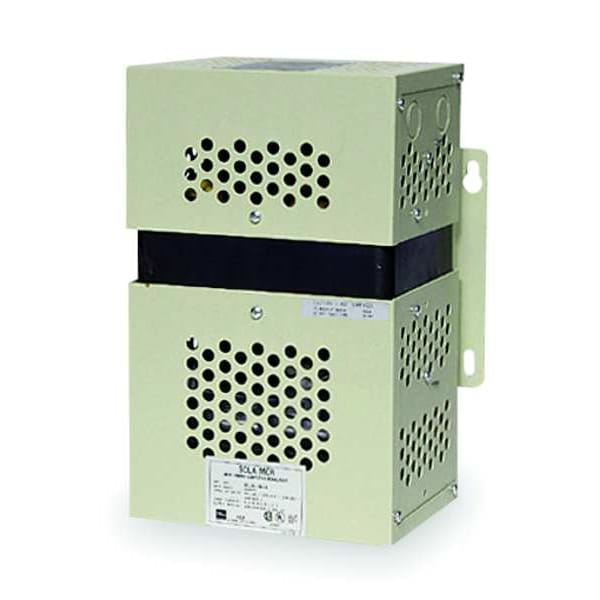

Power Conditioner, 0.5A @ 480V AC, 1A @ 240V AC, 2.1A @ 120V AC Max Amps, 120V Output Voltage
| Item | Power Conditioner |
|---|---|
| Max. Amps | 0.5A @ 480V AC, 1A @ 240V AC, 2.1A @ 120V AC |
| Input Voltage | 120/240/480V |
| Output Voltage | 120V |
| Power Rating | 250 VA |
| Output Watts | 250 W |
| Hardwired/Corded | Hardwired |
| Height | 11 in |
| Depth | 8 in |
| Width | 6 in |
| Phase | 1 |
| Voltage Regulation % | +/-1 |
| Number of Outlets | 0 |
| Standards | CSA C22.2 No. 66, RoHS, UL1012 |
| Mounting Type | Panel Mount |
| Overload Capability | Current limited at 1.65 times rated current |
| Operating Temperature | -20DegC to +50DegC |
| Hertz | 60 |
| Efficiency | At Full Load: Up to 92% |
| KVA Rating | 30 VA-7.5 kVA |
| Input Voltage Range | 120, 208, 240, 480 Vac |
| Overload Capacity | SDP-T: > 30 Vdc, but < 33 Vdc, auto recovery. SDP-LT: > 26 Vdc, but < 27.2 Vdc, auto recovery. SDP-RT: > 30 Vdc, but < 33 Vdc, auto recovery |
| Output Power | 25 to 100 W |
| UL Recognized Component, Haz. Loc. | Class I, Division 2, Groups A, B, C, D |
| Status Indicator | Green LED OK |
| Manufacturer Warranty | 10 yr (Limited) |
| Voltage Regulation | +/-1% |
| Operating Temperature - Minimum | -4 deg F |
| Housing Material | Galvanized Sheet Metal |
| Operating Temperature - Maximum | 122 deg F |
| Frequency | 60 Hz |
| Maximum Current | 2.1 A |
| Package Quantity | 1 |
