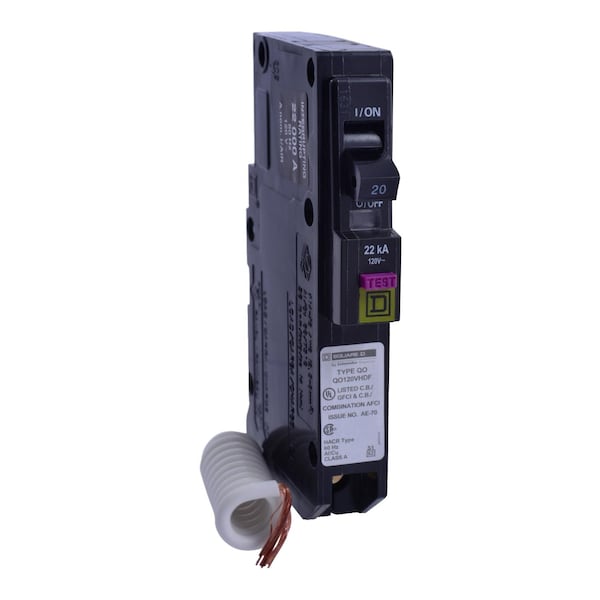

Circuit Breaker, QO Series, 20A, 1 Pole, 120V AC, 22kA at 120V AC
| Item | Circuit Breaker |
|---|---|
| Series | QO |
| Amps | 20A |
| Number of Poles | 1 |
| AC Voltage Rating | 120V AC |
| Circuit Breaker Type | Combination Arc Fault and Ground Fault Circuit Interrupter |
| Circuit Breaker Mounting Style | Plug In |
| Max. AIR Rating | 22kA at 120V AC |
| Terminal Connection | Pressure Plate |
| Width | 3/4 in |
| Depth | 2.91 in |
| Height | 4.76 in |
| DC Voltage Rating | Not Rated |
| Features | Mercury Free |
| Max. Wire Size | 8 AWG (Cu/Al) |
| Min. Wire Size | 14 AWG (Cu/Al) |
| Interrupt Rating | 22 kA at 120V AC |
| Application | HACR rated Applications |
| Standards | UL Listed, CSA |
| Package Quantity | 1 |
