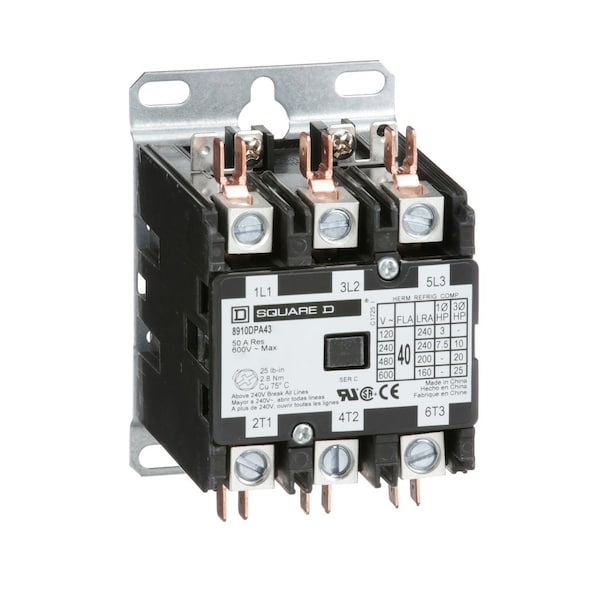

Contactor, Propósito Definido, 40A, 3 polos, 25HP a 575VCA, 3 fases, bobina de 550/600VCA 50/60Hz, abierto.
| Item | Definite Purpose Magnetic Contactor |
|---|---|
| Full Load Amps | 40 |
| Number of Poles | 3 |
| Full Load Amps-Inductive | 40 A |
| Coil Volts | 600VAC |
| Standards | UL Recognized, CSA |
| Locked Rotor Rated Current | 240 A 277 V AC, 200 A 460 V AC, 160 A 575 V AC |
| Line Rated Current | 40 A |
| [Ue] Rated Operational Voltage | 600 V AC |
| [Uc] Control Circuit Voltage | 550 V AC 50 Hz, 600 V AC 60 Hz |
| Pole Contact Composition | 3 NO |
| Maximum Horse Power Rating | 3-3 hp 115 V AC, 1 phase, 7.5-7.5 hp 230 V AC, 1 phase, 10-10 hp 230 V AC, 3 phase, 20-20 hp 460 V AC, 3 phase, 25-25 hp 575 V AC, 3 phase |
| Phase | 3 phase |
| Product or Component Type | Definite Purpose Contactor |
| Poles Description | 3P |
| Range of Product | DPA |
| Electrical Connection | Box lugs, Quick connect terminals |
| Control Circuit Voltage | 550 V AC 50 Hz; 600 V AC 60 Hz |
| Rated Operational Voltage | 600 V AC |
| Product Certifications | UL Recognized; CSA |
| Package Quantity | 1 |
