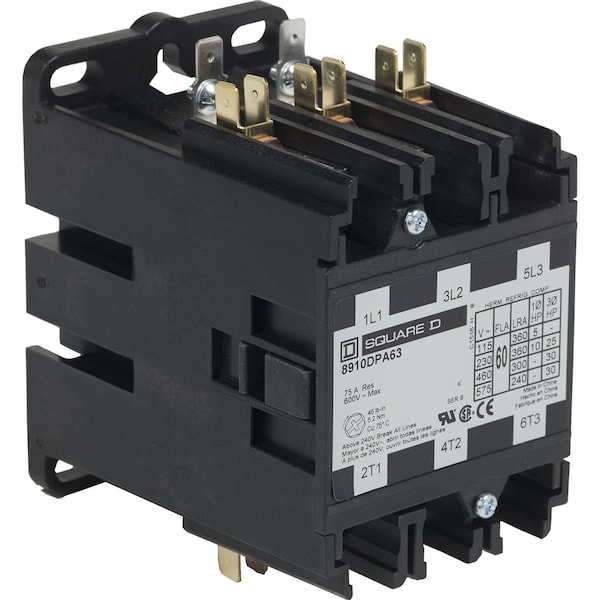

Contactador, Propósito Definido, 60A, 3 polos, 30 HP a 575 VCA, 3 fases, bobina de 200 VCA 50/60 Hz, abierto.
| Item | Contactor,Definite Purpose,60A,3 pole |
|---|---|
| Number of Poles | 3P |
| Full Load Amps-Inductive | 60 A |
| Standards | UL Recognized, CSA |
| Phase | 3 phase |
| [Uc] Control Circuit Voltage | 200 V AC 50/60 Hz |
| Range of Product | DPA |
| Pole Contact Composition | 3 NO |
| Line Rated Current | 60 A |
| Product or Component Type | Definite Purpose Contactor |
| Poles Description | 3P |
| Electrical Connection | box lugs, quick connect terminals |
| Maximum Horse Power Rating | 5-5 hp 115 V AC, 1 phase, 10-10 hp 230 V AC, 1 phase, 30-30 hp 460 V AC, 3 phase, 30-30 hp 575 V AC, 3 phase, 25-25 hp 230 V AC, 3 phase |
| Locked Rotor Rated Current | 360 A 277 V AC, 300 A 460 V AC, 240 A 575 V AC |
| [Ue] Rated Operational Voltage | 600 V AC |
| Package Quantity | 1 |
