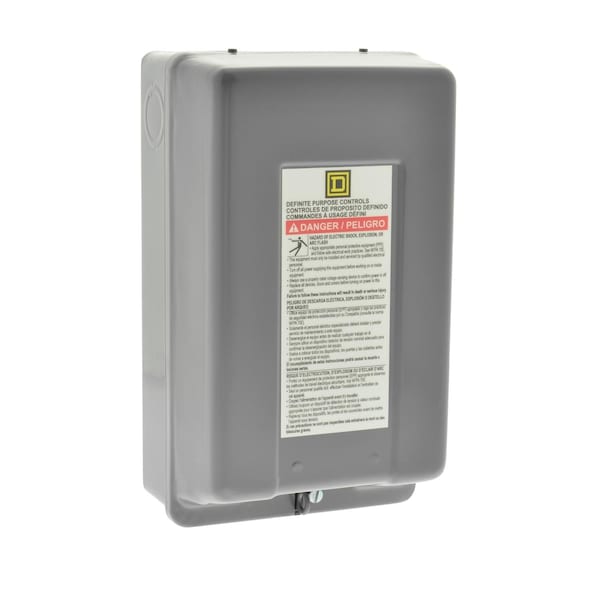

Contacto, propósito definido, 60A, 3 polos, 30HP a 575VCA, 3 fases, bobina de 110/120VCA 50/60Hz, NEMA 1.
| Item | Definite Purpose Magnetic Contactor |
|---|---|
| Number of Poles | 3 |
| Full Load Amps | 60 |
| Full Load Amps-Inductive | 60 A |
| Coil Volts | 600VAC |
| Height | 12.69 in |
| Width | 27.81 in |
| Depth | 6.31 in |
| Enclosure NEMA Rating | 1 |
| Enclosure Type | NEMA type 1 |
| Standards | UL Recognized || CSA |
| Phase | 3 phase |
| [Uc] Control Circuit Voltage | 120 V AC 60 Hz, 110 V AC 50 Hz |
| Maximum Horse Power Rating | 5-5 hp 115 V AC, 1 phase, 10-10 hp 230 V AC, 1 phase, 30-30 hp 460 V AC, 3 phase, 30-30 hp 575 V AC, 3 phase, 25-25 hp 230 V AC, 3 phase |
| Electrical Connection | box lugs, quick connect terminals |
| Product or Component Type | Definite Purpose Contactor |
| Range of Product | DPA |
| Pole Contact Composition | 3 NO |
| Poles Description | 3P |
| [Ue] Rated Operational Voltage | 600 V AC |
| Provided Equipment | enclosure |
| Locked Rotor Rated Current | 360 A 277 V AC, 300 A 460 V AC, 240 A 575 V AC |
| Package Quantity | 1 |
