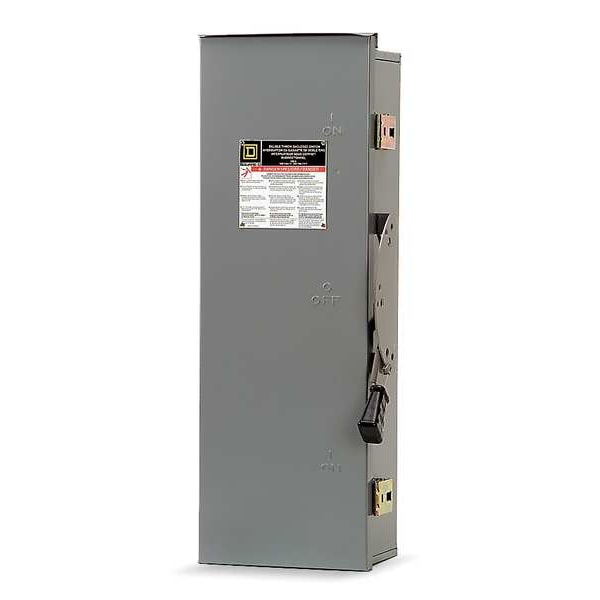

Interruptor de seguridad fusible, resistente, 600 V CA, 3 polos, 100 A, NEMA 3R
| Item | Safety Switch |
|---|---|
| Protection Method | Fusible |
| Duty | Heavy |
| Voltage | 600V AC |
| Phase | 3 |
| HP | 75 HP @ 600 V AC |
| NEMA Enclosure Type | 3R |
| IP Rating | 14 |
| Number of Wires | 3 |
| Number of Poles | 3 |
| Contact Form | 3PDT |
| Amps AC | 100 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Steel |
| Width | 8.1 in |
| For Use With | Class H, J, R, T Fuse |
| Height | 38 in |
| Depth | 6.6 in |
| Standards | UL listed |
| Fuse Kit (Class R) | Mfr. No. RFK10 |
| Fusible / Nonfusible | Fusible |
| Fuse Type | Class H, K, R or J |
| Neutral Assembly Included | No |
| Gauge/Conductor | 12 to 1/0 AWG (Aluminum), 14 to 1/0 AWG (Copper) |
| Features | Mercury Free, Toxic Heavy Metal Free |
| Weight | 21.09 kg |
| Mounting | Surface |
| Environment | Indoor, Outdoor |
| Horsepower @ 480V AC | 60 HP |
| Current Rating | 100 A |
| Horsepower @ 600V AC | 75 HP |
| Compatible with Manufacturer Model Number | RFK10 |
| NEMA Enclosure Rating | 3 |
| Housing Material | Steel |
| For Fuse Class | Class H, Class J, Class K, Class R |
| Mounting Style | Surface Mount |
| Compatible with Manufacturer Part Number | RFK10 |
| Compatible Manufacturer Part Number | RFK10 |
| Compatible with Manufacturer Model Number [NEW] | RFK10 |
| Compatible Manufacturer Model Number | RFK10 |
| For Use with Mfr. Model Number | RFK10 |
| Package Quantity | 1 |
