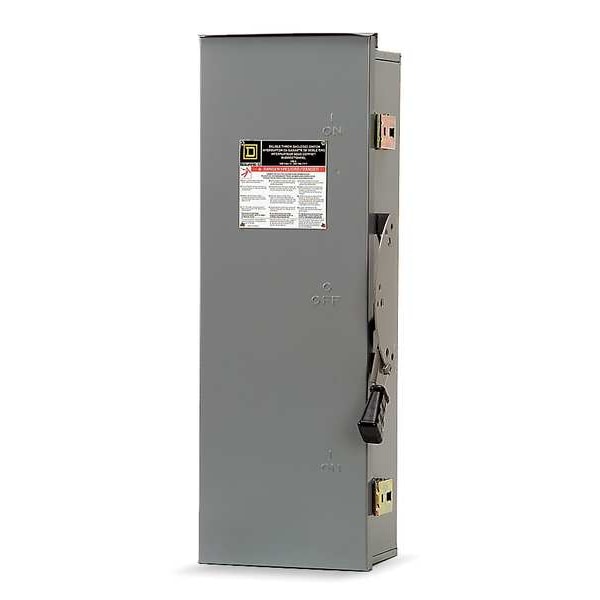

Interruptor de seguridad con fusible, resistente, 600V CA, 3PDT, 30 A, NEMA 3R
| Item | Safety Switch |
|---|---|
| Protection Method | Fusible |
| Duty | Heavy |
| Voltage | 600V AC |
| Phase | 3 |
| HP | 20 HP @ 600 V AC |
| NEMA Enclosure Type | 3R |
| IP Rating | 14 |
| Number of Wires | 3 |
| Number of Poles | 3 |
| Contact Form | 3PDT |
| Amps AC | 30 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Steel |
| Width | 11.8 in |
| Fusible / Nonfusible | Fusible |
| Fuse Kit (Class R) | Mfr. No. RFK06 |
| For Use With | Class H, J, R, T Fuse |
| Height | 38 in |
| Standards | UL listed |
| Depth | 6.6 in |
| Fuse Type | Class H, K, R or J |
| Neutral Assembly Included | No |
| Weight | 21.09 kg |
| Mounting | Surface |
| Gauge/Conductor | 12 to 2 AWG (Aluminum), 14 to 2 AWG (Copper) |
| Features | Mercury Free, Toxic Heavy Metal Free |
| For Fuse Class | Class H, Class J, Class K, Class R |
| Horsepower @ 480V AC | 15 HP |
| Housing Material | Steel |
| Horsepower @ 600V AC | 20 HP |
| Environment | Indoor, Outdoor |
| Mounting Style | Surface Mount |
| Horsepower @ 240V AC | 40 HP |
| NEMA Enclosure Rating | 3 |
| Compatible with Manufacturer Model Number | RFK06 |
| Current Rating | 30 A |
| Compatible Manufacturer Part Number | RFK06 |
| Compatible with Manufacturer Part Number | RFK06 |
| Compatible with Manufacturer Model Number [NEW] | RFK06 |
| Compatible Manufacturer Model Number | RFK06 |
| For Use with Mfr. Model Number | RFK06 |
| Voltage Rating | 600 V AC, 600 V DC |
| Duty Rating | Heavy duty |
| Tightening Torque | 35 lbf.in (3.95 N.m) 0.00 to 0.01 in² (2.08 to 5.26 mm²) (AWG 14 to AWG 10); 40 lbf.in (4.52 N.m) 0.01 in² (8.37 mm²) (AWG 8); 45 lbf.in (5.08 N.m) 0.02 to 0.03 in² (13.3 to 21.15 mm²) (AWG 6 to AWG 4); 50 lbf.in (5.65 N.m) 0.04 to 0.05 in² (26.67 to 33.62 mm²) (AWG 3 to AWG 2) |
| Disconnect Type | Fusible disconnect |
| Wire Size | AWG 12 to AWG 2 aluminium; AWG 14 to AWG 2 copper |
| Motor Power HP | 5 hp at 480 V AC 50-60 Hz for 3 phase motors; 15 hp at 480 V AC 50-60 Hz for 3 phase motors; 7.5 hp at 600 V AC 50-60 Hz for 1 phase motors; 20 hp at 600 V AC 50-60 Hz for 3 phase motors; 5 hp at 250 V DC; 15 hp at 600 V DC |
| Enclosure Rating | NEMA 3 |
| Short-Circuit Current | 10 kA H or K; 200 kA R or J |
| Factory Installed Neutral | None |
| Package Quantity | 1 |
